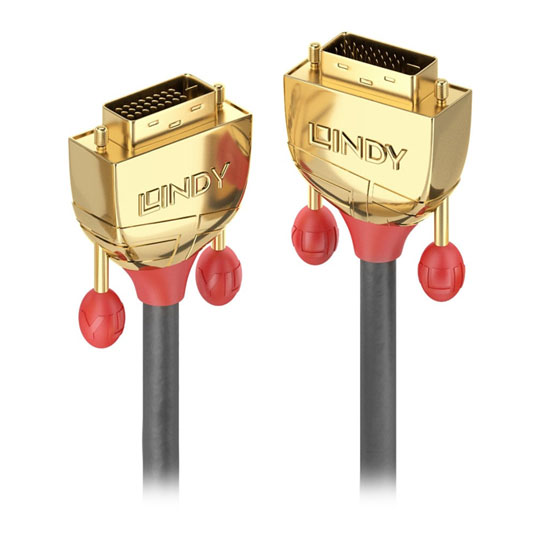

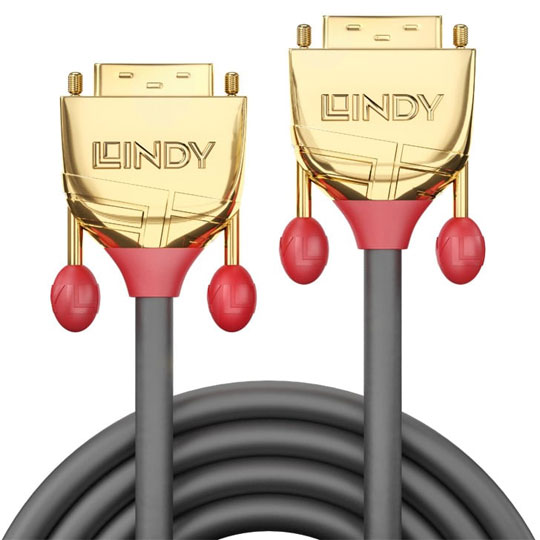

Lindy Gold DVI-D Dual Link Cable - 10m
10m Lindy Gold DVI-D Dual Link Gold Line Cable, DVI-D (Male) to DVI-D (Male), Grey
Scan code:
LN86881
Manufacturer code:
£59.99
In stock
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
- By DPD On 16th Aug 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
From the Lines cable connectivity concept developed by Lindy, Gold Line DVI-D Dual Link cables are the no compromise, high performance connection solution for use in the most demanding professional environments.
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
For complete signal integrity, Gold Line DVI-D Dual Link cables feature 24K gold plated contacts, triple shielding with 100% aluminium mylar wrap and an 85% tinned copper braid.
Gold Line DVI-D Dual Link cables support DVI resolutions up to [email protected] including HD resolutions up to 1080p.
Specification
Connectors:
Connector A: DVI-D Male (Dual Link)
Connector B: DVI-D Male (Dual Link)
Housing Material: 24K Gold Plated Metal
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15µm
Dimensions, DVI Connector (approx.) WxDxH: 39.5x16.5x44.5mm (1.55x0.65x1.73in)
Packaging Type: Polybag
Warranty (Years): 25
Certificated: RoHS, REACH, UL
Features • Advanced, high performance DVI-D Dual Link cable with gold design connector.
• Supports DVI resolutions up to [email protected] and HD resolutions up to 1080p.
• Low attenuation design with 24K gold plated contacts for signal integrity and long distance transmission.
• Metal connector greatly reduces interference and provides increased EMC shielding without the need for a ferrite core.
• 25 year warranty.
Specification
• Connectors:
- Connector A: DVI-D Male (Dual Link)
- Connector B: DVI-D Male (Dual Link)
• Housing Material: 24K Gold Plated Metal
• Connector Plating: 24K Gold 3µm
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 15µm
• Dimensions, DVI Connector (approx.) WxDxH: 39.5x16.5x44.5mm (1.55x0.65x1.73in)
Cable Construction
• Length: 10m (32.81ft)
• Standard: DVI-D Dual Link
• Colour: Grey
• Type: Round
• Jack Diameter: 8.6mm (0.34in)
• Jacket Material:: PVC
• Conductor Material: OFC Copper
• Conductor Gauge: 28AWG
• Shielding: Copper Braid 85%
Specifications
• Supported Bandwidth: 9.9 Gbps
• Maximum Resolution: [email protected]
• Nominal Attenuation: 1 - 825Mhz < 8db
• Minimum Band Radius: 120mm (4.72in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Miscellaneous
• Packaging Type: Polybag
• Warranty (Years): 25
• Certificated: RoHS, REACH, UL
These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.
For complete signal integrity, Gold Line DVI-D Dual Link cables feature 24K gold plated contacts, triple shielding with 100% aluminium mylar wrap and an 85% tinned copper braid.
Gold Line DVI-D Dual Link cables support DVI resolutions up to [email protected] including HD resolutions up to 1080p.
Specification
Connectors:
Connector A: DVI-D Male (Dual Link)
Connector B: DVI-D Male (Dual Link)
Housing Material: 24K Gold Plated Metal
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15µm
Dimensions, DVI Connector (approx.) WxDxH: 39.5x16.5x44.5mm (1.55x0.65x1.73in)
Packaging Type: Polybag
Warranty (Years): 25
Certificated: RoHS, REACH, UL
Features • Advanced, high performance DVI-D Dual Link cable with gold design connector.
• Supports DVI resolutions up to [email protected] and HD resolutions up to 1080p.
• Low attenuation design with 24K gold plated contacts for signal integrity and long distance transmission.
• Metal connector greatly reduces interference and provides increased EMC shielding without the need for a ferrite core.
• 25 year warranty.
Specification
• Connectors:
- Connector A: DVI-D Male (Dual Link)
- Connector B: DVI-D Male (Dual Link)
• Housing Material: 24K Gold Plated Metal
• Connector Plating: 24K Gold 3µm
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 15µm
• Dimensions, DVI Connector (approx.) WxDxH: 39.5x16.5x44.5mm (1.55x0.65x1.73in)
Cable Construction
• Length: 10m (32.81ft)
• Standard: DVI-D Dual Link
• Colour: Grey
• Type: Round
• Jack Diameter: 8.6mm (0.34in)
• Jacket Material:: PVC
• Conductor Material: OFC Copper
• Conductor Gauge: 28AWG
• Shielding: Copper Braid 85%
Specifications
• Supported Bandwidth: 9.9 Gbps
• Maximum Resolution: [email protected]
• Nominal Attenuation: 1 - 825Mhz < 8db
• Minimum Band Radius: 120mm (4.72in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Miscellaneous
• Packaging Type: Polybag
• Warranty (Years): 25
• Certificated: RoHS, REACH, UL
