LD Systems VIBZ 6 D Mixing Console
LD Systems VIBZ 6 D 6-Channel Mixing Console with DFX, 3-Band EQ, 2 Mic Pres, 48V Phantom Power
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
6-Channel Mixing Console with DFX
LD Systems - VIBZ 6 D

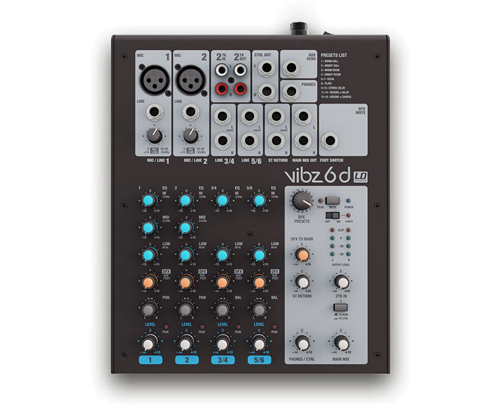

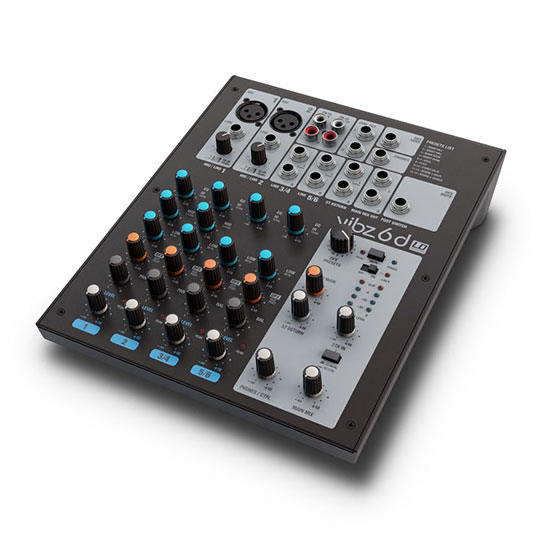

powerful & compact 6-channel mixerThe VIBZ 6 is a compact 6-channel mixer which is perfectly suited to entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible, and an effects loop.
The master section of the VIBZ 6 is equipped with adjustable monitor outputs, a headphone jack and 16 digital effects presets, which are foot-switchable. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.
A foot switch for the effects section and an adapter for mounting the VIBZ 6 on microphone stands are available as accessories.
at a glance
• 6-channel mixer with 16 digital effects
• 2 mono-compatible stereo line channels with 2-band EQ
• 2 microphone channels with 3-band EQ
• Master, Monitor and headphone outputs
• Securely fastening external power supply
LD Systems - VIBZ 6 D
6 channel Mixing Console with DFX
The Tech Spec
| Features | Specification | Number of Channels (Input) | 6 |
|---|---|
| Mono Mic/Line Input Channels | 2 |
| Mono Mic/Line Input Connections | XLR-F, 1/4" TRS |
| Mono Mic Input Type | Balanced |
| Mic Frequency Response | 10 Hz to 45 kHz |
| Mic Amplification Range | 50 dB |
| Channel Crosstalk | 62 dB |
| Mic THD | 0.0058% |
| Mic Input Impedance | 4 kOhms |
| Mic SNR | 113 dB |
| Mono Line Input Type | Balanced |
| Line Amplification Range | 50 dB |
| Line THD | 0.0045% |
| Line Impedance | 21 kOhms |
| Line SNR | 116 dB |
| Mono Channel EQ Range | Treble: ±15 dB @ 12 kHz Mids: ±15 dB @ 2.5 kHz Bass: ±15 dB @ 80 Hz |
| Phantom 48 VDC Power | Yes |
| Channel Controls | Gain, EQ Hi, EQ Mid, EQ Low, DFX, Pan, Level |
| Stereo Line Input Channels | 2 |
| Stereo Line Input Connections | 2 x 1/4" / 6.5 mm Stereo Jack |
| Stereo Line Input Type | Unbalanced |
| Stereo Line Frequency Response | 10 Hz to 45 kHz |
| Stereo Line Amplification Range | 50 dB |
| Channel Crosstalk | 62 dB |
| Stereo Line THD | 0.0045% |
| Stereo Line Impedance | 3.7 kOhms |
| Stereo Line SNR | 116 dB |
| Stereo Channel EQ Ran | Treble: ±15 dB @ 12 kHz Bass: ±15 dB @ 80 Hz |
| Channel Controls | EQ Hi, EQ Low, DFX, Bal, Level |
| # Of AUX Sends Per Channel | 1 |
| AUX Sends Connections | Unbalanced 1/4" / 6.5 mm TS Stereo Jack |
| Stereo AUX Return Channels | 1 |
| Stereo AUX Return Connections | 2 x Unbalanced 1/4" / 6.5 mm TS Stereo Jack |
| Stereo 2-Track Output Channels | 1 |
| Stereo 2-Track Output Connection | 1 x Stereo RCA |
| Headphone Connections | 1/4" / 6.5 mm Stereo Jack |
| Headphone Impedance | 30 Ohms |
| Digital Effects | Yes |
| Number of Presets | 16 |
| Main Section Controls | DFX Presets, DFX Mute, DFX to Main, ST Return, 2 TK In, 2 TK In to Main/to CTRL, Phones/CTRL, Phantom Power +48V, Main Mix, Power |
| Power Supply | 18 VAC, 1 A, External PSU (Included) |
| Dimensions | 10.2 x 8.2 x 2.6" / 260 x 209 x 68 mm |
| Weight | 3.1 lb / 1.4 |
