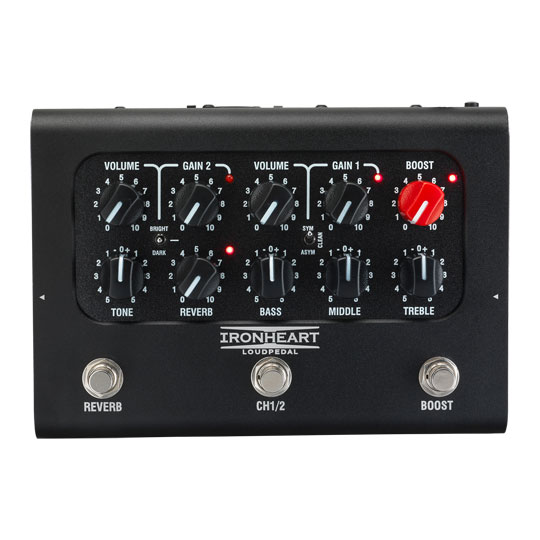

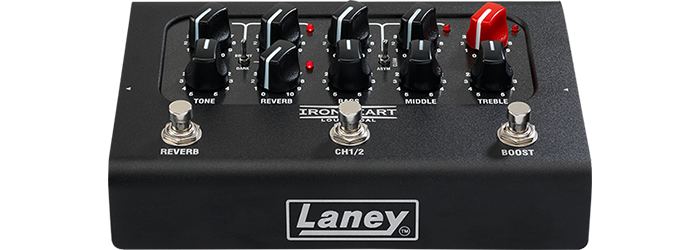

Laney - BCCLOUDPEDAL-IMM, 60W Guitar Amplifier Pedal
Laney Black Country Customs - IRONHEART LOUDPEDAL - 60W - Martin Miller
- SCANPROTECT Protect against installation damage for 28 days. More info
60W Guitar Amplifier Pedal
Laney - BCCLOUDPEDAL-IMM
Ironheart Martin Miller (IMM) LOUDPEDALThe Laney Ironheart Martin Miller (IMM) LOUDPEDAL is a 60-watt 2 channel IRONHEART amplifier, with BOOST, Reverb and powerful EQ settings, designed in collaboration to meet the needs of one of the most discerning guitar players in the World. The formidable Martin Miller has been a Laney fan since his early teens – growing up to become one of their top artists. Also an Ibanez signature artist, Martin is one of the most successful Jam Track Central Artists, with many of his tuition packages being top sellers.
In recent years, Martins Live Session videos for his Youtube channel with the Martin Miller Session Band have taken him to new heights of stardom, A-list guests, nearly a million subscribers and huge viewing numbers on all of his content. Martin has always been a fan of the IRONHEART range, their versatility and dynamics allow him to sound great whether he’s playing traditional Jazz, or a furious Metal.
Beautifully crafted at the Laney UK workshop – Black Country Customs - the IRONHEART LOUDPEDAL is ingeniously engineered to reproduce the renowned IRONHEART tone in a compact, analogue pedal amp format. Featuring two channels and a robust 60-watt power output, this amplifier incorporates dynamic GAIN switching, captivating reverb, and a BOOST function. Developed in partnership with Martin Miller, whose ongoing involvement in refining the design has been instrumental, the IRONHEART LOUDPEDAL ensures the delivery of exceptionally expressive and sonically lush IRONHEART tones in a conveniently pedalboard-friendly package.
at a glance
• 60W RMS High Power
• Two Independent Channels with footswitchable control
• Replicates the Tone and feel of the BCC-IRONHEART tube series
• GAIN 2 channel with Bright, Natural and Dark voicing options
• Built in Footswitchable Pre-Boost with level
• 3 Band Passive Tone Stack and Tone Control
• Digital Reverb with footswitchable control
• LA·IR High Quality Digital IR emulated balanced XLR Out
Find Your Sound
ReverbDigital Reverb with footswitchable control based around the Black Country Customs Secret Path “Spring” algorithm.
GAIN switchingON channel 1 the toggle switch allows you to determine the gain characteristics of the channel. So the player can select SYMETRICAL/ CLEAN /ASYMETRICAL clipping characteristics. Symmetric clipping results in a sound that is compressed, with more sustain and distortion. Asymmetrical results in a more open distortion with more clarity and less compression. These effects are more pronounced the higher the level of gain you have dialled in. On channel 2 The EQ switches effect the tonal character of the channel allowing you to select BRIGHT/FLAT/DARK EQ setting for each channel.
BoostBuilt in Footswitchable Pre-Boost with level. Based on the acclaimed Black Country Customs STEELPARK boost circuit, a fan favourite.

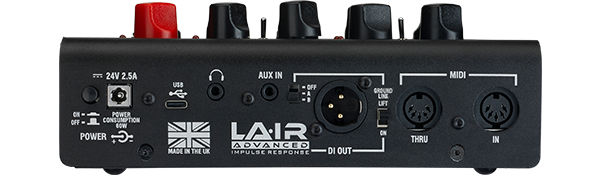

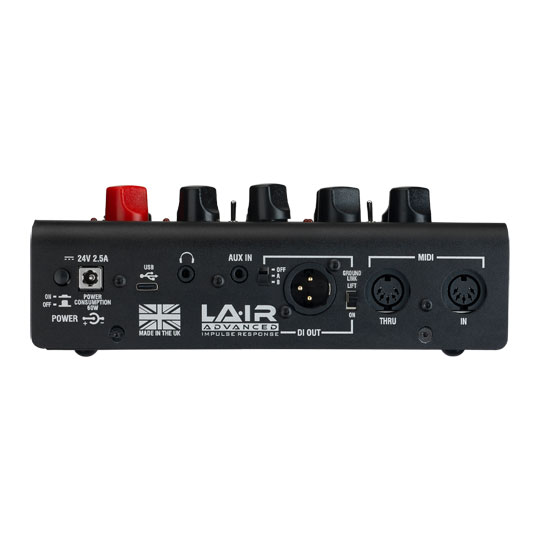

Versatile I/O
USBUSB-C provides latency free Audio Out to your preferred DAW. Additionally providing access to the LA.IR App. The app allows ultimate control over the Impulse Responses in the amp.
Aux/HeadphonesUse the Aux/Headphones output to run backing tracks or practice silently.
LA.IRThe UK-Built LOUDPEDALs feature Laney's advanced Impulse Response technology
MIDIAll footswitchable features on the BCCLOUDPEDALS can be switched remotely via MIDI CC numbers, so it will interface effortlessly with your existing controller set up.
Laney Black Country Customs LOUDPEDALS feat Tom Quayle and Martin Miller
The Tech Spec
| Features | Specification | Type | Pedal Board Guitar Amplifier |
|---|---|
| Input Impedance | 1MΩ |
| Amplifier Power | 60W RMS |
| Channels | Clean and Drive (Footswitchable) |
| EQ | Bass, Middle Treble (Passive tone stack) Overall Tone Control, plus Bright switch (Clean Channel) and Tone character Switch (Drive Channel) |
| Effects | Digital Springline Reverb (Footwitchable),External FX Loop |

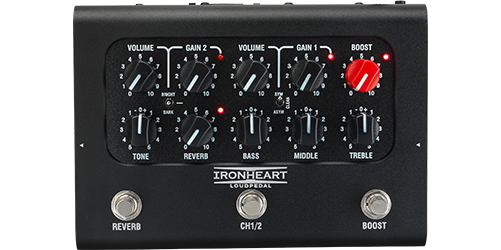

| Controls | Pre-Boost, Clean Volume, Clean Bright Switch, Channel Switch, Drive Gain, Drive Volume, Drive Tone Character (Normal, Bright, Dark), Bass, Middle, Treble, Reverb |
| Indicators | LEDs for Boost, Channel 1, Channel 2, and Reverb |
| Inputs | 6.3mm (1/4") Mono Instrument Input Jack, 6,3mm FX Return jack, 3.5mm stereo aux in jack |
| Outputs | 6.3mm Transformer Isolated FX Send (Doubles as Line Out), 3.5mm stereo headphone jack, Balanced Male XLR DI out with LA·IR Speaker Emulated Digital Impulse Response with high quality 1x12 and 4x12 options. |
| Other | USB C for Class compliant audio streaming @48kHz (Emulated and unemulated main out) and loading of custom IR's |
| Power Supply | Regulated 24V 2.5A 60W DC PSU Included: Centre Positive, 2.1 x 5.5 x 12mm connector type |
| Typical Power Consumption | 60W |
| Dimensions (HWD) | 67 x 199 x 143mm 2.6" x 7.8" x 5.6" |
| Weight | 1.7Kg 3.7 lbs |
