KSR EX5 MIDI Control Interface
KSR - EX5 MIDI Control Interface, 5x Isolated TRS Outputs, 2 Contacts Each
Email me when the availability or price changes
Finance this product
- From £17.13 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
MIDI Control Interface
KSR - EX5
Meet the EX5!You may have seen that little 1/8″ jack on KSR's pedals with the label “Ext. Control Interface”. This was added to allow for control of the pedals using an external unit, such as a switcher. With the intention of offering a product to utilize this port all along, KSR have introduced the EX5.
Clever and compact the EX5 also controls non-MIDI KSR amps! With quick and easy plug ‘n play, you can operate the Ares, Juno, and Orthos, plus all KSR pedals. The EX5 is appropriately named as it has 5 external control outputs, each an isolated TRS connection with two independent contacts.
at a glance
• Compact MIDI Control Interface

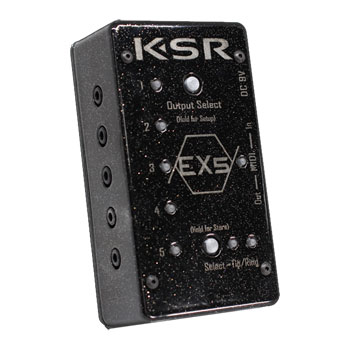

• 5x isolated TRS outputs, 2 contacts each
• Latching, positive pulse, or negative pulse configuration for each output
• Phantom power possible via MIDI connection

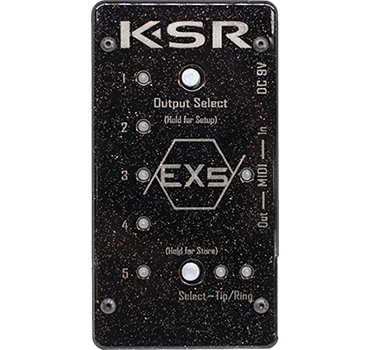

• Simple 2 button interface for programming
• MIDI CC for direct control of each output
• MIDI PC for storage of patches
KSR EX5 Walk Through
The Tech Spec
| Features | Specification | Controls | Select Output, Select T/R |
|---|---|

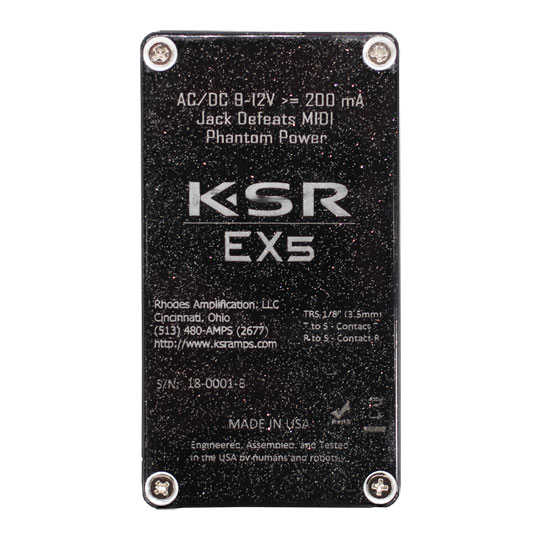

| Power | DC 9V, >= 200 mA via jack or MIDI phantom power |
| Size | 4.37″ x 2.37″ x 1.22″ |
