Korg - Pitchblack X Chromatic Pedal Tuner

Korg - Pitchblack X Chromatic Pedal Tuner with Four Meter Display Modes

Thumbnail 1 : Korg - Pitchblack X Chromatic Pedal Tuner Thumbnail 2 : Korg - Pitchblack X Chromatic Pedal Tuner Thumbnail 3 : Korg - Pitchblack X Chromatic Pedal Tuner
Scan code: LN129226 Manufacturer code: PB-X
£89.99Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Chromatic Pedal Tuner
Korg - Pitchblack X

Korg Pitchblack X

Next-generation tuningThe Korg Pitchblack X is not just a true bypass pedal that outputs the sound exactly as it went in, but now features a built-in ULTRA BUFFER. This is important as most electric guitars use passive pickups with a high impedance output. When using a cable you get a loss of tone often from high frequencies, after about 6 m/18 feet this problem gets worse the longer your cable is. A buffer increases the signal over long cables to avoid loss of tone, keeping it clean and clear, even when your pedal is off.

The ULTRA BUFFER improves the sound quality in bypass mode, so that you can still maintain audio quality even when using a long cable to connect to the tuner, or when inserting the tuner into a large effects board. On the Pitchblack X, you can switch between true bypass and the ULTRA BUFFER, to set it to your taste and performance environment.

Amazing Features • Allows switching between true bypass and the newly-developed ULTRA BUFFER
• Meter LED also offers bright mode settings for high visibility
• Ultra-high tuning accuracy down to ±0.1 cents
• Runs on battery power or optional AC
• Built-in “just-right tuning” display
• Four meter display modes

Four Meter Display Modes

Korg Pitchblack X

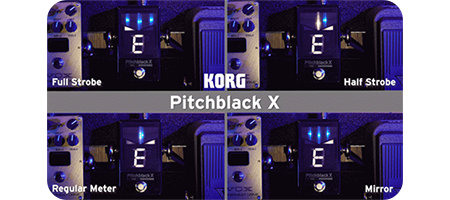

Easy VisibilityChoose from four types of meter display to suit your requirements. Other than the usual “Regular” mode, you can use “Strobe” and “Half Strobe” mode to indicate changes in pitch by the direction and speed that the meter is flowing in to distinguish even the finest differences in pitch; and you can select “Mirror” mode to see two LEDs on the left and right crossing together towards the center as you tune your instrument.

Even More Powerful & Easy To Use

Korg Pitchblack X

bright mode for high visibilityTo go with the enlarged display, more meter LEDs have been added for improved visibility. The bright mode (brightness) can be set at one of two levels, so that you can be sure to see the tuner display even better in situations where visibility is difficult, such as brightly lit stages and bright outdoor environments.

Korg Pitchblack X

Ultra-high tuning accuracyThe Pitchblack X provides highly precise and accurate tuning within a precision of ±0.1 cents when in Strobe mode,making it perfect for situations where the tuning must be absolutely right whether performing or recording.

Korg Pitchblack X

“just-right tuning” displayThe Pitchblack X features a new “just-right tuning” display function, which makes the triangular LEDs on both sides blink when the tuning is correct, making tuning a stress-free task.

Korg Pitchblack X

Sturdy housing & battery poweredThe Pitchblack X is enclosed in a robust aluminum case with a strong scratch-resistant coating. It works on 9 V batteries, perfect for players who don’t carry around an effects board, there is also an optional AC adaptor if required.

The NEW Pitchblack X Tuner Series

The Tech Spec

Features Specification
Scale 12 note equal temperament
Detection Range E0 (20.60Hz)~C8(4,186Hz)
Calibration Range A4=436〜445Hz(1Hz steps)
Detection Accuracy +/- 0.1 cent (display mode: Strobe)
Input Impedance 1 M-ohm (tuner on)
Display Modes Regular, Strobe, Half-strobe, Mirror

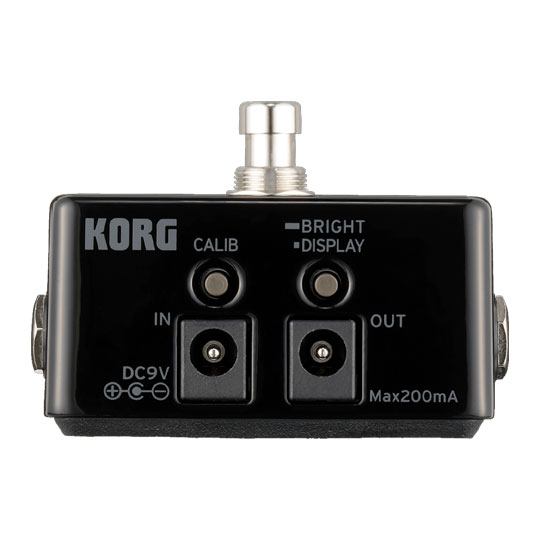

Connectors INPUT (mono 1/4” jack), BYPASS (mono 1/4” jack), DC 9V IN, DC 9V OUT
Power Supply 9V type battery(6LF22/6LR61/6F22)×1 or AC adaptor (9V)
Battery Life Approximately 24 hours(6LF22/6LR61, A4 continuous input, tuner on, display mode: Regular mode) / Approximately 5 hours(6F22, A4 continuous input, tuner on, display mode: Regular mode)
Power Consumption Maximum 28 mA
Included Items Notices, Rubber feet, 9V battery x 1
Accessories AC adaptor (9V)
Dimensions (W x D x H) 69 x 110 x 49 mm (including protrusions)
Weight 248 g
Specifications
Voltage 9 Volts
Current 28 mA
Battery Compartment Yes
Output Channels Mono
Dimensions 69 x 49 x 110 mm (W x H x L)
Passive Pedal No
Impedance
Additional Information
Scan Code LN129226
Model Number PB-X
