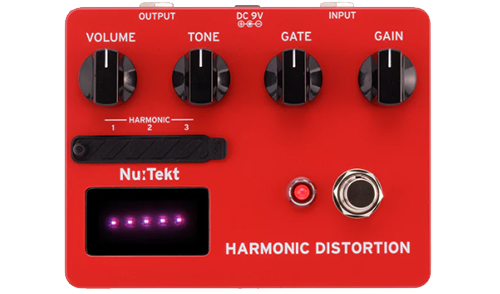

Korg Nu-Tekt HD-S Harmonic Distortion Pedal Build-It-Yourself Kit
Korg - Nu-Tekt HD-S Harmonic Distortion Pedal Kit
Email me when the availability or price changes
Build-It-Yourself Pedal Kit
Korg NuTekt - HD-S Harmonic Distortion

three different distortion circuits!Created by legendary product visionary: Fumio Mieda, the Nu:Tekt HD-S is a build-it-yourself pedal that combines three different distortion circuits to deliver never-before heard harmonic distortion.
Make new and as-yet undiscovered sounds – from traditional fuzz, to out-of-this world distorted sounds - by mixing the different distortion circuits. A wide range of sonic possibilities means you can use HD-S with guitars, bass guitars, synths, and more – anywhere you’re looking for new and unique sounds.
One of the hallmarks of the Nu:Tekt series is that they’re assembled by you! The HD-S kit doesn’t require soldering, and the necessary tools are included – making it easy to have the enjoyment and satisfaction of creating your own sound, from scratch.
at a glance
• DIY Harmonic Distortion Kit
The Power Of Three
exclusive patent-pending circuit designThe HD-S reimagines the distortion pedal, with modulation and filter-like control over your sound. In addition to four control knobs on the panel, you can use three additional trimmer knobs to adjust the balance between each of the distortion circuits for sonic results as tame or as wild as you can imagine.
Easy assemblyAssemble the HD-S with ease, just like a model kit - no soldering required. All necessary tools are included, along with a circuit diagram in the owner’s manual. Perfect for those who love building their own effect units with top-notch performance and sound.
The brainchild of Funio MiedaFumio Mieda is a legend of the electronic music world.
After creating the Uni-Vibe (probably most famously used by Jimi Hendrix) Mieda-san was employed by Korg Founder Tsutomu Katoh in 1976, and has been responsible for countless innovations since.
In his own words: “As of 2023, sixty-one years have passed since the first compact effects unit, the Maestro Fuzz-Tone, was released. Even nowadays, distortion-based effects including overdrive and distortion are the mainstay for guitar effects units, and the vast majority of these effects units are simply rehashing the sounds of the past. For this reason, we’ve developed a new kind of distortion based on harmonic synthesis that covers both traditional and all new sounds.”
Overview of the Nu:Tekt HD-S Effect Pedal Kit

The Tech Spec
Features | Specification | Vacuum tube | Nutube.6P1 |
---|---|
Inputs | Mono 1/4” jack |
Outputs | Mono 1/4” jack |
Power | 9v battery, or DC9V AC adapter (sold separately) |
Battery life | Approx. 10 hours |
Consumption | 45mA |
Dimensions | 122 x 96 x 55mm |
Weight | 340g (without battery) |
