Kinefinity - 'KineMON-5U2 Ultra-Bright Monitor'

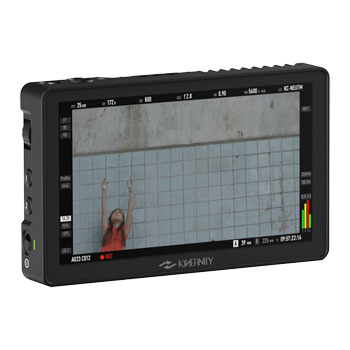

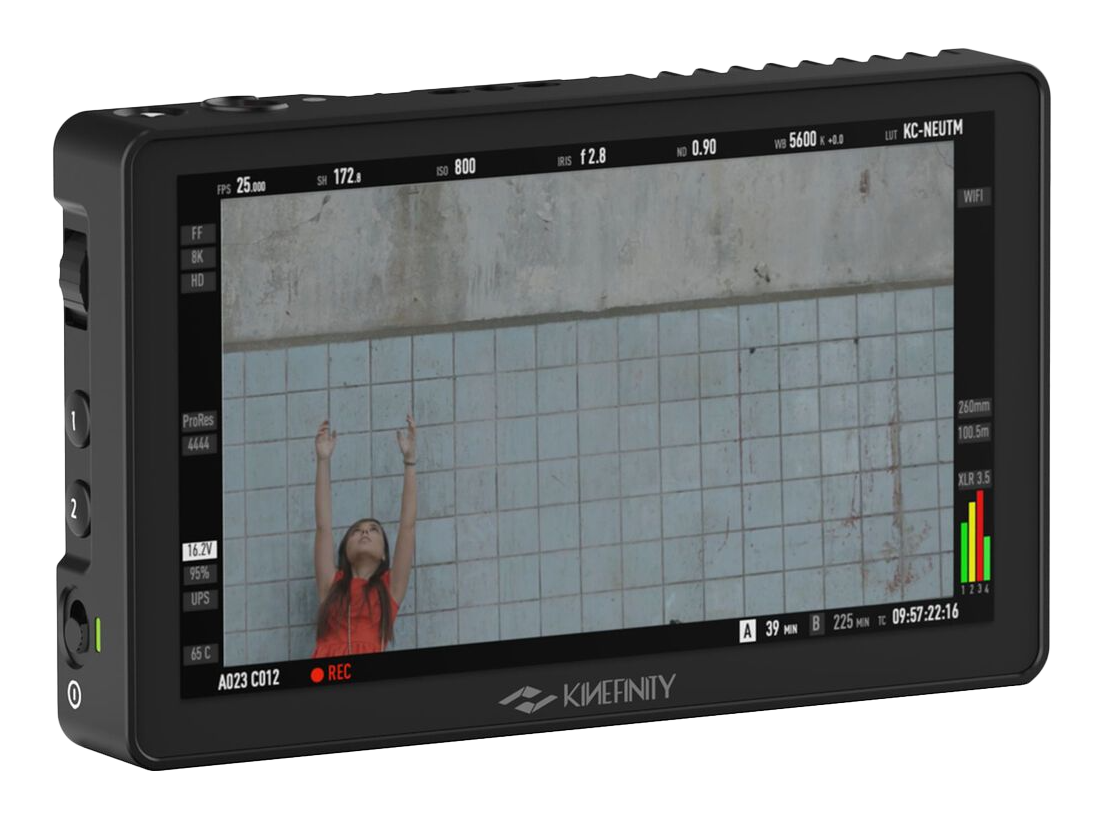

ultra-bright 5″ Touchscreen monitorIntroducing the Kinefinity KineMON-5U2 Ultra-Bright Monitor, designed exclusively for Kinefinity Cinema Cameras. With its 1080p IPS LCD Retina display, AR and Anti-fingerprint coatings, and 2000nit brightness, this monitor offers unparalleled daylight visibility. It features a touch screen and a dedicated menu-triggering function button, allowing convenient adjustments of camera parameters. The monitor's aluminium alloy body, high screen ratio, and Gorilla glass protection ensure durability. With just one Kine Video Cord, it receives power and video signal from Kinefinity Cinema Cameras. Step into a new era of cinematic excellence with the KineMON-5U2 Ultra-Bright Monitor.
New Touch Screen
Simple OperationThe ultra-bright 5-inch monitor KineMON-5U2 supports the global touch screen. You can quickly adjust eight parameters such as FPS, shutter, ISO, etc. by simply clicking the selected area of the monitor interface with your hand. You can adjust all parameters of the camera combined with the MENU, Playback and Wheel buttons. And new functions of monitors buttons includes following core functions which are used most frequently:

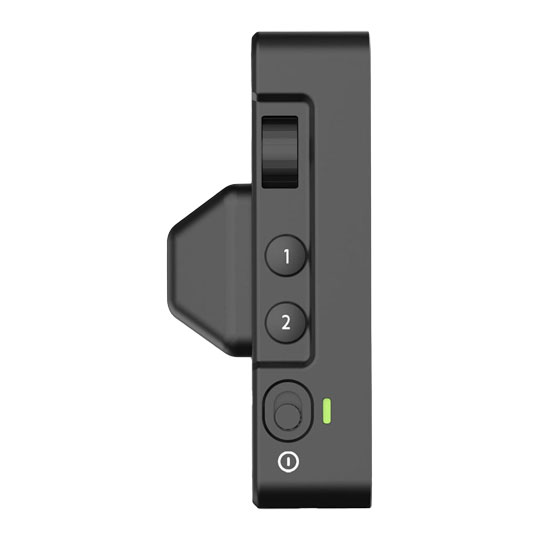

Turn on/off monitorsPush up or down Power button at the side to turn on or off the monitor quickly. There is also an LED indicator for status of monitor.
Live View modePress Button 1 to turn on/off the RGB histogram; press Button 2 to zoom in on the viewfinder screen; press the Wheel to display the waveform diagram.
Playback modepress Button 1/2 to switch the previous/next clips; press the Wheel to display the waveform; rotate the Wheel to fast forward and fast reverse the clip.
False colour on input videoPress Button 1 for three seconds to show false colour which IRE based on Arri False Colour scale.
Peaking Focus With Red LinePress Button 2 for three seconds to show peaking or not, and enable setting of sensitivity of peaking function.
Tuning brightness of monitor or set rotation of monitorPress Wheel for three seconds.
Whole-New DirectClear Platform
HD videoKineMON-5U2 processes HD video on a whole-new DirectClear platform. DirectClear adopts powerful FPGA with low power consumption as basic framework to optimize image processing specially. Based on DirectClear platform, KineMON-7U2, whole-new Kinefinity EVF and 5 inch ultra-bright KineMON-5U2 advances other traditional monitors especially working with Kinefinity camera. It features:
Ultra-low LatencyMonitoring latency is reduced 50% compared to traditional field monitors; especially with MAVO Edge/MAVO/TERRA 4K in KineOS6.3, the latency of whole camera system is relatively low to control dynamic image accurately.
Fast ResponseFast reponse to boot up and power off, nearly no delay, while traditional monitor often needs 5~10 sec to boot up.
Low Power ConsumptionWith the platform, the power consumption of monitor are largely reduced and KineMON-5U2 is still no more than 6W when at its full brightness, while the traditional one may be up to 18W, thus the monitor is capable to keep in low temperature and runs stably without active cooling.
True and Natural Colour As a monitoring device, the KineMON-5U adopts more natural rendering to restore details and natural colours of the image instead of additional processing like deliberate sharpness, increasing saturation, etc.
Durability
Simple ConnectionRe-designed monitor plus full lamination screen with tempered glass. With full tempered glass in front of the monitor, the screen gets better protection with high screen ratio. The case is made of rugged milled aluminum for better heat dissipation. Its surface process is more exquisite than old version KineMON-5L.

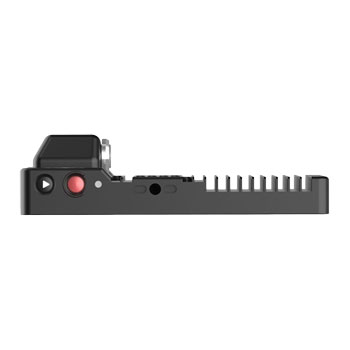

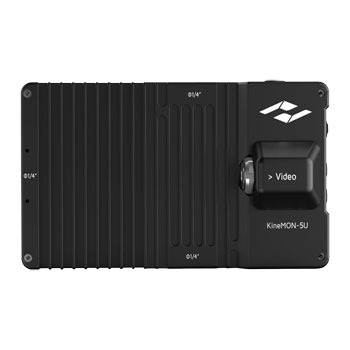

KineMON-5U2 has a standard 1/4″ threaded hole and two pin-holes at the bottom to fasten itself firmly to camera in any case, while most other monitors have only one 1/4″ threaded hole. Using appropriate accessories, KineMON-5U meets the different needs in the typical scenarios:
KineMON Swivel MountAllow the monitor to be mounted directly to the front of the camera body and top plate of TERRA/MAVO KineKIT.
KineMON Coldshoe MountAllow the monitor to be mounted directly to any location with coldshoe socket. There are two coldshoe sockets — at the front or the end of wooden TERRA/MAVO KineKIT top handgrip.
Movcam Quick PlateDirectly mounted to right side of monitor, the quick plate can work with Movcam new EVF bracket easily free from tool.
6-inch Strong Arm with DampingAllow the monitor to be positioned easily and is flexible to mount if there are 1/4″-20 threaded holes.
High Brightness Screen
2000nit Full LaminationKineMON-5U2 is able to work directly in indoors or outdoors with its 2000nit high brightness screen. Even with direct sunlight, indie filmmakers is also able to check the composition and exposure as normal. The whole Kinefinity camera system is more flexible to create works by slim and lightweight KineMON-5U2 with full frame MAVO LF.
The ultra-bright monitor also adopts OCR Full Lamination crafts with high strength and transmissivity tempered glass to bring higher light transmission and lower light reflection, thus the image brightness is more clear under sunlight with its brightness improved. Moreover, there is grease-proofing AF Coating on glass surface, more cleanable and convenient.
KAs a monitor for cinema camera, the spec of LCD panel is superior: 16M colors (RGB 24-bit depth), 100% Rec.709 Gamut, 1920×1080 physical resolution (441ppi), 1000:1 contrast ratio, full viewing angle and LED back-illumination. High standard Retina display ensures sharp and clear image.
