Kiloview RMG300 v2 Media Gateway Card
Kiloview RMG300 v2 Media Gateway Card
Email me when the availability or price changes
Finance this product
- From £29.66 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £21.15 / month (APR 15.9%)
Kiloview - 'RMG300 v2 Media Gateway Card'

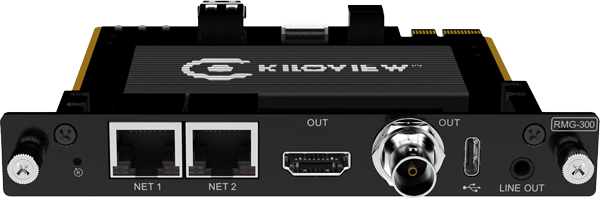

seamlessly bridges various IP protocolsIntroducing the Kiloview RMG-300 V2 Media Gateway Module, a powerful addition to your Cradle Series RU01, RU03, or RU03s rackmount chassis. This cutting-edge media gateway seamlessly bridges various IP protocols, enabling efficient multichannel video decoding for formats such as NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS. With its sophisticated transcoding capabilities, the RMG-300 V2 effortlessly converts between H.264 and H.265 signals, ensuring top-notch video quality. Whether you need to output stunning UHD 4K60 video via the HDMI port or deliver 1080p60 through the 3G-SDI output, this module brings unparalleled versatility and performance. Benefit from its advanced features, including multi-view output, streaming options, and video image segmentation, while supporting diverse distribution services for all your video needs.
The Tech Spec
| Features | Specification | Network | 2 x 100M/1000M RJ45 adaptive Ethernets |
|---|---|
| Decoding output | 1 x SD/HD/3G-SDI, up to 1080P 60Hz 1 x HDMI, up to 3840*2160@60Hz |
| Applicable Frame | RU01, RU03, RU03S |
| Analog Audio Port | 1 x 3.5mm |
| USB | 1 x USB 3.0 Type-C |
| Access protocol | NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP |
| Output protocol | NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP |
| Protocol conversion | 9 channels1080P video conversion |
| Streaming distribution | 50 channels of RTSP, 36 channels of RTMP/SRT (Not more than 800Mbps) |
| Streaming distribution capability | 9 channels*4 channel 1080P |
| Number of decoding | 4K 30Hz H.264/H.265: up to 4 simultaneous channels 1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels 1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously |
| Video decoding standard | H.264, H.265 | SDI output format | 1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60 |
| HDMI output format | 4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 Compatible with VESA standard format |
| Video rate range | 128Kbps ~ 40Mbps |
| Audio decoding | AAC G.711 (aLaw/uLaw) |
| Audio rate range | AAC: 8Kbps ~ 320Kbps G.711: 64Kbps |
| Decoding delay | ≤200ms |
| Split display style | Support 1/2/3/4/5/6/7/8/9 splitting; Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding. |
| Management interface | Web |
| Remote management | Support |
| Remote firmware upgrade | Support |
| Operating temperature | -25 ~ 60°C |
| Dimension & weight | 140*105*28mm (5.5”*4.1”*1.1”/380g/13.4oz) |
| Power consumption | ≤6W |
| Power supply | 12V/1A |
| Remark | NDI|HX means NDI|HX Version 2.0 |
