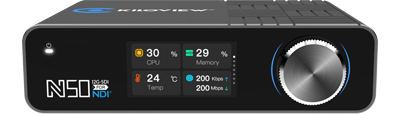

Kiloview N50 12G-SDI to NDI Bidirectional Converter
Kiloview N50 HDMI to NDI Bidirectional Converter, 2x 12G-SDI, 2x RJ45, PoE, 4Kp60, NDI/NDI HX, USB 3.0 Type-A/C
Email me when the availability or price changes
Finance this product
- From £29.33 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £25.98 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Kiloview - 'N50 12G-SDI to NDI Bi-Direction Converter'
Full-Functional NDI & NDI HX ConverterThe Kiloview N50 offers 12G-SDI to NDI Bi-directional conversion with SRT support for seamless transmission across LAN and the internet. Featuring a large scroll wheel and a colour OLED screen enables you to easily view and adjust your parameters, PoE and DC power, PTZ control, 3.5mm audio line in/out, multichannel audio, and intercom functions that make the N50 an excellent choice for professional IP-based video transmission.

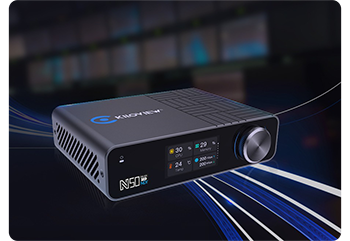

10-bit Colour Support
Pro-Level Colour PerformanceN50 supports a professional YCbCr 4:2:2 colour space and 10-bit colour depth (8-bit colour depth is also available). N50 provides higher colour and image quality to match the high standard in the broadcast and medical industries.
NDI and NDI HX Support
Encoding & Decoding with Ultra-Low LatencyIn the encoding mode, the N50 easily converts a 4K 12G-SDI video signal into an NDI and NDI HX stream. While in decoding mode, it will automatically adapt the NDI and NDI HX format as you ends needs. N50 handles your NDI transmission easily with a low latency of less than 80ms.

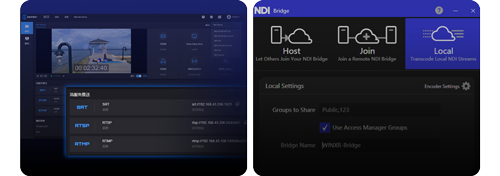

NDI Bridge UtilityN50 supports the SRT protocol for remote transmission. In addition, when used with the NDI Bridge Utility, the 50 can send NDI sources across different locations using just one public IP address. This setup enables you to extend your NDI studio over a wide area network and connect with remote sites globally. By support both SRT and NDI bridge transmission modes, the N50 offers flexible and reliable remote delivery solutions.
4K HDR with NDI 6.0 Support
4K HDR tier-1 image qualityKiloview's N50 is among the first devices worldwide to support NDI 6.0, delivering 4K HDR 10-bit colour depth. This enables users to experience unprecedented visual richness, colour accuracy, and content creation. It sets a new standard in image quality for professional video applications like broadcasting and medical imaging, offering more lifelike, brighter, and more vivid visuals.
Built-in Screen and Tally

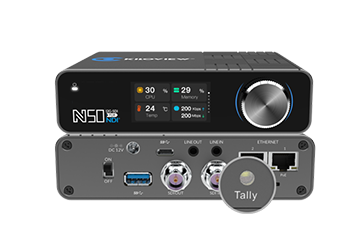

Built-in LCD screen and Scroll WheelThe N50 is equipped with a colour LCD screen that allows users to check the unit's parameters at any time, anywhere. It can also be used as a big tally light and works in conjunction with the small tally on the back panel, making it easy for all personnel in the field to check the PVW or PGM status in real-time. The scroll wheel enables users to customise settings, switch on/off, set quick shortcuts, and control all video sources with pre-eminent ease.
Intercom Support
Audio and IntercomN50 supports 12G-SDI embedded audio and 3.5mm analog audio encoding/decoding. It supports an extended USB audio interface (e.g. USB headset), to realise a real-time intercom among the Kiloview devices operators with Kiloview Intercom System.
PTZ Camera Control
PTZ ControlN50 supports PTZ control through USB to serial RS-232/RS-485/RS-422. It also adopts network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.
Multiple Power Options

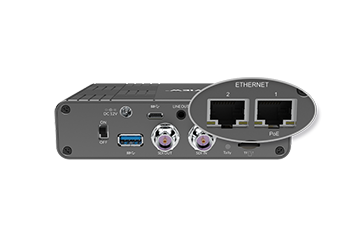

PoE and DC powerN50 has 2 RJ45 Ethernet ports, one of which supports PoE (IEEE 802.3AT) to power the unit. Just plug in a network cable, and you can easily access both power, and network transmission. It also supports DC 12V power supply and can easily power the device with a portable charger or camera battery.

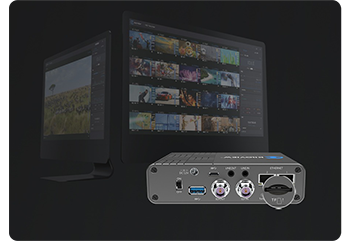

Built-in Card Slot
TF StorageN50 features a TF card slot that allows for direct local recording of MOV format video that prevents your recording process from losing video frames caused by network delay, interruption, or fluctuation.
KiloLink Server Support

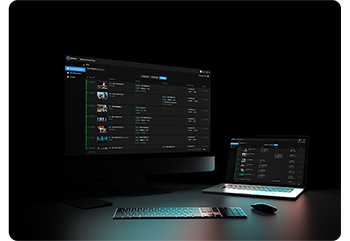

Central management with KiloLink ServerN50 can connect to KiloLink Server* seamlessly which optimises media transmission by any Kiloview products using any available network links.
It helps to manage, monitor and control all the devices throughout the process.
*KiloLink Server Pro sold separately.
The Tech Spec
| Features | Specification | Internet Protocol | Support SRT, NDI HB, NDI HX 2, NDI HX , RTMP and RTSP |
|---|---|
| Video Input | 1x 4Kp60 12G-SDI 2.0 |
| Video Output | 1x 4Kp60 12G-SDI 2.0 (loop or decoding output) |
| Audio port | 1x 3.5mm Line in 1x 3.5mm Line Out |
| Network | 2x RJ45 1000Mbps Ethernet port Ethernet 1 with PoE (IEEE 802.3AT, 24W Max) |
| Video Resolution | Input: up to 3840x2160 60fps (4Kp60), lowest 720p50 Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p50 |
| NDI® Codec Capacity | 1x NDI® HB/HX encoding or 1x NDI® HB/HX decoding |
| NDI®CODEC feature | SpeedHQ (NDI CODEC): SHQ0, SHQ2 ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265 AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier |
| Audio Encoding and Decoding | NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion |
| USB | 1x USB3.0 (Type A) 1x USB3.0 (Type C) |
| Human-computer interaction | 1.96" LCD screen, KILOVIEW Magic Rotor |
| TF storage | Support TF card for recording, capacity up to 2TB |
| Tally | Built-in LCD panel available as front/rear Tally |
| Power | DC 12V (5.5/2.5) or PoE |
| NDI | Support NDI HB, NDI HX 2 and NDI HX 3. |
| Typical Bitrates | SpeedHQ (NDI CODEC):
4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps
480i60: 62.5Mbps AVC (H.264): Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60). HEVC (H.265): Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60). |
| Recording | TF card available for local storage to .mov filles. Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required). |
| Voice Intercom | Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server. |
| PTZ | Support PTZ control through USB to serial RS232/485/422; or PTZ control over IP with different protocols, no extra cable required |
| Management | Web UI and remote management with KILOVIEW KiloLink Server |
| Firmware update | Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server |
| Mounting | Support cold-shoe mounting and V-mounting |
| Power Consumption | 16W Max |
| Dimension | 135.00x123.60x35.00mm |
