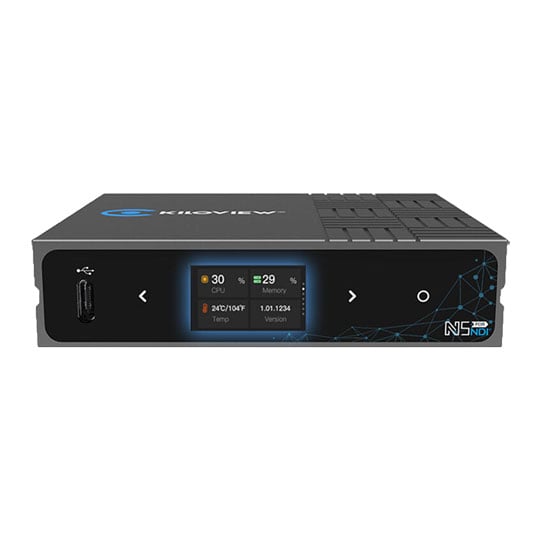

Kiloview N5 3G-SDI/USB to NDI Encoder/Decoder
Kiloview N5 3G-SDI/USB to NDI Encoder/Decoder, 3G-SDI to NDI, USB to NDI, 1080p60, PoE
Email me when the availability or price changes
Finance this product
- From £19.02 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £13.56 / month (APR 15.9%)
Kiloview N5
Versatile Inputs, Endless NDI PossibilitiesThe Kiloview N5 is a compact, cost-effective 3G-SDI and USB-NDI encoder/decoder designed for live production, streaming, and video-over-IP workflows. It converts SDI or USB video sources into high-quality NDI streams and can decode NDI back to SDI, supporting both NDI High Bandwidth and NDI HX2/HX3 formats with resolutions up to 1080p60. With low-latency AVC/HEVC performance, 3G-SDI loop-through, and USB webcam input, the N5 offers an affordable and flexible way to bring professional video equipment into an NDI network.

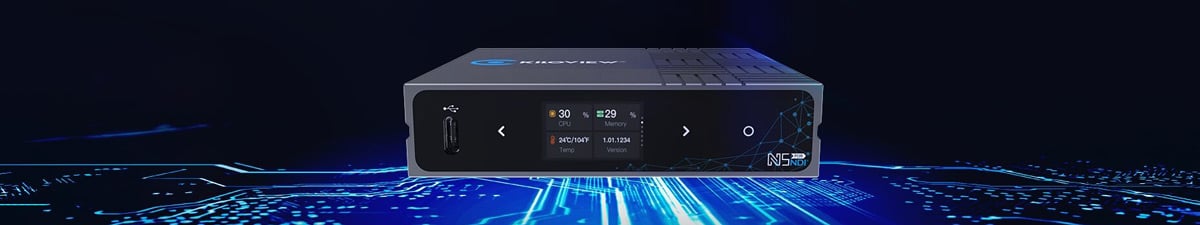

Integrated Encoding & Decoding
SDI-IP FlexibilityThe N5 supports both NDI High Bandwidth and NDI HX2/ HX3 formats in a single, compact unit. It features 3G-SDI input with loop-through and decoding output, supporting resolutions up to 1080p60. In encoding mode the N5 can simultaneously output both NDI High Bandwidth and NDI HX2/HX3 streams from a 3G-SDI source. In decoding mode it decodes any NDI High Bandwidth, NDI HX2, or HX3 stream and outputs directly to baseband 3G-SDI for on-screen monitoring.
Simplify Your Setup
Elevate Your StreamThe N5 allows direct input from USB video devices such as webcams, UVC cameras, and built-in laptop cameras—instantly converting them into NDI streams at up to 1080p60. With no need for external capture cards or complex setup, it offers a fast and efficient way to integrate lightweight video sources into professional NDI workflows.

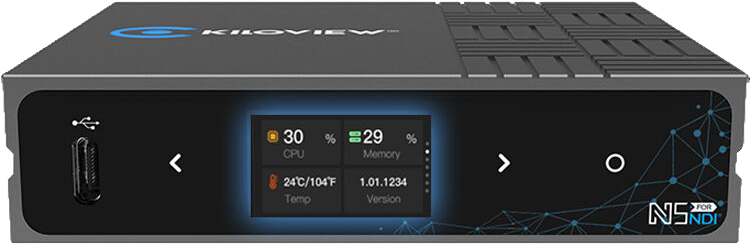

Large-sized Colour LCD Screen with Tally
LCD Display• Clear status display with touch buttons: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the touch buttons allow quick navigation and precise adjustment of key settings.
• Tally Indicators: Front panel LCD and rear Tally LEDs provide clear red/green indicators for PGM (program) and PVW (preview) status. (It also supports external Tally through USB expansion.)
Centralised Management

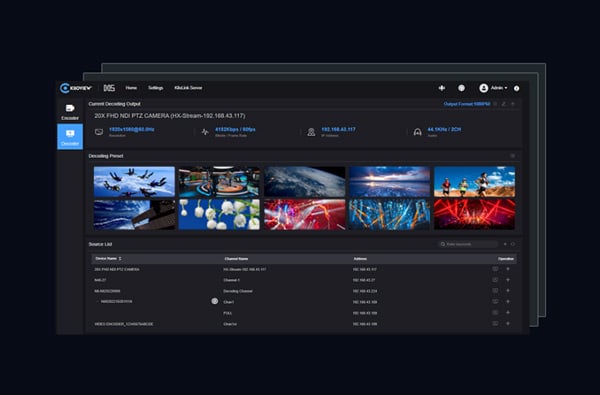

Kilolink Server ProThe N5 seamlessly connects to the KiloLink Server Pro once registered, enabling centralized remote management with real-time monitoring of device status, including connectivity, video preview, bandwidth, and IP address—all in one interface for streamlined oversight.
More Features
PTZ ControlThe N5 enables flexible PTZ camera control without needing additional controllers. It supports serial connections (RS-232/RS-485/RS-422) via USB and mainstream network protocols. This allows precise pan, tilt, and zoom adjustments, enhancing multi-camera live streaming and conference setups with seamless integration and user-friendly operation.

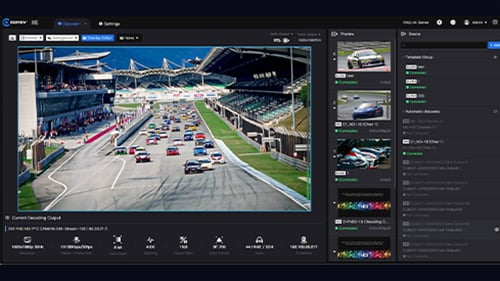

Smarter PreviewN5 offers real-time preview of up to 10 video sources, allowing quick signal verification and issue detection before going live for smooth, reliable multi-camera production. In addition, it supports flexible OSD tools, including real-time VU meter display, customizable border overlays, and full graphics and text overlays, enabling visually engaging, branded outputs while saving time and streamlining the overall workflow.

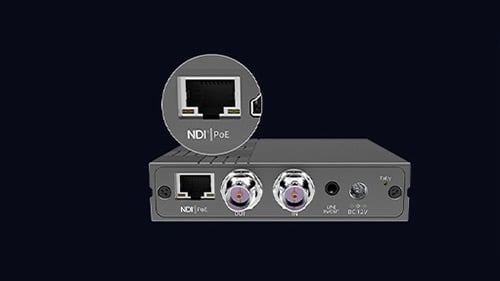

Power It as You WishThe N5 supports PoE for single-cable power and data transmission. With a 12V–18V DC input range, it can also be powered via USB or camera batteries for flexible deployment.

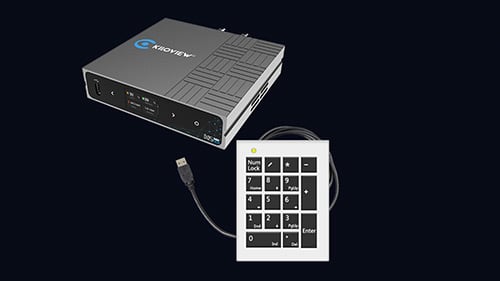

USB Keypad ControlIn decoding mode, you can preset up to 10 NDI sources (0–9) and quickly switch outputs using a connected USB keypad. You can even use the keypad to control a PTZ camera, making it the most affordable PTZ controller available.

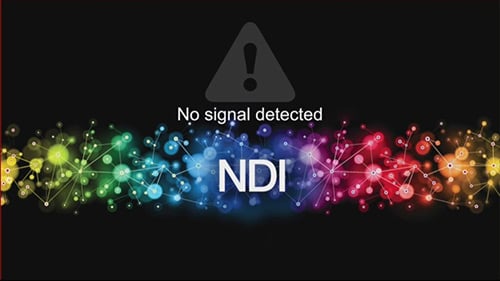

Visual Input Loss AlertsWhen a video source or network stream is interrupted, the system automatically displays a preset “No Video” screen or a custom PNG image (1920 × 1080 or 1280 × 720), instead of defaulting to a black or blue screen. This maintains a clean, professional output while helping users quickly pinpoint input-side issues—minimizing downtime and avoiding confusion.
Audio SupportThe N5 fully supports USB headset connectivity. When paired with the Kiloview Intercom System (KIS), the N5 supports real-time voice intercom, enabling seamless talkback during production workflows.

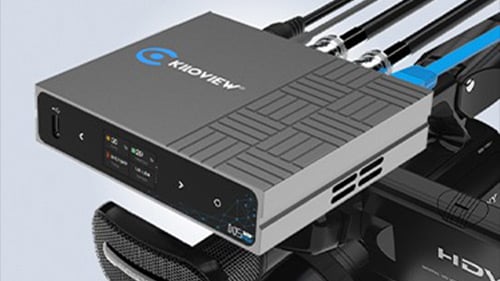

Compact DesignThe N5 features a compact design and comes with a standard threaded cold shoe mount, making it easy to attach directly to a camera.
