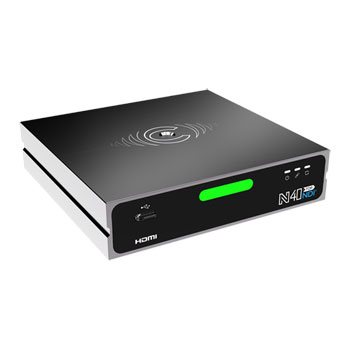

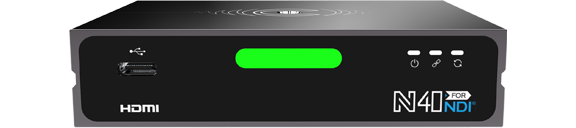

Kiloview N40 4K HDMI/NDI Bi-Directional Converter
Kiloview N40 Bi-Directional Converter, 2x HDMI 2.0, 4Kp60 Encode/Decode, RJ45 PoE, Full NDI
- SCANPROTECT Protect against installation damage for 28 days. More info
Kiloview - 'N40 for NDI® 4K HDMI 2.0 NDI® Converter'
N40 for NDI® 4K HDMI 2.0 NDI® Encoder/DecoderKiloview for NDI® supports up to UHD 4Kp60 video input (Encoder) or 4Kp60 video output (Decoder). This converter is small and compact enough to put in your pocket with the overall size of 100x80x24mm. it features an HDMI 2.0 input and HDMI 2.0 Loop through for monitoring while NDI® streaming, or HDMI 2.0 output while decoding. A tally system with a big tally light is built-in for indicating which camera is in program or preview. It also has the 3.5mm audio input/output which supports intercom (Kiloview software required).
Kiloview N40 for NDI® has a wide DC input range from 5V to 18V, so it can easily be powered via USB, power bank or camera battery, it can also be powered over Ethernet (PoE). A threaded screw camera mount is provided for easy mounting to a camera. PTZ interface by USB adapter is supported.
The N40 for NDI® is also compatible with Kiloview IMS software to help with the device management, NDI source management, remote configuration and upgrading, etc.
The Tech Spec
| Features | Specification | Model | N40 for NDI® |
|---|---|
| Video Input | 1x HDMI |
| Video Output | 1x HDMI |
| Analog Audio | 1x 3.5mm Headphone(Out)/Micro phone (Input) |
| Network | 1x RJ45 (PoE), 100/1000Mbps Ethernet |
| Video Formats | Up to UHD 4Kp60 (Downward compatible with SD/HD/VESA and custom resolution) |
| NDI ® encoding and decoding | 1×NDI® encoding or 1x NDI® decoding |
| NDI ® CODEC features | YCbCr 4:2:2 video encoding, typical bit rates: 250Mbps @ 4Kp60, 125Mbps @ 1080P60 |
| LED Indicators | Tally, power indicator, connection status indicator |
| Power Supply Modes | Options for POE, DC 5-18V |
| Intercom | Support (equipped with Kiloview software) |
| PTZ Control | Support |
| DHCP | Support |
| Management | Web Page/IMS remote management |
| Operating temperature | -20℃ to 70℃ |
| Dimension | 100 x 80 x 28mm |
| Power Consumption | 6W |
