Kiloview - 'E3 HDMI & SDI Dual Channel Video Encoder'
Flexible, Powerful, ProfessionalIntroducing the Kiloview E3 HDMI & SDI Dual Channel Video Encoder, with an impressively low 100ms latency, the E3 is tailored for diverse applications, excelling in remote transmission and live streaming scenarios. Powered by a state-of-the-art chipset, this encoder facilitates simultaneous streaming to 16 destinations, accommodating eight main stream 1080p signals and eight sub stream 720p signals. Equipped with versatile audio capabilities, the E3 accepts analogue audio through a 3.5mm line input, while digital audio can be seamlessly embedded via HDMI and 3G-SDI, supporting multiple formats such as AAC, MPEG-4, MPEG-3, MPEG-2, Opus, or G.711. The 1.14" LCD screen provides real-time monitoring of connectivity, IP address, CPU, memory, resolution, temperature, and tally status. Streamline your setup with a single Ethernet cable, offering Power over Ethernet (PoE) functionality and minimizing cable clutter.
Introducing The Kiloview E3
Encoding Both HDMI & 3G-SDI
3G-SDI or HDMIE3 allows encoding video sources from either port of 3G-SDI or HDMI, mixing both video sources into one output in PIP or PBP mode or even encoding video sources into up to 1080p60 from both ports of HDMI and 3G-SDI simultaneously for high-quality live streaming.
Flexible Formats Selection
HEVC supportFor all IP-based video transmission processes, E3 supports the high efficiency video codec HEVC as well as H.264. With support of HEVC, E3 can maintain video image quality with lower bitrate, saving more than 50% of your bandwidth.
Compatible With All Protocols
complete range of streaming protocolsFor broad applications, E3 supports a complete range of streaming protocols including NDI HX3/NDI HX2/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP/Onvif. It can be used for live production with NDI|HX, remote production with SRT, live streaming with RTMP or HLS, or any transmission with all different protocols.
Powerful Streaming Capabilities
powerful output optionsThe E3 input can be up to 4Kp30 from its HDMI port and up to 1080p60 from its 3G-SDI port. With its powerful output capabilities, E3 can go live to up to 16 different platforms simultaneously by outputting in both mainstream (up to 8 channels in 1080p) and substream (up to 8 channels in 720p) with adjustable bitrate, max bitrate can be up to 100Mbps.

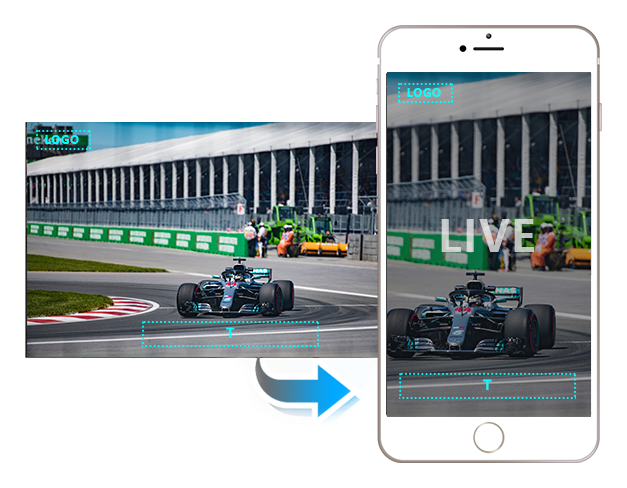

Pro-Level Video Processing
overlaysOther than powerful encoding performance, E3 can process rotate/crop and add custom overlays including images, texts or other OSD to the output video for advanced applications, it’s suitable for your webcast.
Powerful Audio Performance
Multi-Channel Audio Encoding SupportE3 allows for encoding audio source through its 3.5mm Line input and SDI/HDMI embedded audio input. You can convert audio into multiple formats, including AAC, MPEG-4, MPEG-3, MPEG-2, Opus or G.711. E3 supports 8-channel embedded audio encoding of SDI inputs and 4-channel embedded audio encoding of HDMI inputs. Along with more functions including audio de-embedding, channel selection, alternate channel and audio output mapping, E3 is ideal for highly efficient program production.

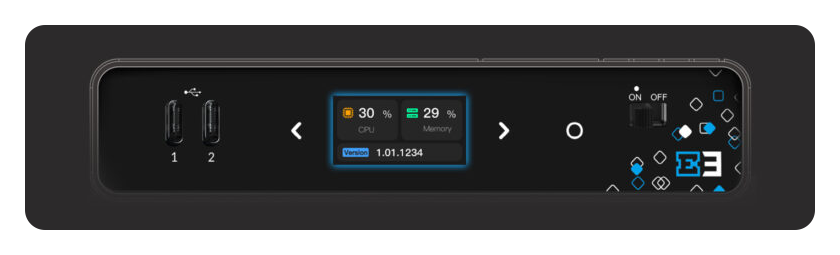

Built-In LCD Screen
Touch ButtonE3 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU usage, memory usage, resolution and tally status in real-time. The LCD Screen is also a big-sized Tally to display the preview/program status.
Reliable Recording And Streaming
stream and record simultaneouslyAll inputs of E3 can be recorded in .MOV/.MP4 through 3 USB ports or NAS storage. It supports streaming and recording simultaneously for post-production and further application.
