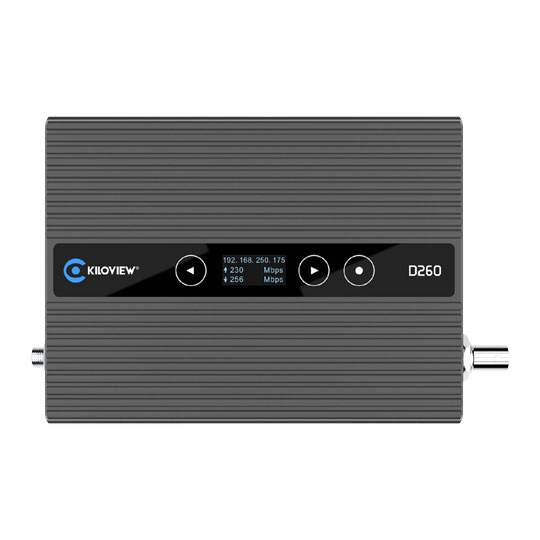

Kiloview D260 HD IP To SDI/HDMI Video Decoder

4-Channel HD H.265 DecoderIntroducing the Kiloview D260 HD IP to SDI/HDMI Video Decoder, meticulously crafted for professional video decoding. Engineered to deliver exceptional performance, this decoder supports up to 1080p60 video input and output, with the capability to simultaneously decode up to four channels for output, while providing a preview of up to 16 video channels. With one 3G-SDI and two HDMI outputs, the D260 ensures versatile connectivity. Its feature-rich design includes support for multiple audio formats, diverse display options, and flexible Picture-in-Picture setups. Equipped with an integrated LCD display, this decoder stands out with its support for H.264/H.265 decoding formats and compatibility with a range of streaming protocols, including NDI, NDI|HX 2/3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP.

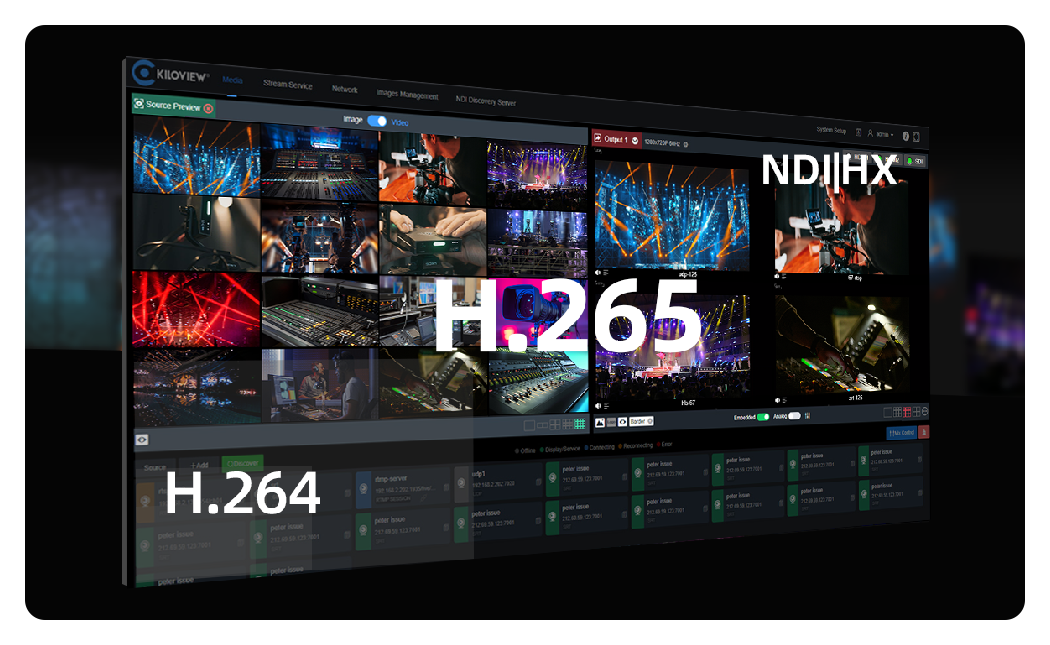

H.265/H.264D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.

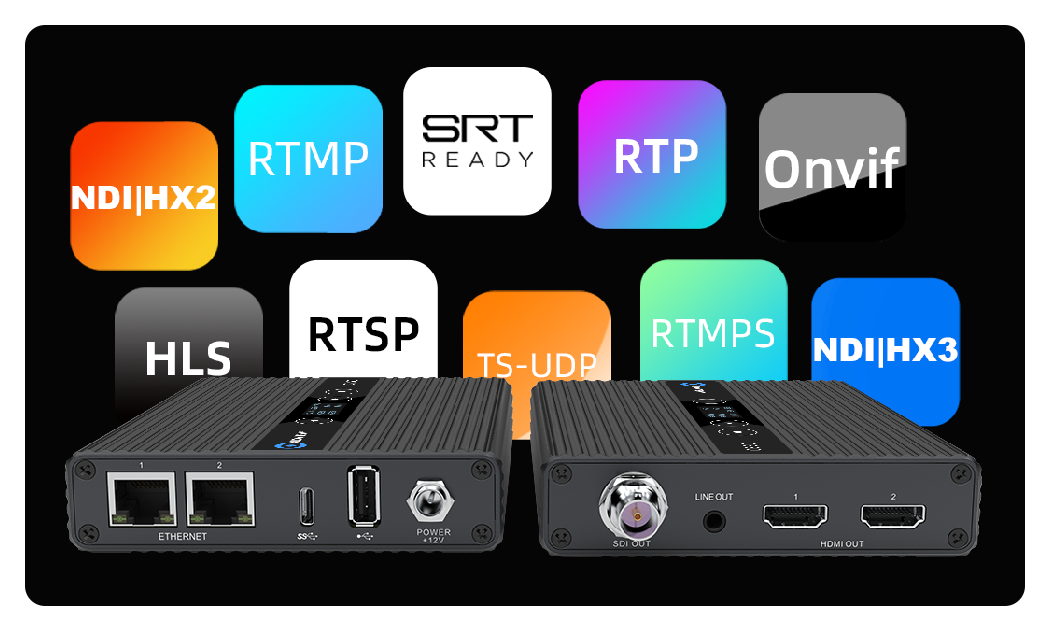

the latest NDI technologyFor all IP-based video transmission process, D260 supports the latest NDI technology – NDI HX3, NDI HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP.

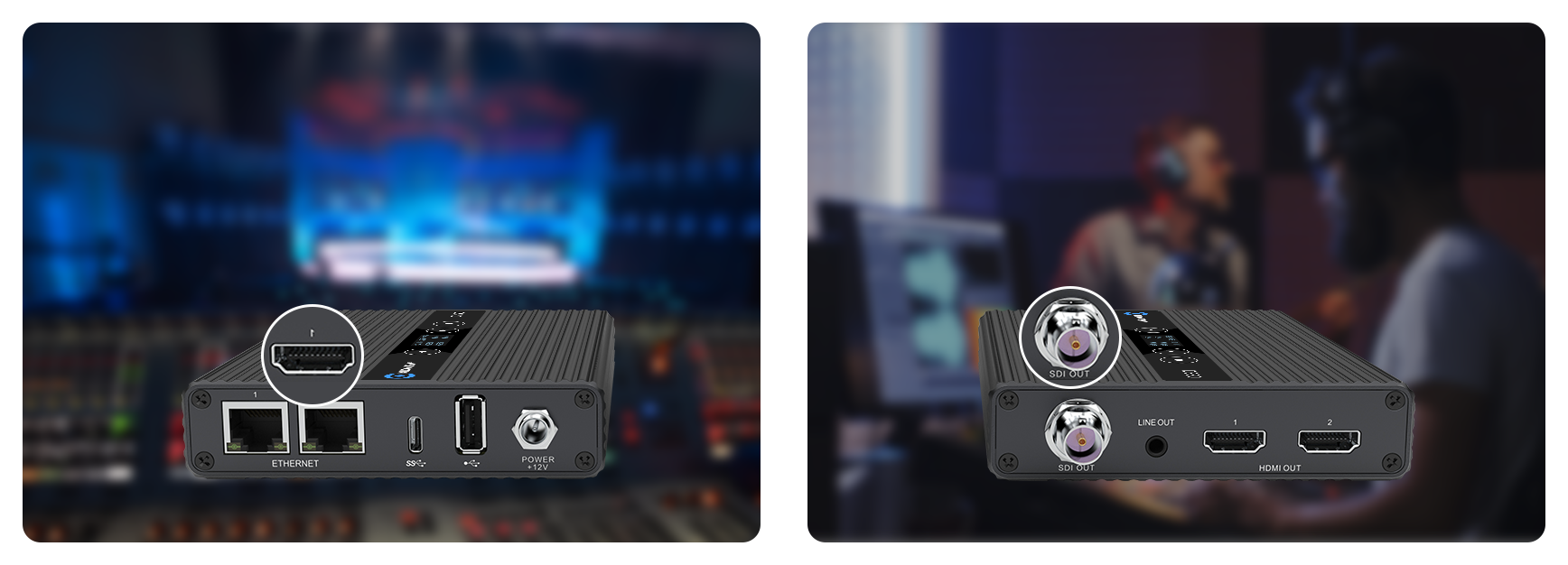

scalabilityAs an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports (one USB Type-A and one USB Type-C) to ensure the scalability, it’s capable for outputting in three ways: Independently, combine multi-channel video flows or replicate of one single flow to stream simultaneously.

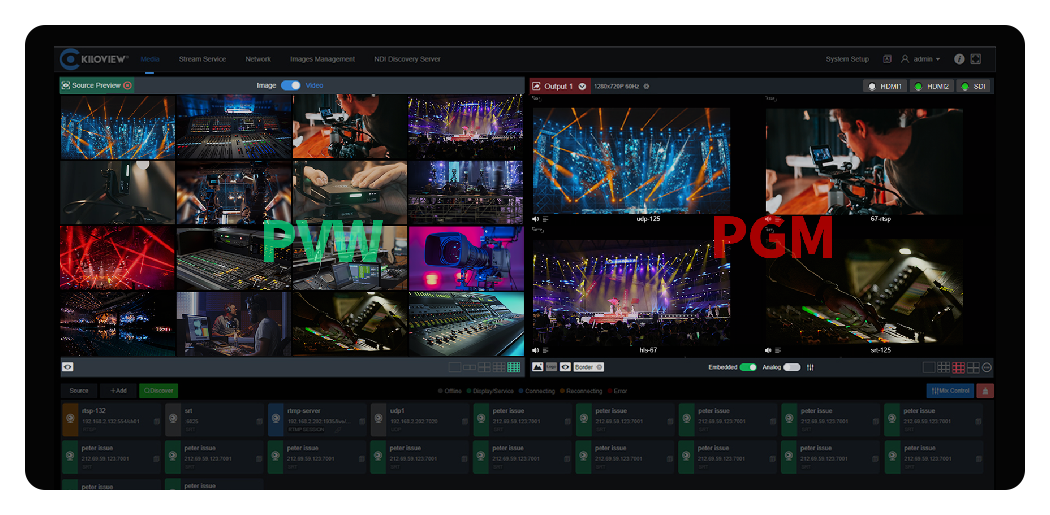

PVW/PGMD260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).

audio mix and gain in real-timeD260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, it’s also capable of switching audio on/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.

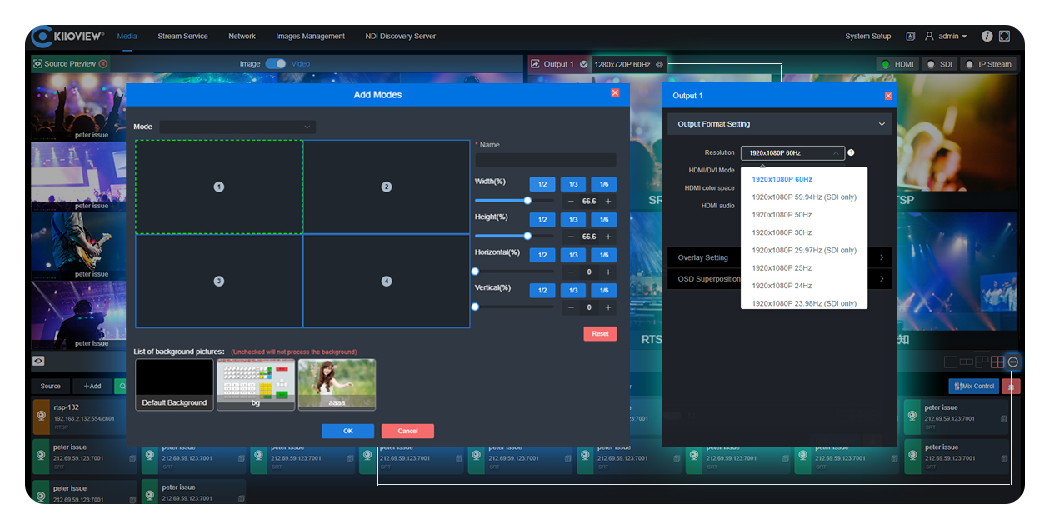

multi-output displayCustom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display (bit-rate and resolution) can be customized.

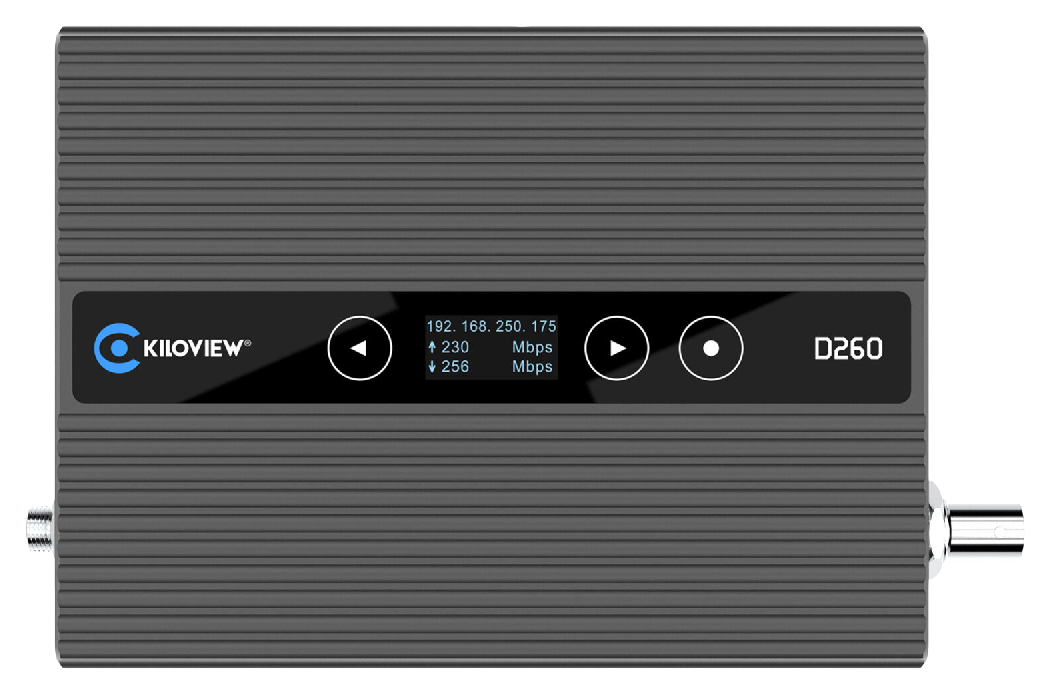

Touch ButtonD260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.
