Keeley DDR-Drive-Delay-Reverb guitar pedal
Keeley DDR 2-channel Multi-FX Pedal with 2 Drives, 2 Delays, and 2 Reverbs, Plus Optional True Bypass Switching
Email me when the availability or price changes
Drive - Delay - Reverb
Keeley - 'DDR'

2-channel
Multi-FX Pedal
Distortion and ethereal reverbs have long since formed the foundation of some of the most famous and iconic guitar passages of all time, and with the 'DDR' you can get this very sound, but with just one pedal. Keeley’s impressive ‘DDR’ stacks two variations of 3 classic effects – 2 overdrive variations and a choice of 2 reverbs or 2 delays – inside one pedal with plenty of cool features to boot!
British-style crunch all the way through to heavy tube-style saturation, retro spring-style reverb to modern plate reverb, it all lies inside Keeley’s powerful ‘DDR’ pedal. Neatly tucked away toggle switches enable true bypass or tails switching, and an additional 1/4” jack is on hand for the connection of external FX to be placed between the drive and delay/reverb stages.
Amazing Features
• 2-channel pedal with 6 iconic Keeley effects
• A great multitasker and a capable single-pedal gigging solution
• Two overdrive flavors: chimey, British crunch to thick, dark saturation
• Stackable reverb or delay, with vintage and modern options for each
• External Trails switch toggles true bypass and tails-intact switching
• Made in USA
Two Styles of Overdrive

give your leads that little extraThe circuitry inside the Keeley ‘DDR’, is described by Mr Keeley himself as a 'modified 1962' featuring a Katana boost on top, assimilates two mainstays from the Keeley range. ‘A’ drive is a vibrant, cutting distortion, reminiscent of classic British amps, perfect for chord passages and ripping blues solos. Whereas ‘B’ drive is Keeley interpretation of the infamous ‘TS’ circuit, delivering a darker, more saturated tone.
Once you’ve settled on your drive sounds, add a little ambient atmosphere with a quick flick of the switch to access the delay/reverb channels. Each option offers two choices of further effects.
Insert External Pedals!

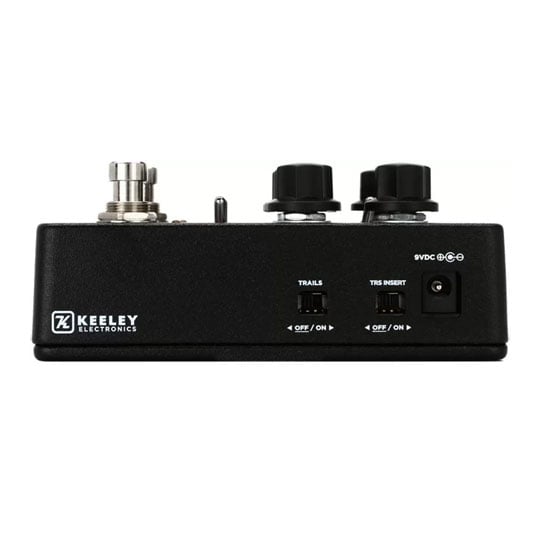

3 pedals in 1!A switch on the ‘DDR’ transforms it’s ¼” I/O into TRS jacks, enabling you to connect additional pedals between its OD and Delay/Reverb channels. On your pedal board, this feature makes the ‘DDR’ pretty much identical to using 2 separate pedals, but saves on valuable pedal board space!

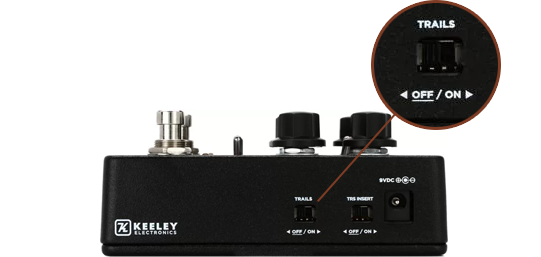

bypass/tailsOne cool feature we absolutely loved here, was the handy ‘trails’ switch. If you’d rather your trails didn’t cut off as soon as you step off the pedal, just flick this cool switch, and your sound will trail on after you’ve cut the effect out. Perfect for the solos in your set!
Keeley Electronics - 'DDR'
hand built
in the usaIn this video, explore how the DDR - Drive Delay Reverb works in a full band mix.
The DDR combines the most common guitar effects - DRIVE and WET - into one pedal. Choose between two classic overdrives and then pour on some delay or reverb. One pedal, any gig.

The Tech Spec
Features | Specification | Pedal Type | Multi-effect Pedal |
---|---|
Analogue/Digital | Analogue (drive), Digital (delay) |
Effects Types | 2 x Overdrive, 2 x Delay, 2 x Reverb |
Max Delay Time | 1 second |
Inputs | 1 x 1/4" TRS (mono in/insert) |
Outputs | 1 x 1/4" TRS (mono out/insert) |
True Bypass | Yes |
Bypass Switching | Switchable to Buffered |
Power Source | 9V DC 100mA power supply (sold separately) |
Power Usage | 80mA |
