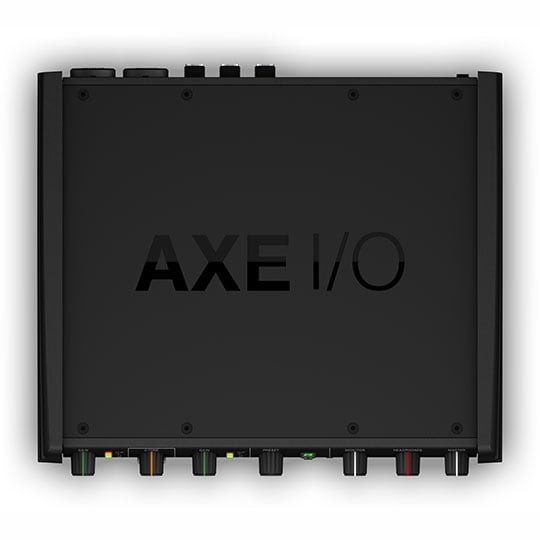

IK Multimedia AXE I/O Audio Interface

The audio interface guitar players were waiting forSince pioneering guitar amp and effects modeling in 2002, IK Multimedia has spent more time studying guitar and amp recording than possibly anyone else on the planet. Modeling over 400 pieces of gear has required tens of thousands of hours painstakingly measuring the interactions between instruments, pickups and amplifier circuits, not to mention the cooperation of the world’s most iconic guitar players, amplifier manufacturers, and engineers to learn how to create and capture great guitar tones. AXE I/O is a professional 2 in/5 out audio interface – and controller - designed specifically with the needs of the recording guitarist in mind, providing best-in-class sound quality and powerful features aimed squarely at making your recordings faster, easier and better than ever.

Amazing Features • Selectable Active/Passive/discrete JFET/Pure instrument preamp
• High-resolution ultra low-noise Class A microphone preamps
• Patent pending Z-TONE input for a tonal palette never heard before
• Best-in-class conversion and superior analogue design
• Amp Out for reamplification or Tone Modeling using TONEX for Mac/PC
• Asynchronous USB audio, ultra low conversion jitters for premium quality
• Connect up to 2 expression pedals, single and double-switches
• Fully assignable data-knob – for AmpliTube preset browsing and more
• Rugged/compact metal housing
• Built-in Tuner

find your soundModel the sound of any amp, cabinet, combo or pedal, and turn it into a plug-in to use on both Mac/PC or iPhone and iPad for the ultimate tone experience. Explore ToneNET and IK’s new TONEX Signature and Tone Partner Collections and discover gear you’ve always wanted to own.

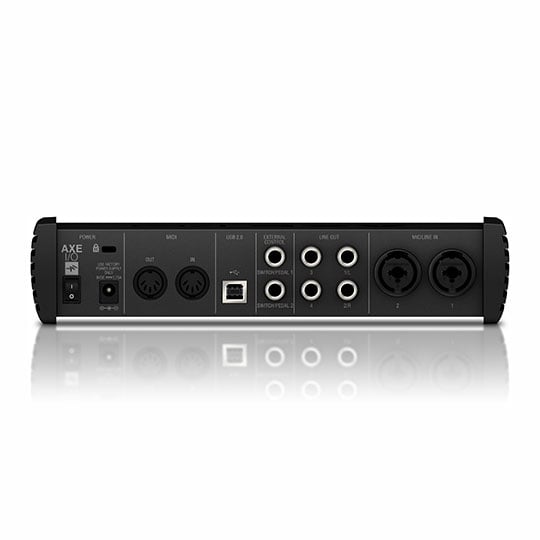

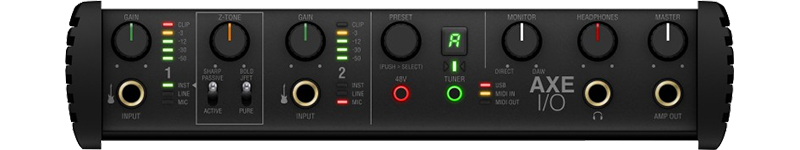

vast connectivity117 dB dynamic range, 3 Hz – 32 kHz frequency response – these aren’t the specs you typically find on instrument inputs. But they’re essential to capturing the most accurate details of your performance, for coaxing the best performance from your instrument, and for keeping your sound pure and transparent. AXE I/O provides 2 Hi-Z front ¼" inputs for guitars and basses, 2 rear combo inputs with phantom power to connect mics and line instruments, and clear precision front peak meters to conveniently monitor the signal level at the channels input.

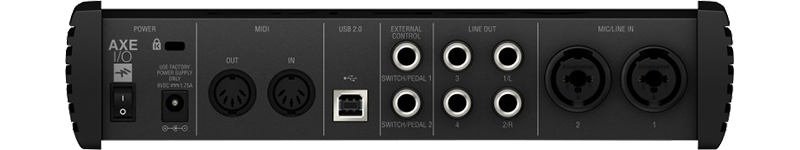

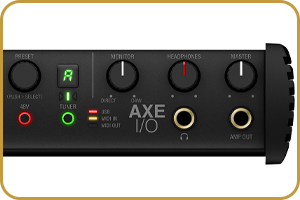

Two floating balanced outputs, two unbalanced and one floating unbalanced Amp out plus a high-current headphone out let you connect monitors, mains and headphones, with independent volume for both. A Monitor knob makes it easy to blend direct monitoring and the audio from your computer for zero latency monitoring. 24-bit, 192 kHz conversion and an ultra-stable, low jitter internal clock ensures the highest fidelity, whether you’re capturing vocals, acoustic instruments, amplified guitar or just direct signal for use with AmpliTube.

more optionsAXE I/O’s main channel offers 3 different circuit topologies – that means you have 3 different options to adapt to any type of guitar, pick-up and style so you can always dial in the perfect tone from any instrument. All three stages offer 117 dB dynamic range to ensure the cleanest signal. And the 3 Hz – 32 kHz frequency response preserves the full sonic impact of your instrument. Unlike the 20 Hz bass response in budget interfaces, AXE I/O captures the full impact of even the deepest bass and won’t artificially cut off sounds above 20 kHz.

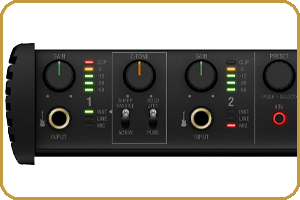

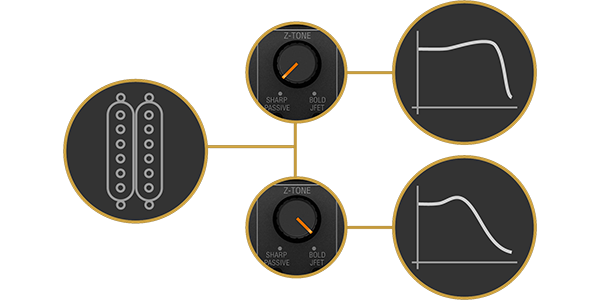

more characterGuitar pickups can dramatically change their character depending on the impedance of your preamp. Many guitar amps offer a load of 1 MOhms, while pedals can run much lower. That’s why the tone and responsiveness of your guitar can change so much when plugging into different gear. AXE I/O’s patent pending Z-TONE circuit lets you dial in impedance from 1 MOhm (“sharp”) down to 2.2 kOhms (“bold”) that interacts with your pick-ups.

At the maximum impedance, you’ll find your sound tighter, sharper and more precise. Increase the load and the sound becomes more thick and bold. You’ll quickly find yourself using this to give your guitars even more sonic character – with just a few minutes’ experimentation you can dial in a sound that fits the mix beautifully, as if it's been EQ’d.

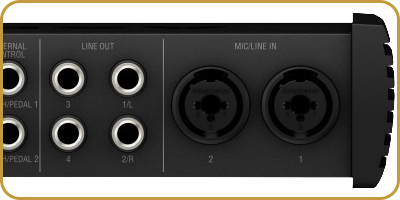

transparent recordingWhen it comes to recording with microphones, AXE I/O offers two PURE mic preamps designed for transparent and clean recording. These mic pres offer a wide, flat frequency response: 5 Hz to 32 kHz, ± 0.5 dB (at 96 kHz) to avoid unwanted coloration and perfectly preserve the sonic character of your acoustic guitar, piano or other instrument, and maintain the signature of whichever mics you connect. They offer 116 dB of dynamic range, for ultra-quiet sound perfect for recording even the most delicate instruments, but make it easy to also pull back and record the loudest amp stack.

It’s simpleAXE I/O also includes a dedicated Amp Out, so you can create the perfect Tone Models of your amps and pedals using TONEX for Mac/PC. Or process your recorded tracks using real guitar amps and stomps without the need for external accessories (and without having to unplug your gear). This low-noise output also eliminates ground loops during amplification and Tone Modeling to keep your high-gain amps as quiet as possible.

Simply connect the Amp Out to your amp, then mic it up using AXE I/O microphone preamp. Now you can create a perfect Tone Model using TONEX for Mac/PC. Capture a clean copy of your signal while recording and feed it back to your amp afterwards to experiment with different amp, stompbox and microphone settings without re-recording countless takes. AXE I/O offers a simple, streamlined reamplification setup in a single box to save you time, money and energy and open up unlimited sonic flexibility for all your guitar recordings.

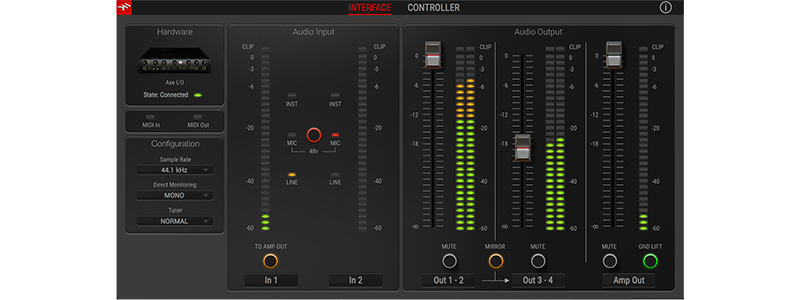

refined detailsAXE I/O also includes a powerful, convenient Control Panel application to manage inputs and outputs, assign routing and controller inputs. In the INTERFACE tab, you can view the active inputs, enable phantom power and control the ground lift to dial in the least noise for your setup. Adjust output volume, direct monitoring routing, select the sample rate and more. The CONTROLLER tab gives you control over the preset knob and 2 controller inputs. Set behavior, MIDI channel, MIDI CC #, minimum and maximum values, and more, to dial in the best settings for whatever application you want to control. The AXE I/O Control Panel lets you keep focused on your work, instead of adjusting settings on the unit itself, for a faster, freer workflow.
