ICY DOCK ToughArmor MB105VP-B 2 Bay 2.5" Mobile Rack Enclosure

Icy Dock ToughArmor MB105VP-B

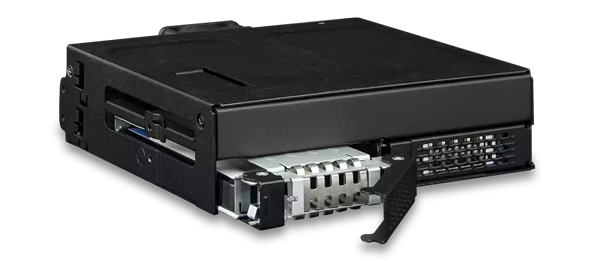

The ToughArmor MB105VP-B is a 5.25-inch ruggedized full-metal removable dual U.2/U.3 NVMe PCIe 4.0 SSD mobile rack enclosure, supporting up to 64Gbps data transfer speeds through Slimline SAS (SFF-8654-8i) connection in a single 5.25-inch (optical drive) bay. In addition, the innovative removable drive tray design allows users to effortlessly access U.2 or U.3 drives from the front of the system.

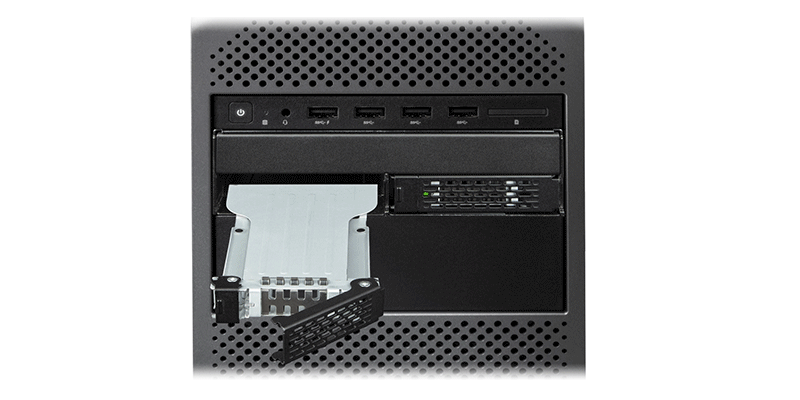

Easy Drive Access

The MB105VP-B is equipped with two EZ Slide Mini removable full-metal drive trays supporting from 7mm to 15mm drive height, making drive maintenance a more efficient and straightforward process.

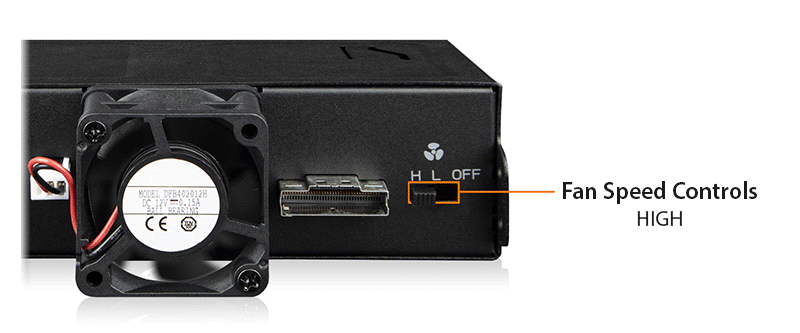

Enterprise Drive Cooling Solution

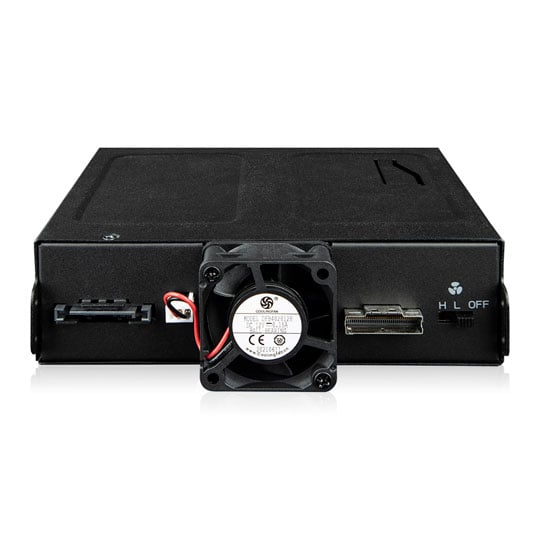

The built-in 40mm x 20mm rear cooling fan effectively blows away the heat generated by the U.2/U.3 SSDs through the intelligently placed ventilation holes within the enclosure. Depending on the intensity of the workload on the U.2/U.3 drives, the user can adjust between three fan settings: Hi, Low and Off.
The additional cooling space above the drive trays allows the cooling fan to exhaust the drive heat more efficiently to prevent the drive from overheating.

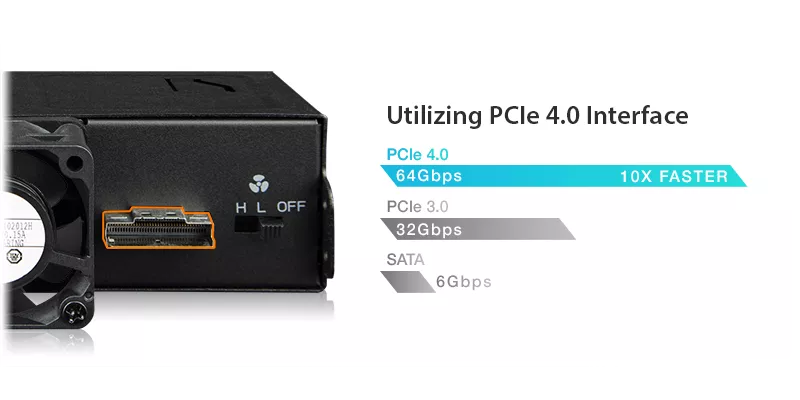

NVMe 4.0 Performance

The MB105VP-B connects 2 x U.2/U.3 SSD with only a single Slimline-SAS (SFF-8654-8i) to reduce cable clutter while offering NVMe 4.0 transfer speeds up to 64Gbps per drive bay.

Exceptional Product Compatibility

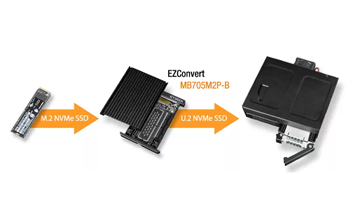

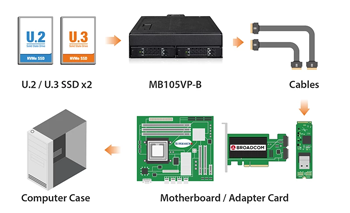

The MB105VP-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations.

Packed with Features

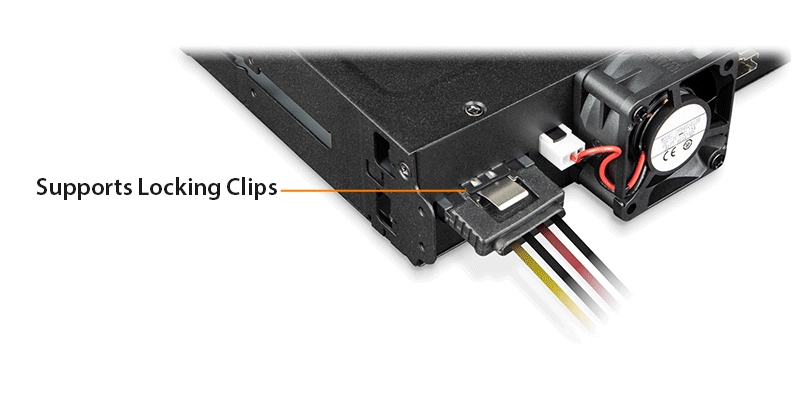

The Slimline-SAS and 15-pin SATA power connectors are compatible with cables that have locking latch designs. Once the cables are connected, the locking latches will secure the connections in place.

The LED status light in each drive tray gives you the drive status information at a glance. With Active Power Technology (APT), the LED lights turn on when the drive is inserted and automatically shut off when all drives are removed.

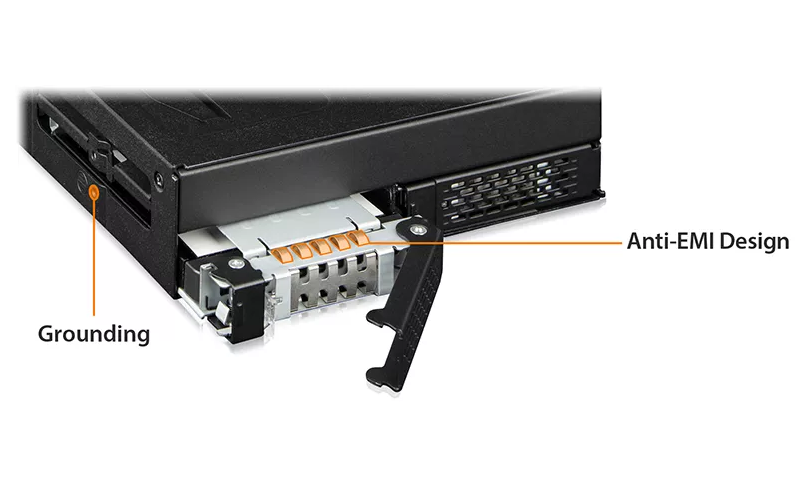

EMI Grounding Technology

Grounding your drives is essential as swapping drives without proper grounding may damage hardware due to static shocks. With our innovative EMI Grounding Technology, once the drive is screwed onto the drive tray, the drive will be in a constant grounded state throughout the tray, housing, and computer system to ensure your drives are protected from static electrical surges safe during drive swapping.

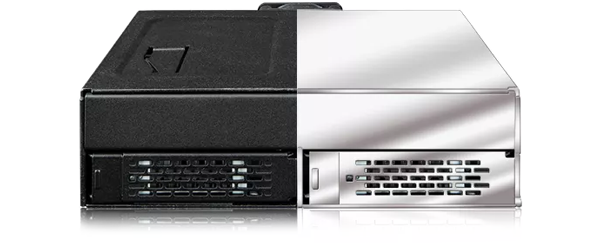

ToughArmor Protection

Ensuring the enclosure can be relied upon for many years, the ToughArmor MB105VP-B can hold up in the harshest environment. It is equipped with rugged, heavy-duty full-metal protection throughout the entire device and drive trays, making it perfect for industrial devices that may require a flammability rating, such as military, medical, in-vehicle computers, and law enforcement industries.

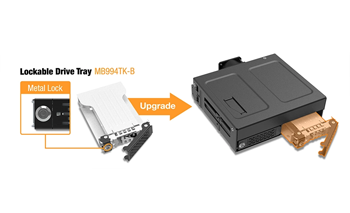

Enhance Security with Our Lockable Drive Tray

If your application demands added physical security to protect valuable data from theft, you can upgrade with the compatible lockable drive tray MB994TK-B for an instant security boost to your MB105VP-B.

• Supports 2x 2.5-inch U.2/U.3 PCIe NVMe SSD, up to 15mm drive height.
• Installs into any standard external 5.25-inch optical drive bay.
• Uses 1x Slimline SAS (SFF-8654-8i) connector.
• Uses a single 15-pin SATA power cable.
• Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay.
• Removable EZ Slide Mini drive tray system for easy maintenance.
• High-performance 40x20mm cooling fan with three fan adjustable speed settings (High, Low, Off).
• Eagle-hook tray latch securely holds the trays inside the enclosure.
• EMI Grounding – protects SSDs from electrical damage.
• Active Power Technology (APT) – saves power by shutting down drives when no drives are installed.
• Industry-leading 5 years limited warranty against all defects.
