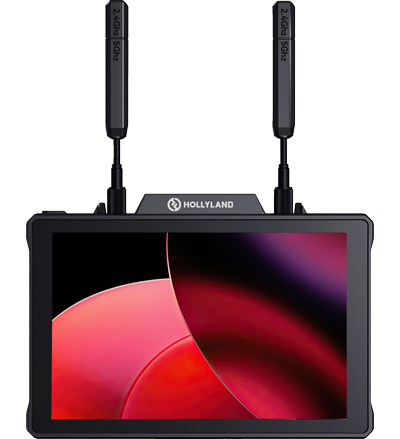

Hollyland Pyro 7 Wireless Video Monitor
Hollyland Pyro 7 Wireless Video Monitor, 7" Touchscreen, 4K30, 3G-SDI/HDMI, 1300ft Range, RTMP
Email me when the availability or price changes
Hollyland - 'Pyro 7 Wireless Monitor'
Fuel your connectionsThe Hollyland Pyro 7 is an all-in-one, 7-inch wireless monitor, transmitter, and receiver. Featuring an ultra-long wireless transmission range of 1300ft and ultra-low 60ms latency with 2.4GHz/5Ghz dual-band transmission and Auto Dual Band Hopping technology. Thanks to its exceptional hardware design Pyro 7 can simultaneously connect one transmitter to four receivers offering more flexibility on set when additional monitoring is required. Dual-camera monitoring is achieved through customizable shortcut keys. The upgraded HollyOS system offers improved imaging tools like waveforms, focus assist, and more with file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S to provide you with greater flexibility and scalability to meet your monitoring needs.
Pyro 7 Key Features
1TX & 4RXOffers more flexibility when addtional monitoring needs emerge on set
1300ft & 0.06s LatencyUltra-long range wireless transmission capability.
2.4GHz & 5GHz Dual BandProvides better signal transmission performance and efficiency.
Auto Frequency HoppingGuarantees reliable and uninterrupted wireless video transmission.
TX, RX, and MonitorOne device to meet your diverse needs.
Dual-View Quick Monitoring SwitchConveniently switch to the desired view.
7-inch & 1200nits7-inch, better monitoring experience. 1200nits, clear and visible even in outdoor or strong lighting conditions.
Precise Image AnalysisMore precise and advanced image analysis features for you.
SDI & HDMI LoopoutSatisfies the diverse requirements of different user groups.
RTMP StreamingConvenient for live streaming and video conferencing.
WiFiBroadcast Technology

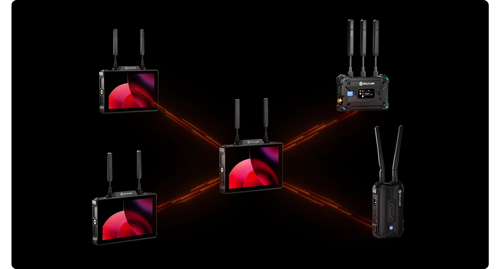

More Flexible, meet more monitoring needsPyro 7's WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.
Broadcast Mode

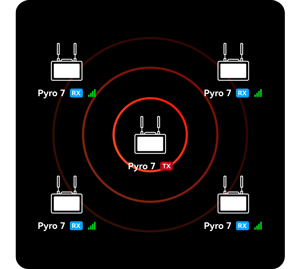

ActivatedWhen Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.

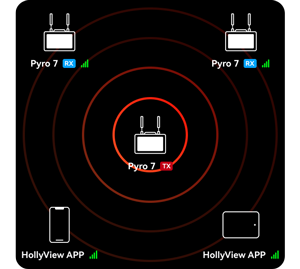

DeactivatedWhen Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.
See Real-Time Footage

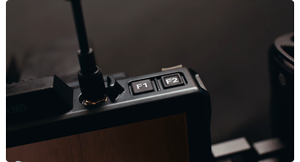

Quick Monitoring SwitchPyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilising two customisable buttons.

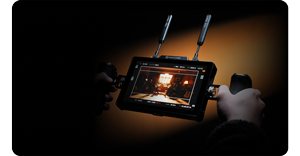

Dual Boost

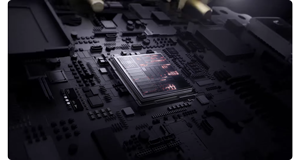

Faster, Longer, StrongerWith self-developed 2.4GHz & 5GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.
Less Latency and more StabilityCompared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

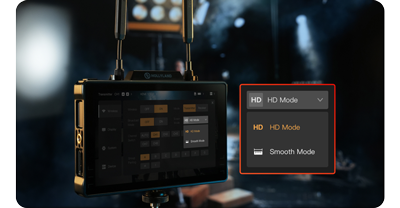

HD ModeOptimmal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft.
Smooth ModeThe bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.

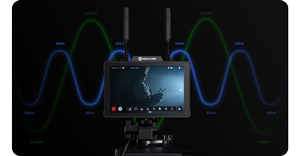

Auto Dual-Band Hopping
ADHWith Hollyllands Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4GHz and 5GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

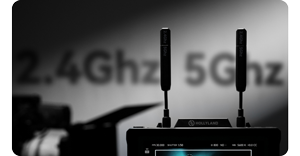

Dual-Band Connectivity
2.4GHz & 5GHz Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won't have to worry about video drop issues anymore.
Auto Dual-Band Hopping
Auto Frequency HoppingWith Hollyllands Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4GHz and 5GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

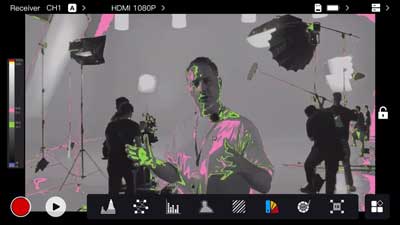

HollyOS Imaging Tools

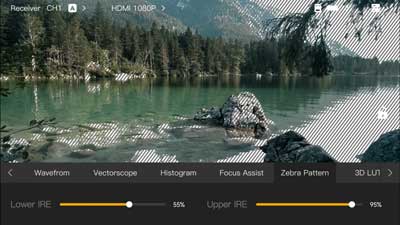

Precise Image analysisPyro 7 offers a convenient custom shortcut key features that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist, and other image analysis functions.
More Possibilities

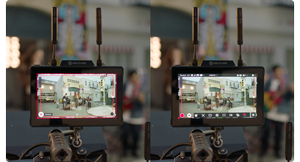

Expanding functionality, enhanced featuresPyro 7 supports extended MP4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUTs during video export. Furthermore, Pyro 7 enables efficient export and organisation of available vidoes into specific folders, catering to your needs for streamlined editing workflow.
It also supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.
7-inch Display

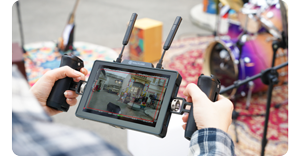

See every detail clearlyThe 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1200nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screens brightness for optimal visual performance.
Seamless Connectivity

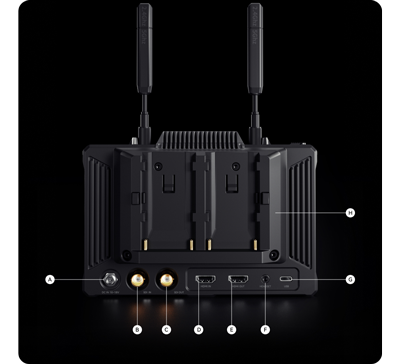

HDMI and SDI Input/OutputPyro 7 is the perfect solution for professional shooting and smaller commercial projects. The transmitter features both HDMI and SDI inputs and outputs alongside HDMI and SDI loopout connections.
A. DC Input (Locking)10-18V Power Supplyt Port
B. SDI Input3G-SDI Input connection
C. SDI Output/LoopoutSupport Video SDI Output & Loop-out
D. HDMI InputHDMI 1.4b Port
E. HDMI Output/LoopoutSupport Video HDMI Output & Loop-out
F. 3.5mm Headset PortFor headphone monitoring
G. USB Type-C PortIn TX Mode, Supports RTMP streaming
H. NPF Battery Platefor battery installment.
Interferrence-Free

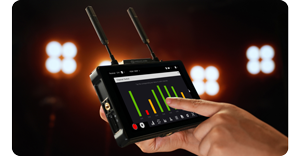

Smart Channel ScanUpon startup, Pyro 7 automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the device to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.
Preset Grouping & Pairing
Easy Setup, Ready to goPyro 7 supports preset grouping and pairing, removing the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.
Real-Time Messaging Protocol
RTMP StreamingWith the HollyView App and the power of RTMP just input your wireless key band connect to 4G LTE to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube, Twitch, TikTok, and more. Pyro 7 offers a convenient live-streaming experience.

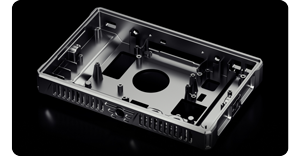

Magnesium Alloy Chassis
Lighter, stronger, stifferThe shell of Pyro 7 is manufactured using aerospace-grade magnesium-aluminium alloy which is 30% lighter, and more robust, rigid and offers improved heat dissipation than aluminium-only models.
