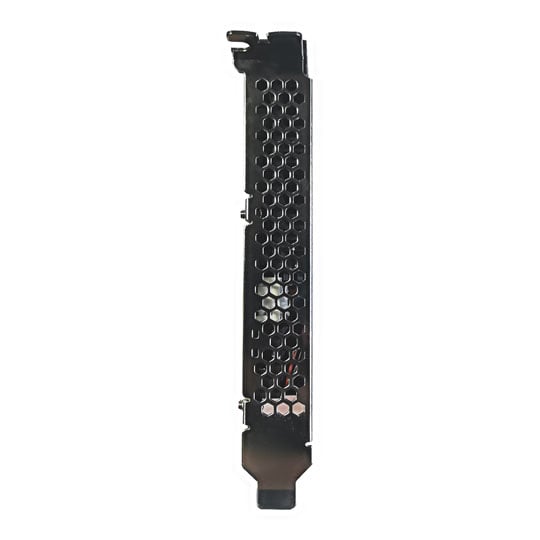

HighPoint SSD7540 M.2 NVMe 8x PCIe 4.0 SSD Raid Controller

HighPoint 7540 PCIe Gen4 M.2 NVMe RAID Controller

HighPoint’s 7500 Series combine dedicated, cutting edge PCIe Gen4 x16 host connectivity with our industry proven RAID technology to deliver unbeatable storage performance.

The dedicated PCIe 4.0 x16 host interface enables each NVMe SSD to interface directly with the system CPU to ensure maximum transfer performance and near instant response time.

Stand-Alone NVMe RAID Solution

Unlike most PCIe Gen4 NVMe storage devices in today’s marketplace, which are tied to a specific hardware platform or brand of SSD or motherboard, HighPoint SSD7500 series controllers are truly independent NVMe RAID solutions.

SSD7500 series controllers do not require motherboard platforms with Bifurcation support, or any specialized software released by SSD manufactures; any AMD-based system with a dedicated PCIe 4.0 x16 slot can now take full advantage of the industry’s fastest storage solution. In addition, SSD7500 series controllers are fully backwards compatible with Intel PCIe 3.0 platforms, enabling customers to take full advantage of advanced Gen4 storage media without migrating to a new computing environment.

Comprehensive NVMe RAID Technology

• RAID 1/0 (Security & Speed) - Unique to HighPoint NVMe RAID solutions, RAID 1/0 (also known as RAID 10) requires a minimum of 4 NVMe SSD’s – it will mirror the data of one stripe array to a second, hidden stripe array for security. RAID 1/0 is capable of delivering read performance on par with RAID 0, and is superior to RAID 5 for NVMe applications. Unlike RAID 5, RAID 1/0 doesn’t necessitate additional parity related write operations, which reduce the TBW life span of NVMe SSD’s.
• RAID 0 (Speed) - Also known as a “stripe” array, this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSD’s.
• RAID 1 (Security) - This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSD’s to configure. RAID 1 is ideal for bootable volumes.

Comprehensive NVMe RAID Support

HighPoint 7500 Series NVMe RAID controllers will automatically recognize new NVMe SSD’s as single drives- no configuration necessary. In addition, our comprehensive NVMe RAID stack enables each controller to support RAID multiple RAID 0, 1 or 10 arrays, or mixed configurations of single disks and RAID storage.

Ultra-Efficient, Low-Noise Hyper-Cooling Solution

SSD7500 series RAID controllers benefit from a completely new, ground-up redesign of our proven NVMe cooling system. HighPoint’s Low-Noise Hyper-Cooling solution ensures your NVMe SSD’s consistently operate within their recommended temperature thresholds, even under sustained heavy I/O, by combining a full length anodized aluminum heat sink with an ultra-durable, near-silent fan, and high-conductivity thermal pad. This innovative, ultra- efficient cooling system rapidly transfers waste heat away from critical NVMe and controller componentry, without introducing unwanted distraction into your work environment.

NVMe RAID Management

When it comes to maintaining critical storage configurations, each customer has specific needs and preferences. Both management interfaces share universal layouts across all major operating systems, and can be administered locally or remotely via an internet connection. The Web RAID Management Interface (WebGUI) is a simple, intuitive web-based management tool and is ideal for customers who are new to RAID technology. The CLI (command line interface) is a powerful, text-only management interface designed for advanced users and professional administrators. Comprehensive user guides are available for both interfaces, and are available from each controller's Software Updates webpage.

Both interfaces were designed to streamline NVMe Storage Management. Customers can easily track TBW (Terabytes Written) and the temperature of each individual NVMe SSD, ensure the SSD7000 controller is using the fastest available PCIe slot, configure an event log with email notification, and monitor the status of critical RAID configurations in person or remotely via an internet connection.

• Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solutions
• Truly Platform Independent
• RAID 0, 1, 1/0 and single-disk
• 8 M.2 NVMe PCIe 4.0 SSD’s
• PCIe Gen 3 Compatible
• Up to 32TB capacity per controller
• Low-Noise Hyper-Cooling Solution
• Integrated SSD TBW and temperature monitoring capability
