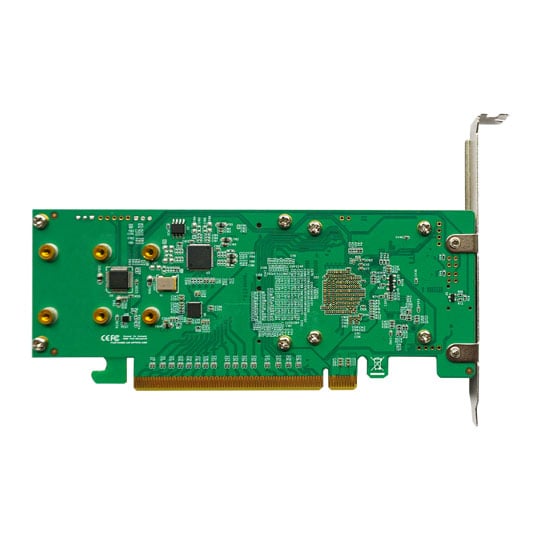

HighPoint 2-Port NVMe Internal PCIe 4.0 RAID Adapter

Low-Profile, Bootable PCIe Gen4 RAID Controller

The SSD7502 is the industry's fastest Dual-Port PCIe Gen4 RAID controller, and features bootable RAID support for Windows and Linux based platforms. The low-profile SSD7502 incorporates a state of the art Gen4 PCIe Switch Chipset to ensure each M.2 port has x4 lanes of dedicated bandwidth.

Universal Compatibility

The SSD7502 can be installed into any computing platform with an industry-standard PCIe 4.0 or 3.0 x16 slot. Like all SSD7500 series NVMe RAID controllers, the SSD7502 does not require a host platform with Bifurcation support, and is not dependent on a specific brand or model of motherboard.

Cutting-Edge Gen4 High-Speed Intelligent Switch Chipset

The SSD7502 incorporates Broadcom's Next-Gen PCIe 4.0 switch chipset, which ensures maximum transfer bandwidth is available for each device port, at all times. Up to x4 dedicated lanes can be allocated to each M.2 NVMe SSD.

Bootable RAID Solution for Linux & Windows Platforms

The SSD7502 can be used to configure bootable RAID or single NVMe SSD configurations for Windows and Linux systems. Optional UEFI downloads and complete installation guides are available for each supported platform.

Gen4 Hyper Cooling System

Maximizing Gen4 NVMe storage performance without the proper implementation of modern cooling apparatus is a risky proposition. PCIe 4.0 devices and NVMe SSD’s generate considerable heat under heavy load. To combat the threat of overheating, SSD7500 Series RAID controllers are equipped with our innovative Gen4 NVMe Hyper-Cooling System. "Hyper-Cooling" refers to this unique design's ability to rapidly transfer waste heat away from critical NVMe and controller componentry to ensure your NVMe SSD’s consistently operate within their recommended temperature thresholds, even under sustained heavy I/O. The anodized aluminium heat sink is equipped with ultra-durable near-silent fan and high-conductivity thermal pad.
