HH Q8FX 8-Channel Analogue Mixing Console
HH Q Series - Q8FX – Analogue Mixing Console – 4 Mic In, 3 Stereo Line In, Compression, FX, USB
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Analogue Mixing Console
HH - Q8FX

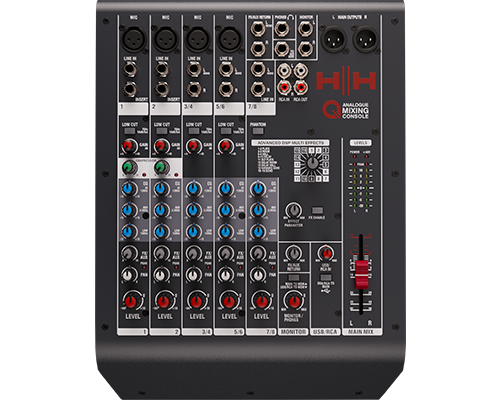

ultimate mixing controlThe HH Q8FX is an 8-channel analogue mixing console designed and engineered in the UK. The Q8FX features 4 microphone inputs that utilise low-noise microphone preamps as well as a line input option and mono insert on channels 1 and 2. The Q8FX also features 3 stereo line input channels perfect for electric pianos, synthesizers, drum machines, stereo audio from an external media player, or any other line-level sources.
Channels 1 and 2 feature an intuitive single-knob compressor that gives you control over the dynamic range of your input sources. A low cut at 75 Hz plus a 3-band EQ on each channel allows you to shape the tone of individual sound sources helping you to create a beautifully balanced mix. 16 high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays, and echoes to choose from. 2in/2out USB functionality makes the Q8FX the perfect tool for recording performances, podcasts, and music production.
All of this together with comprehensive monitoring, an auxiliary send with a stereo return, RCA in and out, global phantom power, pan on each channel, and an 8-point LED meter for your main mix all housed in a robust chassis make the Q8FX a complete portable powerhouse for traveling musicians and engineers alike.
4 x XLRMic Inputs
8Channels
3-BandEQ
At A Glance
• 8-channel analogue mixing console
• 4 microphone inputs with low-noise microphone preamps
• Line input option and mono insert on channels 1 and 2
• Channels 1 and 2 features a single-knob compressor
• Low cut at 75 Hz plus a 3-band EQ on each channel
• 3 stereo line input channels
• Designed and engineered in the UK
The Q Series
Analogue Mixing ConsolesThe HH Q Series brings decades of British design and engineering to your audio productions. The series consists of 4 analogue mixing consoles which cover an array of live sound applications (6 channels, 8 channels, 12 channels, and 16 channels). 2in/2out USB expands the functionality of all Q Series mixers even further making these mixers a great tool for music production and recording live performances or podcasts. The Q Series’ comprehensive channel strip allows you to take complete control over the tonal shape, dynamics, and depth of your mixes with low-noise mic-preamps, 3-band EQ, single knob compression, and high-quality DSP effects.
HH Audio Q Series Analogue Mixers
The Tech Spec
| Features | Specification | Mic Inputs | 4 x XLR CH1-6 |
|---|---|
| Line Inputs (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH3-6 |
| EQ | 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel |
| Compressor | 2:1 Ratio, 9dB Makeup Gain, -8dBu input threshold (max compression, CH1-2) |
| Monitors | Stereo ¼” 6.3mm TRS sockets |
| Phones | Mono ¼” 6.3mm TRS |
| Effects | 16 Reverb and Delay effects with enable switch and parameter control |
| AC Power | Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included) |
| Line Inputs (Mono) | 2 x ¼” 6.3mm TRS CH1-2 |
| Line Inputs (Stereo) | 1 x Stereo ¼” 6.3mm TRS CH7-8 |
| Low Cut | 75Hz cut off @ 18dB/Octave (CH1-6) |
| Main Outputs | Balanced Stereo XLR |
| FX Send | Mono ¼” 6.3mm TRS |
| RCA | Stereo Phono Sockets |
| USB Audio | Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz |
