HH Q6FX 6-Channel Analogue Mixing Console
HH Q Series - Q6FX – Analogue Mixing Console – 2 Mic In, 2 Stereo Line In, FX, USB
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Analogue Mixing Console
HH - Q6FX

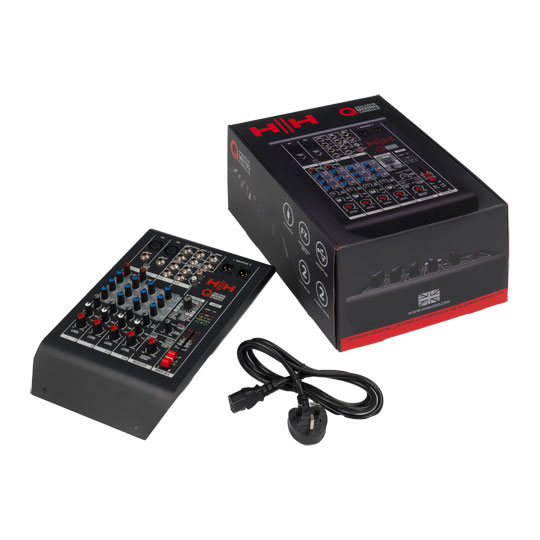

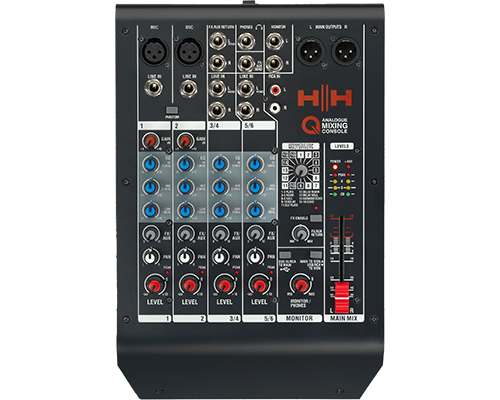

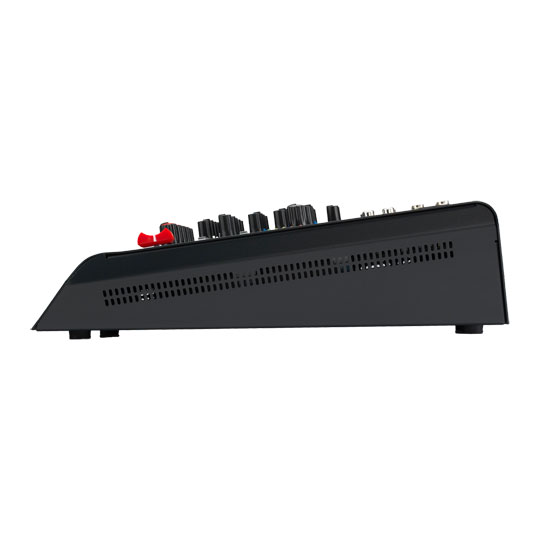

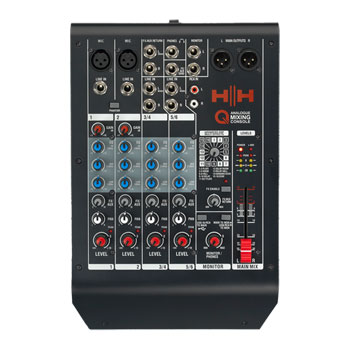

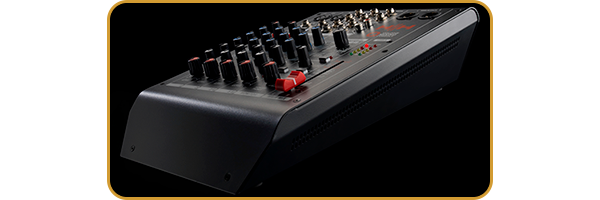

ultimate mixing controlThe HH Q6FX is a compact 6-channel analogue mixing console designed and engineered in the UK. The Q6FX features 2 mono input channels with microphone inputs that utilise low-noise microphone preamps as well as a line input option on each channel. The mono input channels sit alongside 2 stereo line input channels perfect for electric pianos, synthesizers, drum machines, stereo audio from an external media player, or any other line-level sources.
With 4 banks of 3-band EQ and 16 high-quality DSP effects, the Q6FX gives you full control over your audio productions. 2in/2out USB functionality makes the Q6FX the perfect tool for recording performances, podcasts, and music production.
All of this combined with comprehensive monitoring, an auxiliary send with a stereo return, RCA in, global phantom power, pan on each channel, and a 4-point LED meter for your main mix all housed in a robust chassis make the Q6FX a complete portable powerhouse for traveling musicians and engineers alike.
2 x XLRMic Inputs
6Channels
3-BandEQ
At A Glance
• Compact 6-channel analogue mixing console
• 2 mono input channels with microphone inputs
• Aux send with a stereo return, RCA in, global phantom power and pan on each channel
• 4 banks of 3-band EQ and 16 high-quality DSP effects
• Mono input and 2 stereo line inputs
• Low-noise microphone preamps
• Designed and engineered in the UK
The Q Series
Analogue Mixing ConsolesThe HH Q Series brings decades of British design and engineering to your audio productions. The series consists of 4 analogue mixing consoles which cover an array of live sound applications (6 channels, 8 channels, 12 channels, and 16 channels). 2in/2out USB expands the functionality of all Q Series mixers even further making these mixers a great tool for music production and recording live performances or podcasts. The Q Series’ comprehensive channel strip allows you to take complete control over the tonal shape, dynamics, and depth of your mixes with low-noise mic-preamps, 3-band EQ, single knob compression, and high-quality DSP effects.
HH Audio Q Series Analogue Mixers
The Tech Spec
| Features | Specification | Mic Inputs | 2 x XLR CH1-2 |
|---|---|
| Line Inputs (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH3-6 |
| Main Outputs | Balanced Stereo XLR |
| FX Send | Mono ¼” 6.3mm TRS |
| Effects | 16 Reverb and Delay effects with enable switch |
| AC Power | Universal 100-240v ~ 60/60Hz (IEC C13 Socket, AC Cord Included |
| Line Inputs (Mono) | 2 x ¼” 6.3mm TRS CH1-2 |
| EQ | 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel |
| Monitors | Stereo ¼” 6.3mm TRS sockets |
| Phones | Mono ¼” 6.3mm TRS |
| USB Audio | Inputs/Outputs: 2-in/2-out, 16-bit, 24-bit, Sample rate: 48kHz |
