HH Q16FX 16-Channel Analogue Mixing Console
HH Q Series - Q16FX – Analogue Mixing Console – 10 Mic In, 4 Stereo Line In, 2 Sub, Comp, FX, USB
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £11.16 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Analogue Mixing Console
HH - Q16FX

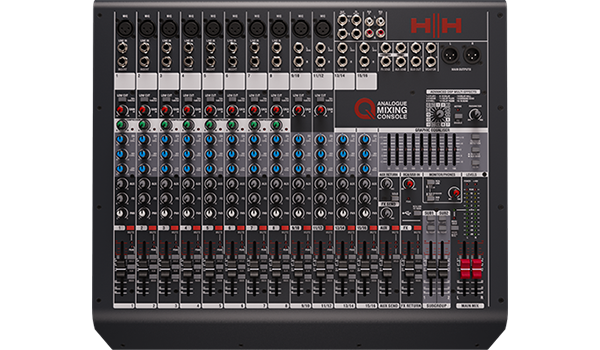

ultimate mixing controlThe HH Q16FX is a 16-channel analogue mixing console designed and engineered in the UK. The Q16FX features 16 input channels: 10 mono channels with microphone inputs using low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.
Channels 1 to 8 feature an intuitive single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.
16-high-quality DSP effects provide even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.
The Q16FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q16FX the perfect tool for recording performances, podcasts, and music production.
All of this, together with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q16FX a complete portable powerhouse for traveling musicians and engineers alike.
10 x XLRMic Inputs
16Channels
3-BandEQ
At A Glance
• 16-channel analogue mixing console
• 16 input channels: 10 mono channels with microphone inputs
• Line-in option on each channel alongside 4 stereo line input channels
• Channels 1 to 8 feature a single-knob compressor
• Low cut at 75 Hz plus a 3-band EQ on each channel
• 16-high-quality DSP effects
• Designed and engineered in the UK
The Q Series
Analogue Mixing ConsolesThe HH Q Series brings decades of British design and engineering to your audio productions. The series consists of 4 analogue mixing consoles which cover an array of live sound applications (6 channels, 8 channels, 12 channels, and 16 channels). 2in/2out USB expands the functionality of all Q Series mixers even further making these mixers a great tool for music production and recording live performances or podcasts. The Q Series’ comprehensive channel strip allows you to take complete control over the tonal shape, dynamics, and depth of your mixes with low-noise mic-preamps, 3-band EQ, single knob compression, and high-quality DSP effects.
HH Audio Q Series Analogue Mixers
The Tech Spec
| Features | Specification | Mic Inputs | 10 x XLR CH1-12 |
|---|---|
| Line Inputs (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH9-12 |
| EQ | 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel |
| Compressor | 2:1 ratio 9dB makeup gain, -8dBu input threshold (max compression, Ch1-8) |
| Monitors | Stereo ¼” 6.3mm TRS Sockets |
| FX Send | Mono 1/3” 6.3mm TRS |
| Phones | Mono ¼” 6.3mm TRS |
| Effects | 16 Reverb and Delay effects with enable switch and parameter control |
| USB Audio | Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz |
| Line Inputs (Mono) | 8 x ¼” 6.3mm TRS CH1-8 |
| Line Inputs (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH13-16 |
| Low Cut | 75Hz cut off @ 18dB/Octave (CH1-12) |
| Main Outputs | Balanced Stereo XLR |
| Sub Outputs | 2 x ¼” 6.3mm TRS Sockets |
| FX Send | Mono ¼” 6.3mm TRS |
| RCA | Stereo Phono Sockets |
| Graphic EQ | Master 9 Band Graphic EQ with feedback detect, on/off toggle |
| AC Power | Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included) |
