Heusinkveld Sprint Pedal Baseplate For Sprint Pedals
Heusinkveld Sprint Pedal Baseplate, For Mounting Sprint Pedals, Brake Forces Up To 65kg, Easy Cable Management
Email me when the availability or price changes
Finance this product
- From £9.79 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

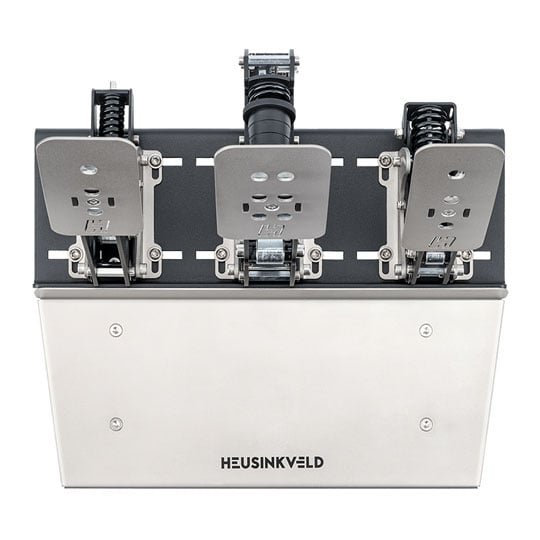

Heusinkveld Sprint Pedal Baseplate
With the brake of the Sprint pedals being able to cope with high forces (up to 65kg), a sturdy mount to your simulator rig is an absolute must. Standard pedal mounting plates of rigs often show excessive flex under these loads. This baseplate helps to create a solid platform to mount the pedals on your rig. The slotted mounting grooves allow for easy adjustment of individual pedal positions.
The baseplate assembly consists of multiple elements: A pedal plate on which you mount the pedals, a height adjustable heel plate as well as two brackets which are used to secure the baseplate to an underlying frame.
PLEASE NOTE: Pedals are not included with Baseplate. Images used are for illustrative purposes ONLY.
Truly Solid
The mounting holes on the brackets are compatible with TM T3PA and T3PA Pro (235mm) pedal sets. Six mounting points on the brackets are provided in total, giving plenty of options mount the baseplate to aluminium profiles or create your own drilling template to install the baseplate to your rig.
Please note that this baseplate does not allow you to install the pedals on a floor without further support, or in a wheel stand where there is no solid connection between the pedals and the seat. A full frame rig/simulator is always required.
Adjust It Your Way
The baseplate mounting points for the pedals are slots which allow for lateral adjustment of individual pedals. The lateral slots are 29mm for the brake pedal and 24mm for the throttle and clutch pedal. Every single pedal can also be adjusted 12,5mm backwards and forwards through the slots in the pedal feet themselves.
The included t-nuts allow for convenient fine-tuning of the pedal position by slightly loosening the pedal mounting bolts from the top of the pedal plate, now you are able to change the position without having to remove the whole pedal.
Features
• Only 15mm deep
• Converts 50.8mm to 70mm
• Mounting materials and tools included
