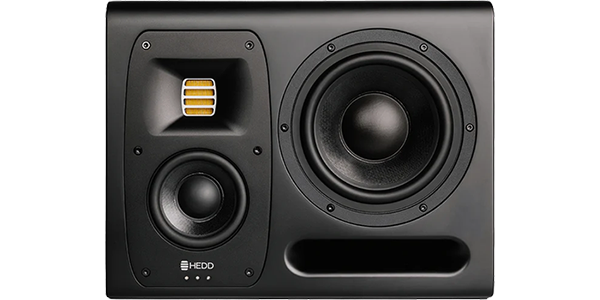

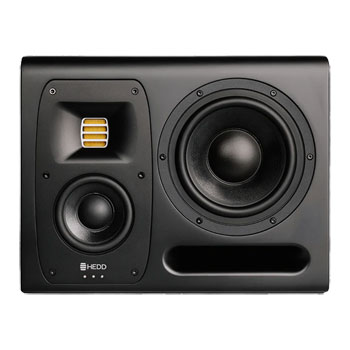

HEDD Type 20 A-Core (Right) 3-Way Analogue Monitor
HEDD - TYPE 20 A-CORE (Right) 3-way Active Near- to Mid-field Speaker, 7" and 4" Custom Woofers, 3 x 300 W ICEpower
Email me when the availability or price changes
Finance this product
- From £44.69 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £39.59 / month (APR 15.9%)
3-Way Analogue Monitor
HEDD- TYPE 20 A-CORE
(Right)
3-way active near- to mid-field speakerThe HEDD TYPE 20 A-CORE expands the A-CORE range into a larger three-way format ideal for professional studios, mastering rooms, and discerning listeners. Built with the same premium components as our MK2 monitors and Tower Mains system, it provides extended headroom, greater depth, and outstanding clarity across the full frequency range.
Every element is engineered for long-term accuracy, from the handcrafted AMT tweeter to the custom honeycomb composite woofers and amplification. With no DSP or software reliance, the TYPE 20 A-CORE's low latency analogue performance delivers a natural signal path that translates truthfully in any environment.
120 dBMax SPL
32 Hz - 40 kHzFrequency Range
7" and 4"Woofers
Amazing Features
• Pure analogue signal path – no converters, low latency, no software reliance
• 7" and 4" custom honeycomb woofers
• 3 x 300 W ICEpower Class D amplifiers
• High-definition Air Motion Transformer driver for clear, accurate upper mid and high frequencies
• Analogue filter board for natural, phase-coherent sound reproduction
• High and Low shelving EQ (±6 dB, continuous) to adjust for your room and tastes
• Designed and assembled in Berlin with premium components
Premium Components, World-Class Performance

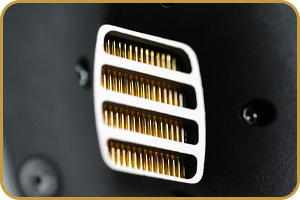

Air Motion TransformerHandmade in Berlin using high quality components, the HEDD Air Motion Transformer delivers a precise and wonderfully open sound. Thanks to ultra high frequency extension and remarkable transient response, natural sound reproduction is not distorted in any way.

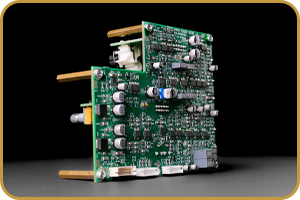

Analogue ExcellenceA-CORE monitors feature HEDD's most sophisticated and reliable analogue filter board to date, allowing us to tune every speaker to the most natural response and create a flawless, low-latency analogue signal path.
Ease of UseThe A-CORE range is designed with simplicity in mind with XLR, TRS, and RCA inputs and a built-in EQ to match room acoustics and user taste letting you plug in and get straight to the music.
Designed and made in BerlinAll HEDD products are designed and assembled in Berlin by talented engineers and craftspeople who draw from a rich history in audio reproduction to create products tuned to the key of you.
A-CORE: Our most advanced analog speakers yet.
The Tech Spec
| Features | Specification | Drivers | 3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter |
|---|---|
| Power | 3x300 W ICEpower amplification (85-264 V) |
| Frequency Range | 32 Hz - 40 kHz |
| Crossovers | 250 Hz / 3.200 Hz |
| Maximum SPL | SPL 120 dB SPL (sound pressure level) per pair at 1m |
| Inputs | XLR, TRS (balanced), RCA (unbalanced) |
| Design | Heavy duty MDF cabinet, black satin finish, front panel LED indicators |
| Dimensions | 280 x 358 x 338 mm |
| Weight | 15.4 kg per unit |
