HEDD - Type 20 MK2 Pair , Black + Zaor MIZA V Stand 42 Pair
HEDD - Type 20 MK2 (Pair) & Zaor MIZA V-Stand 42
Email me when the availability or price changes
Frequently Bought Together
High-End Studio Monitoring In Style!
HEDD - 'Type 20' MK2 Studio Monitors
&
Zaor - MIZA V-Stand 42
Please note: Ordering from outside the UK? Our website is currently disabled for automatic export shipping,
but please email us at [email protected] to arrange a shipping quote.
available for a limited time only!Take advantage of Scan Pro Audio’s fantastic limited offer on a pair of HEDD’s game changing Type 20 MK2 Studio Monitors and accompanying monitor stands from Zaor, with their highly aesthetic MIZA V-Stand 42. Not only will your studio be receiving a massive upgrade in terms of monitoring, but you’ll also be adding some serious style to your studio too! Read on below for an in-depth look at the items included in this incredible offer! Be sure to act quickly to secure yours now!

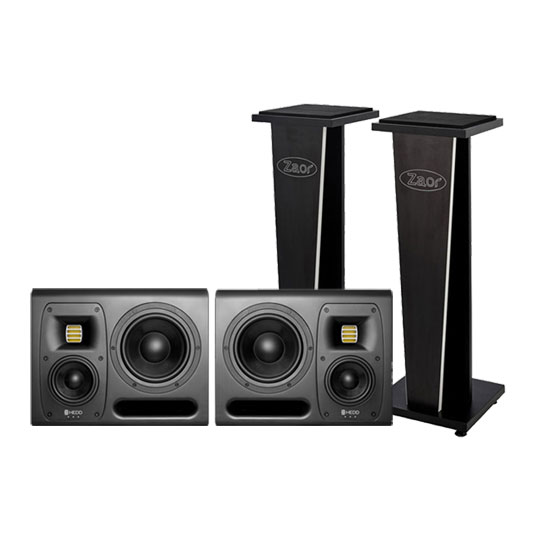

what's included?
• HEDD - Type 20 MK2 Studio Monitors x2
• Zaor - MIZA V-Stand 42 x2

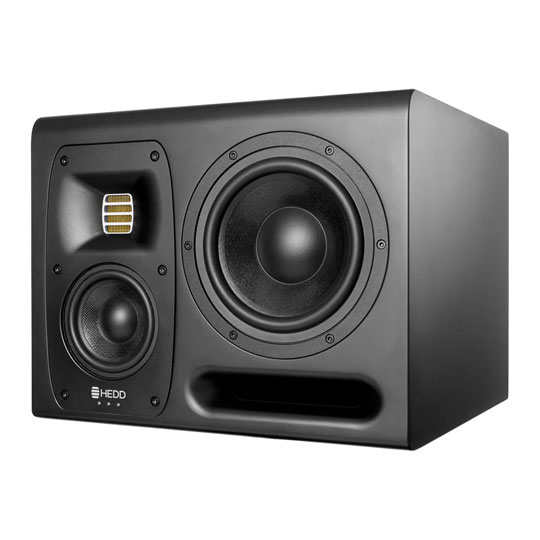

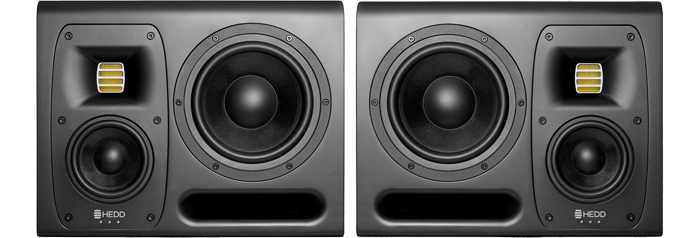

HEDD - 'Type 20' MK2
(Pair)
INTRODUCING MK2 STUDIO MONITORSThe mk2 range from HEDD improve further a fantastic product line, which itself was the result of decades of speaker technology research. It follows on from designer Klaus Heinz work at Adam Audio where he was responsible for many legendary models such as the incredibly popular A7X. All models retain the AMT (Air Motion Transformer) driver that provides sharp and fast treble and combines it with two new technologies for making the speakers more accurate and responsive.
Firstly, they have now integrated the lineariser DSP plugin that accompanied the first-generation units inside the speaker itself. This works by slightly delaying certain frequencies so that all of them leave the speaker at exactly the same time, resulting in a perfect, phase coherent impulse response. The listener will sense the that the bass notes will appear much punchier and tighter, especially in the sub octaves, as lower waves take longer to develop than the treble frequencies, alongside an improves spatial response. Surprisingly the integrated version has less latency than the previous plugin, coming in at only 10ms.
“The new HEDD product line demonstrates what can be achievedtoday both in audio quality and control versatility. We believe that we are about to set a new benchmark within MI / Pro Audio whilst increasing the company’s potential to be successful in both the Broadcast- and Consumer Audio realm.” - Klaus Heinz, CTO HEDD Audio
22 kΩInput Impedance
20 - 40,000 HzFrequency Response (-3dB)
120 dBMaximum SPL (Pair)
C.O.P.
PIN-POINT TRANSIENT RESPONSEThe other addition from adding the DSP in box is that in enables the “COP” (closed or ported) option. Since the inception of loudspeakers, there have been 2 differing design approaches to achieve a good bass response: closed box design which made the Yamaha NS-10’s & Neumann KH310 so revered and bass reflex speakers, or ported designs.
By offering removable plugs for the bass ports, in tandem with advanced FIR (Finite Impulse Response filtering), HEDD now offers users the choice between both of these worlds: A pin-point transient response/optimum accuracy (closed cabinet approach) or the advantages of a dynamic and low-reaching bass-ported design with greater SPL Closing the ports obviously affects the tonal balance, so there is a switch on the rear of the unit to change the balance accordingly to compensate.
Adding the DSP also has an additional advantage for connectivity, as alongside the analogue input, it is now also possible to digitally connect directly to the speakers using AES digital signals over XLR connection and includes a though socket to connect to additional speakers.
Powerful DSP Board To Enable 3 Unique Features!
1. On-board Lineariser®:Implemented in the MK2 and subwoofer models is HEDD's well-known Lineariser®, a phase linearisation tool that leads to perfect impulse response and an audibly improved spatial reproduction. The MK2 Monitors have a new and improved lacquer for higher durability and better looks.
2. CoP Technology:Users for the first time can choose between the energy and bass-capacities of a modern bass-port design and the painstaking precision and control of a closed cabinet approach. Removable plugs for the bass reflex tubes, together with accordingly designed filter set ups allow optimum results in either mode.
3. Phase Linear Sub-Satellite System:HEDD are introducing a completely phase linear Sat-Sub system.
These are the first Satellite Sub systems that are completely “…right in time” by combining a phase linearized subwoofer with a correspondingly time delayed (group delayed) satellite output.
Introducing HEDD 'MK2' Studio Monitors
Watch HEDD / ADAM founder Klaus Heinz explain some of the key innovations of the brand-new MK2 series of professional active loudspeakers. The new range includes new MK2 models and, as a first, the powerful BASS 08 and BASS 12 subwoofers - all handcrafted in Berlin, Germany.
42" Fixed Studio Monitor Stands

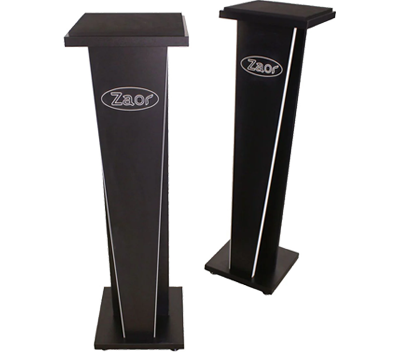

Zaor - MIZA V-Stand 42
(Pair)
Premium Studio Monitor StandsSo, you’ve finally picked up the high-end studio monitors you’ve been dreaming about! The next step now is to not skimp on monitor stands! Allow us to introduce Zaor’s MIZA V-Stands, a perfect compromise between cost and performance. These highly stylish monitor stands feature a 300mm x 300mm top plate and are capable of handling a maximum load of 40kg!
Zaor’s MIZA V-Stands also feature Aerstop pads for decoupling your monitors from the room – a must for when monitoring quality is of the upmost importance. And when you add MIZA V-Stands to your setup, you can rest assured that yours will always be top notch!
at a glance
• Aerstop pad for speaker decoupling from room
• Holds up to 40kg of weight
• Top plate 300x300 mm
• Fixed 42" Height
• Adjustable feet
'The Best Standards of Technical Performance & Design'
300×300 mm Top PlateMIZA V-Stands were designed with two main criteria in mind: they should be affordable and yet designed to the best standards of technical performance and design. Zaor chose the same materials as for the other items in the MIZA range, but with two particulars, that make it a very professional and highly useable speaker stand.
Zaor added a pad of AERSTOP on top of the stand, which helps isolate the speaker from the stand, reducing the propagation of lower frequency content through the speaker to the floor and thus the room!
HEDD TYPE 20 MK2: Sublime, compact powerhouse

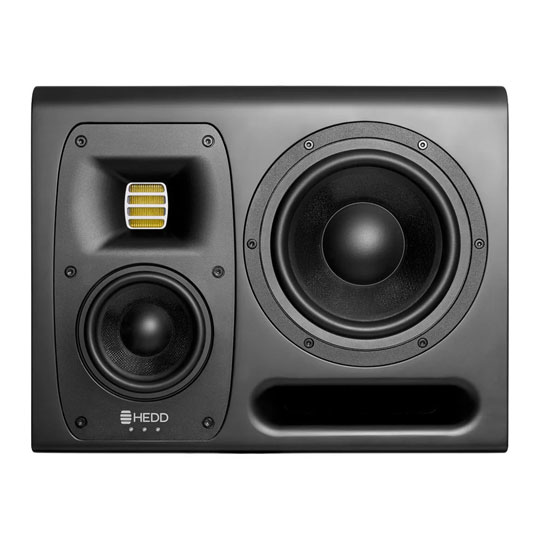

HEDD - 'Type 20' MK2
The Tech Spec
| Features | Specification |
|---|---|
| Woofer (honeycomb diagram) | 7’’ (2’’ voice coil) |
| Midrange (honeycomb design) | 4’ (1.25’’ voice coil) |
| Tweeter | HEDD AMT |
| Crossover frequencies (48 db/oct) | 250 / 3 200 Hz |
| Input analog and digital (AES) | 2x XLR |
| Input impedance (balanced) | 22 kΩ |
| Input gain | ± 12 dB |
| Input sensitivity: 0 dB = 90 dB SPL/m | -10 / -4 / 0 / +4 dB |
| Output: AES “through” | XLR |
| HEDD Lineariser®, disengageable, delay | 10 ms |
| Shelve filters high / low (.5 dB steps) | ± 4 dB |
| LF range (-3 dB): normal / extended / satellite | 32 / 26 / 80 Hz |
| Desk filter: small / medium / large | 180 Hz (-1 / -2 / -4 dB) |
| Frequency response (-3 dB) | 32 - 40 000 Hz |
| Maximum SPL (per pair) | 120 dB |
| Power amplifier / universal mains 110 - 240 V | 3x 300 W ICEpower |
| AD/DA Conversion | 96 kHz / 24 Bit |
| Cabinet with satin lacquer finish | Black |
| Dimensions (H x W x D) | 280 x 358 x 338 mm |
| Weight | 15.4 kg |

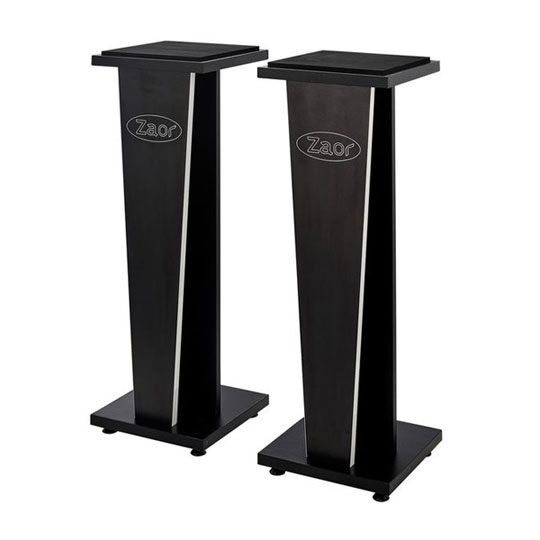

Zaor - 'MIZA V-Stand 42'
The Tech Spec
| Features | Specification | Dimensions | Height – 1071 mm Top Plate – 300 x 300mm |
|---|---|
| Package Weight | Packed in Box – 24 kg |
| Box Size | 05 x 35 x 28 cm |
| Max Load | up to 40kg |
| Top plate | 300×300 mm |
