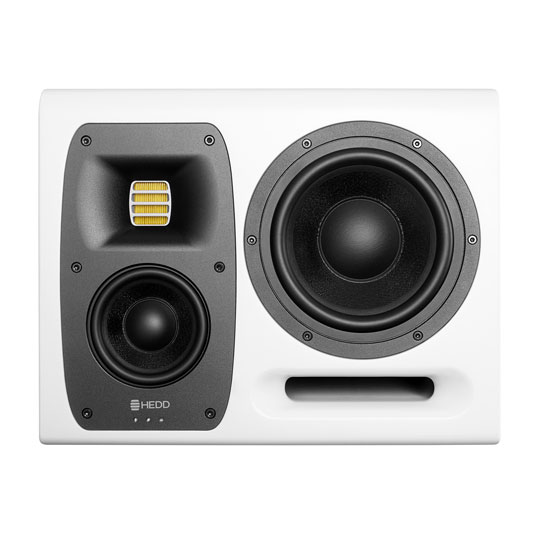

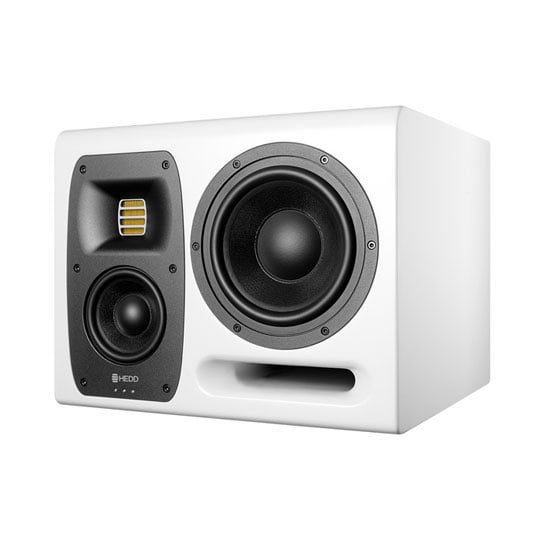

HEDD - 'Type 20' MK2 L Studio Monitor (White)

HEDD - 'Type 20' MK2 L, White Studio Monitor, 20 - 40 kHz Freq. Response, 300W, Lineariser DSP

Thumbnail 1 : HEDD - 'Type 20' MK2 L Studio Monitor (White) Thumbnail 2 : HEDD - 'Type 20' MK2 L Studio Monitor (White)
Scan code: LN112258 Manufacturer code: TYPE 20 MK2 L White
£1,776.00Item currently awaiting an ETA
Pre order
From £41.51 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £152.65
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,776.00
Total inc. interest: £1,831.74
Monthly Payment: £78.51
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,776.00
Total inc. interest: £1,884.23
Monthly Payment: £53.83
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,776.00
Total inc. interest: £1,937.70
Monthly Payment: £41.51
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,776.00
Total inc. interest: £1,992.09
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £44.36 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

HEDD - 'Type 20' MK2 L

hedd type 20 mk2 white

Please note: Ordering from outside the UK? Our website is currently disabled for automatic export shipping,
but please email us at [email protected] to arrange a shipping quote.

INTRODUCING MK2 STUDIO MONITORSThe mk2 range from HEDD improve further a fantastic product line, which itself was the result of decades of speaker technology research. It follows on from designer Klaus Heinz work at Adam Audio where he was responsible for many legendary models such as the incredibly popular A7X. All models retain the AMT (Air Motion Transformer) driver that provides sharp and fast treble and combines it with two new technologies for making the speakers more accurate and responsive.

Firstly, they have now integrated the lineariser DSP plugin that accompanied the first-generation units inside the speaker itself. This works by slightly delaying certain frequencies so that all of them leave the speaker at exactly the same time, resulting in a perfect, phase coherent impulse response. The listener will sense the that the bass notes will appear much punchier and tighter, especially in the sub octaves, as lower waves take longer to develop than the treble frequencies, alongside an improves spatial response. Surprisingly the integrated version has less latency than the previous plugin, coming in at only 10ms.

“The new HEDD product line demonstrates what can be achievedtoday both in audio quality and control versatility. We believe that we are about to set a new benchmark within MI / Pro Audio whilst increasing the company’s potential to be successful in both the Broadcast- and Consumer Audio realm.” - Klaus Heinz, CTO HEDD Audio

22 kΩInput Impedance

20 - 40,000 HzFrequency Response (-3dB)

120 dBMaximum SPL (Pair)


hedd type 20 mk2 black

PIN-POINT TRANSIENT RESPONSEThe other addition from adding the DSP in box is that in enables the “COP” (closed or ported) option. Since the inception of loudspeakers, there have been 2 differing design approaches to achieve a good bass response: closed box design which made the Yamaha NS-10’s & Neumann KH310 so revered and bass reflex speakers, or ported designs.

By offering removable plugs for the bass ports, in tandem with advanced FIR (Finite Impulse Response filtering), HEDD now offers users the choice between both of these worlds: A pin-point transient response/optimum accuracy (closed cabinet approach) or the advantages of a dynamic and low-reaching bass-ported design with greater SPL Closing the ports obviously affects the tonal balance, so there is a switch on the rear of the unit to change the balance accordingly to compensate.

Adding the DSP also has an additional advantage for connectivity, as alongside the analogue input, it is now also possible to digitally connect directly to the speakers using AES digital signals over XLR connection and includes a though socket to connect to additional speakers.

Powerful DSP Board To Enable 3 Unique Features!


1. On-board Lineariser®:Implemented in the MK2 and subwoofer models is HEDD's well-known Lineariser®, a phase linearisation tool that leads to perfect impulse response and an audibly improved spatial reproduction. The MK2 Monitors have a new and improved lacquer for higher durability and better looks.


2. CoP Technology:Users for the first time can choose between the energy and bass-capacities of a modern bass-port design and the painstaking precision and control of a closed cabinet approach. Removable plugs for the bass reflex tubes, together with accordingly designed filter set ups allow optimum results in either mode.


3. Phase Linear Sub-Satellite System:HEDD are introducing a completely phase linear Sat-Sub system.
These are the first Satellite Sub systems that are completely “…right in time” by combining a phase linearized subwoofer with a correspondingly time delayed (group delayed) satellite output.

Introducing HEDD 'MK2' Studio Monitors

Watch HEDD / ADAM founder Klaus Heinz explain some of the key innovations of the brand-new MK2 series of professional active loudspeakers. The new range includes new MK2 models and, as a first, the powerful BASS 08 and BASS 12 subwoofers - all handcrafted in Berlin, Germany.

The Tech Spec

Features Specification
Woofer (honeycomb diagram) 7’’ (2’’ voice coil)
Midrange (honeycomb design) 4’ (1.25’’ voice coil)
Tweeter HEDD AMT
Crossover frequencies (48 db/oct) 250 / 3 200 Hz
Input analog and digital (AES) 2x XLR
Input impedance (balanced) 22 kΩ
Input gain ± 12 dB
Input sensitivity: 0 dB = 90 dB SPL/m -10 / -4 / 0 / +4 dB
Output: AES “through” XLR
HEDD Lineariser®, disengageable, delay 10 ms
Shelve filters high / low (.5 dB steps) ± 4 dB
LF range (-3 dB): normal / extended / satellite 32 / 26 / 80 Hz
Desk filter: small / medium / large 180 Hz (-1 / -2 / -4 dB)
Frequency response (-3 dB) 32 - 40 000 Hz
Maximum SPL (per pair) 120 dB
Power amplifier / universal mains 110 - 240 V 3x 300 W ICEpower
AD/DA Conversion 96 kHz / 24 Bit
Cabinet with satin lacquer finish White
Dimensions (H x W x D) 280 x 358 x 338 mm
Weight 15.4 kg
Speaker Type Nearfield
Total Wattage (RMS) 300
I/O Connections
  • 1 x XLR Digital AES/EBU In
  • 1 x XLR Digital AES/EBU Out
  • 1 x XLR In
Bass Port Front
Frequency Response 32 - 40.000 Hz
Max SPL 120 dB
Bass Cone Size 7 Inch
Additional Information
Scan Code LN112258
Model Number TYPE 20 MK2 L White
GTIN 745760375424
