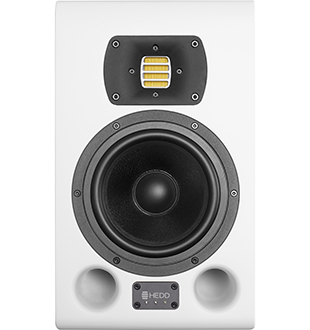

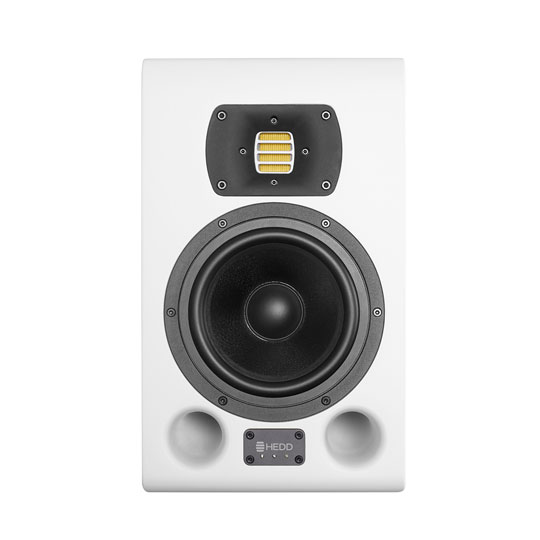

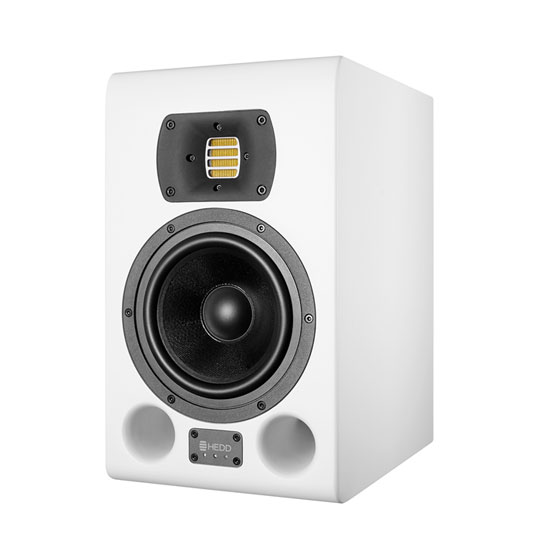

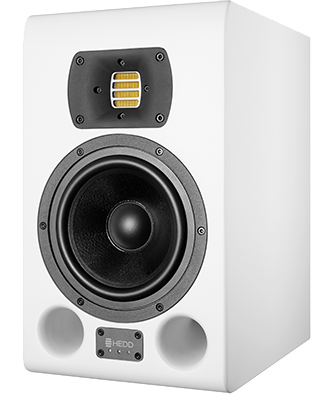

HEDD TYPE 07 MK2 White
HEDD TYPE 07 MK2 White, 7’’ (1.5’’ voice coil), HEDD AMT, Frequency response 38 - 40 000 Hz, Maximum SPL 116 dB
- SCANPROTECT Protect against installation damage for 28 days. More info
HEDD - 'Type 07 MKII'
(White)
INTRODUCING MK2 STUDIO MONITORS
Born from HEDD’s highly celebrated Series ONE studio monitor range, HEDD is thrilled to present their brand-new MK2 models and subwoofers. Three ground-breaking innovations place these new and highly-advanced DSP-powered speaker line at the very top of today’s monitoring landscape.
“The new HEDD product line demonstrates what can be achieved
today both in audio quality and control versatility. We believe that we
are about to set a new benchmark within MI / Pro Audio whilst
increasing the company’s potential to be successful in both the
Broadcast- and Consumer Audio realm.” - Klaus Heinz, CTO HEDD Audio
7"Woofer
38 - 40 000HzFrequency response (-3 dB)
116 dBMax SPL
Linear Phase Satellite System
pin-point transient responseIntegrated in the MK2 and subwoofer models is HEDD’s new ‘Lineariser’, a phase linearization tool which results in perfect impulse responses, alongside an audible improved spatial reproduction.
Since the inception of loudspeakers, there have been 2 differing design approaches to achieve a good bass response: closed box design, sometimes referred to as ‘infinite baffle’ and bass reflex speakers, or ported designs. By offering removable plugs for the bass ports, in tandem with advanced FIR (Finite Impulse Response filtering), HEDD now offers users the choice between both of these worlds: A pin-point transient response/optimum accuracy (closed cabinet approach) or the advantages of a dynamic and low-reaching bass-ported design with greater SPL.
HEDD are introducing an entirely phase linear Sat-Sub system, a real first. These are the very first Satellite Sub systems which are completely ‘…right in time’ by applying switchable group delay at the satellite output. The potential listener distances between subwoofers and satellites are able to be compensated in a +2m range, together with HEDD MK2 monitors a Linear Phase satellite system is able to be realised.
Powerful DSP Board To Enable 3 Unique Features!
1. On-board Lineariser®:Implemented in the MK2 and subwoofer models is HEDD's well-known Lineariser®, a phase linearisation tool that leads to perfect impulse response and an audibly improved spatial reproduction. The MK2 Monitors have a new and improved lacquer for higher durability and better looks.
2. CoP Technology:Users for the first time can choose between the energy and bass-capacities of a modern bass-port design and the painstaking precision and control of a closed cabinet approach. Removable plugs for the bass reflex tubes, together with accordingly designed filter set ups allow optimum results in either mode.
3. Phase Linear Sub-Satellite System:HEDD are introducing a completely phase linear Sat-Sub system.
These are the first Satellite Sub systems that are completely “…right in time” by combining a phase linearized subwoofer with a correspondingly time delayed (group delayed) satellite output.
Introducing HEDD 'MK2' Studio Monitors
Watch HEDD / ADAM founder Klaus Heinz explain some of the key innovations of the brand-new MK2 series of professional active loudspeakers. The new range includes new MK2 models and, as a first, the powerful BASS 08 and BASS 12 subwoofers - all handcrafted in Berlin, Germany.
The Tech Spec
| Features | Specification | Woofer (honeycomb diagram) | 7’’ (2’’ voice coil) |
|---|---|
| Tweeter | HEDD AMT |
| Tweeter | HEDD AMT |
| Crossover frequencies (48 db/oct) | 2 300 Hz |
| Input analog and digital (AES) | 2x XLR |
| Input impedance (balanced) | 22 kΩ |
| Input gain | ± 12 dB |
| Input sensitivity (A/D modulation) | -10 /-4 / 0 / +4 dB |
| Output: AES “through” | XLR |
| HEDD Lineariser®, disengageable, delay | 10 ms |
| Shelve filters high / low (.5 dB steps) | ± 4 dB |
| LF range (-3 dB): normal / extended / satellite | 38 / 30 / 80 Hz |
| Desk filter: small / medium / large | 180 Hz (-1 / -2 / -4 dB) |
| Frequency response (-3 dB) | 38 - 40 000 Hz |
| Maximum SPL (per pair) | 116 dB |
| Power amplifier / universal mains 110 - 240 V | 2x 100 W ICEpower |
| AD/DA Conversion | 96 kHz / 24 Bit |
| Cabinet with satin lacquer finish | black or white |
| Dimensions (H x W x D) | 370 x 220 x 300 mm |
| Weight | 9.9 kg |
| Warranty | 2 years |
