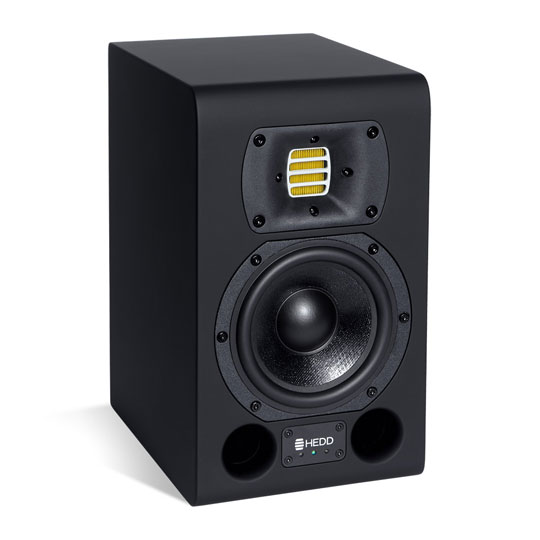

HEDD Type 05 Studio Monitor (Single)

HEDD Type 05 Compact 2-Way Monitor Speaker with AMT & Card Slot, 2 x 50w ICEpower Amp, 6" Woofer, 45Hz - 50kHz

HEDD
Scan code: LN83550 Manufacturer code: Type 05 Request call
£366.00
Pay on Scan Finance with a 10% deposit from just £9.14 / month (APR 15.9%)
Mid Range
Free Delivery Delivery options Free By DPD On 23rd Oct 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview

Analog Studio Monitors with Digital Minds


HEDD (Heinz Electrodynamic Designs) was established in 2015 by Klaus Heinz and his son Frederik Knop. For the last 40 years Klaus has been commited to the development of high-end speakers which can be found in a diverse range of applictions from recording studios, mastering suites, broadcast and Hi-Fi. Klaus founded the well known ADAM Audio and served as Managing Director and Head of R&D until recently. Now we get to see the fruits of HEDD's labour with the Type 05 and Type 07 nearfields.

Featuring a unibody cabinet construction, custom designed woofer, Air Motion Transformer (AMT) and revolutionary HEDD Bridge the range is shaping up to be something special indeed.


The Ultimate Multitasker
HEDD Audio Over IP


The Type 05 model is a real multitasker. Its strong performance, digital connectivity, and compact size turn it into the ideal choice for mobile broadcast stations, recording studios, multichannel-setups, and VoIP conferences. The Type 05 is based on a 2-way-system that provides a solid fundament and a high degree of accuracy in the frequency range between 45Hz and 50kHZ by coordinating the interplay between a 6“-woofer and a high-resolution Air Motion Transformer (HEDD AMT).

• 1) HEDD Bridge: Inputcard-slot for digital connectivity (available: Dante & AES67, AES3, USB2)
• 2) Low Shelf filter: ± 2dB at 200Hz // ± 4dB at 50Hz
• 3) High Shelf filter: ± 2dB at 5kHz // ± 4dB at 20kHz
• 4) Gain: Variable input gain between – 30dB and + 6dB, 0 dB = 440mV (-4.9dBu, -7.1dBV) input voltage deliver 90dB SPL (1m); Input Gain = 0dB
• 5) Source: 3-Position slide switch for input selection: Left: HEDD Bridge, Center: RCA (Cinch), Right: XLR
• 6) Unbalanced RCA (Cinch) input
• 7) Balanced XLR input
• 8) Power connection: All HEDD monitors come with regulated Universal Mains, working from 85V-264V. Regulated means that our amps will work at their full capacity under any condition.


This combination of unique and expertly chosen components and analog filters as well as our longstanding experience in attuning these various components to perfectly complement each other results in a nearly linear frequency response and an outstanding signal fidelity of HEDD’s studio monitors. And there is more: Perhaps the greatest highlight that our new models come with is the input-card system that can be found on each monitor’s back panel: our three optionally obtainable HEDD Bridge modules allow our loudspeakers to read either AES3/EBU or – and this is a truly innovative – even the newest Audio-over-IP protocols like Dante Audio or Ravenna Network/AES67. In the course of 2016, we will in addition introduce USB2 and Wireless cards in order to further optimize your audio workspace and make our products future-proof in every aspect.


Audio Over IP
HEDD Audio Over IP


The Future of Multi-Channel High Resolution Audio
Type 05 is, like all of our Series ONE studio monitors, additionally equipped with a modular connection system. Besides standard analog XLR and RCA connections, the Type 05 features an empty card slot that we have specifically designed to read AES3/EBU, Dante, or Ravenna Network (AES67) input cards.


HEDD Bridge System


HEDD Audio Over IP


Advanced Connectivity
Today, a number of digital protocols have become established constants in various audio sectors. While they certainly exhibit different advantages, they all essentially focus on the transportation of audio signals. In order to secure an ideal – future-oriented, safe, and flexible – integration of our HEDD studio monitors in digitally based work-spaces, we developed our very own modular input-card system, the HEDD Bridge. The HEDD Bridge was inspired by the rather simple and yet absolutely vital idea that our speakers should feature a freely configurable system that, being located on the back panel of each monitor, allows for the integration of a digital audio protocol.

The diverse range of our HEDD Bridge modules ensures that we can provide solutions for many platforms. At the moment, we offer modules that can integrate AES3/EBU as well as modules that can – and this is unheard of – read Audio-over-IP protocols such as Dante and Ravenna Network/AES67 (in the course of 2016, we will in addition introduce input-cards that can integrate USB2 and Wireless). Not unlike many other renowned manufacturers in the professional audio sector, we are convinced that Ethernet-based multi-channel systems are the future of the studio, live music, and installation sector. While Audio-over-IP has by now become more and more prominent in mix-down, interface, and microphone technologies, this development has yet to reach the level of studio monitors. The HEDD Bridge is the first system to close this gap.
Features Drivers

Woofer: 1
Basket Ø: 6" (152mm)
Voice coil Ø: 1.5" (38mm)
Cone material: UHC cone (Ultra Honeycomb Composite)
Tweeter: 1
Type: HEDD AMT (HEDD Air Motion Transformer)
Equiv. Diaphragm Ø: 2" (56mm)

Input connectors

Analog balanced / unbalanced: XLR / RCA
Digital/HEDD Bridge Options: AES67 Ravenna, Dante, AES3/EBU

General data

Amplification (ICEpower®): 2 x 50W
Input gain: -30dB … +6dB
High Shelf EQ > 2kHz: ±4dB (at 20kHz)
Low Shelf EQ < 200Hz: ±4dB (at 50Hz)
Frequency response: 45Hz - 50kHz
THD 90dB/1m > 100Hz: =0.5%
Max SPL sine wave 100Hz - 3kHz /1m: =103dB
Max SPL peak per pair at 1m: =111dB
Crossover frequencies: 2.3kHz
Input impedance balanced / unbalanced: 10kO / 47kO
Weight: 6.7kg
Height x Width x Depth: 308mm x 180mm x 228mm
Warranty: 2 years

More information can be found in the User Manual below:
Data Sheet
Specifications
Speaker Type Nearfield
Total Wattage (RMS) 100
I/O Connections
  • 1 x RCA In
  • 1 x XLR In
Bass Port Front
Frequency Response 45Hz - 50kHz
Max SPL 111 dB
Cone Size 6 Inch
