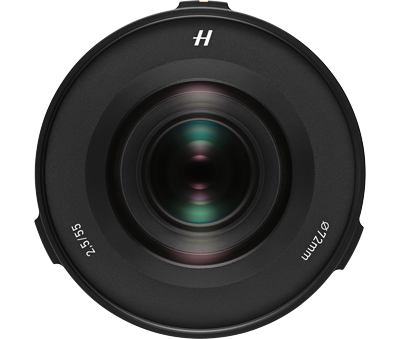

Hasselblad - 'XCD 2.5/55V Lens'
Inspiration in Every DetailEquivalent to a full-frame 43mm focal length, the XCD 2,5/55V standard lens produces a viewpoint similar to the human eye. This perspective, combined with the soft bokeh effect from the large f/2.5 aperture, makes this lens an outstanding option for full or half-length portraits and ideal for shooting documentary, still life, or daily photography. When using the XCD 2,5/55V lens, the narrow aperture and leaf shutter blades can create Hasselblad's hallmark eight-point starburst effect on bright light sources. With its compact optical design, small and lightweight focusing module, and optimised leaf shutter, XCD 2,5/55V weighs only 372g but delivers top-class optical performance.
Documentary/Portrait
Natural Perspective
for Easier Composition
Shallow DOF
Precision Optics
OUTSTANDING IMAGERYCapturing the most subtle nuances of light and shadow begins with the lens. Only with excellent resolution and colour reproduction can it provide a solid foundation for imaging. A medium format sensor has a large area and a high pixel density, posing stringent requirements for the precision of the lens. Starting with the selection of high-quality glass, Hasselblad engineers carefully grind each lens to perfect its optical quality and meet the resolution requirements of 100 million pixels.

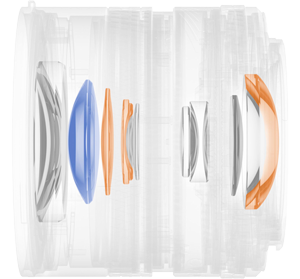

The XCD 2,5/55V lens features nine elements in eight groups, including two aspherical elements, one ED element, and one specially made large-diameteraspherical element. With a thoughtfully crafted arrangement, the lens has not only a compact size but also improves light transmittance and suppresses chromatic dispersion. Combining the XCD 2,5/55V with a Hasselblad mirrorless medium format camera yields stunning results.

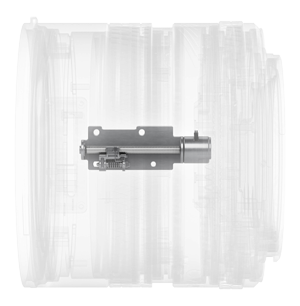

New Focusing Module
FAST, LIGHT, ACCURATEThe upgraded focusing module adopts a linear stepping motor and a lighter, smaller focusing lens group. These changes effectively eliminate any backlash from the lens group moving and, coupled with the PDAF technology of the X2D 100C, mean the focusing lens group can quickly reach the focusing position and achieve a precise stop. Resulting in fast, flexible, and accurate focusing.

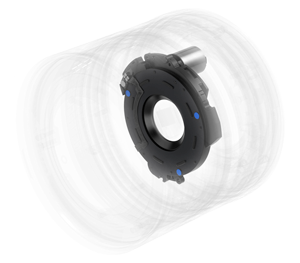

Upgraded Leaf Shutter
SMALLER LEAF SHUTTER, POWERFUL AND PROFESSIONAL ASSISTANCEThe leaf shutter is a powerful component in Hasselblad's medium format system. The XCD 2,5/55V lens is equipped with an upgraded leaf shutter that, while smaller, maintains the same precision performance as its predecessors and is fast and quiet to avoid disturbance when shooting. In addition, this ultra-small shutter captures at up to 1/2000s and delivers flash synchronisation at all speeds.

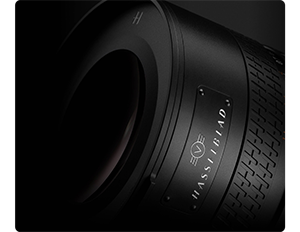

Precision Crafted Metal Design
A FAMILIAR YET NEW INDUSTRIAL AESTHETICXCD 2,5/55V is a precision-crafted metal lens with a focus ring and a newly added control ring.
Both rings are delicately engraved with a Hasselblad "H" logo print. The design is created using a precise 0.3mm drill bit and is a nod to the memorable look of the HC/HCD lenses. Whether paired with X-system or 907X cameras, this new lens is both a homage to the past while standing on its own as a unique, elegant statement.

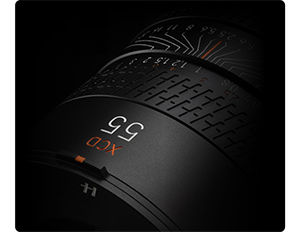

Intuitive Control
CONVENIENT AND INTUITIVE CONTROLThe lens is designed to feel comfortable and intuitive in hand to fully support and not distract from the creative process. The tactile mechanics of the focus and control rings are fine-tuned for a smooth and satisfying experience. A simple push and pull of the focus ring changes from AF to MF mode, where intuitive scale marks keep focus distance and DOF clear at a glance. The control ring can be customised for quick access to preferred functions, making shooting more convenient and efficient.
XCD 2,5/55V Sample Images
X2D 100C + XCD 2,5/55V | 1/350S ISO64 F/9.5
© FLORE BORSI
X2D 100C + XCD 2,5/55V | 1/350S ISO64 F/2.5
© DONALD MICHAEL CHAMBERS
X2D 100C + XCD 2,5/55V | 1/750S ISO64 F/2.5
© DONALD MICHAEL CHAMBERS
X2D 100C + XCD 2,5/55V | 1/480S ISO64 F/2.5
© LINUS ENGLUND
The Tech Spec
| Features | Specification | Focal Length | 55 mm |
|---|---|
| Equivalent Focal Length (24x36) | 43 mm |
| Aperture Range | 2.5 - 32 |
| Angle of View (diag/hor/vert) |
53°/43°/32° |
| Length/Diameter | 72/76 mm |
| Length (from camera lens mount flange) |
67 mm |
| Weight (excl. covers) |
372 g |
| Filter Diameter | 72 mm |
| Minimum Distance Object to Image Plane | 0.45 m |
| Maximum Image Scale | 1:6.4 |
| Corresponding Area of Coverage | 28 x 21 cm |
| Corresponding Exposure Reduction | 0 f-stops |
| Lens Design | 9 elements in 8 groups 3 Aspherical elements |
| Focus Type | Internal Focusing |
| Entrace Pupil Position | 47 mm in front of image plane The entrance pupil position is the correct position of the axis of rotation when making a panorama image by combining individual images of a scene. |
