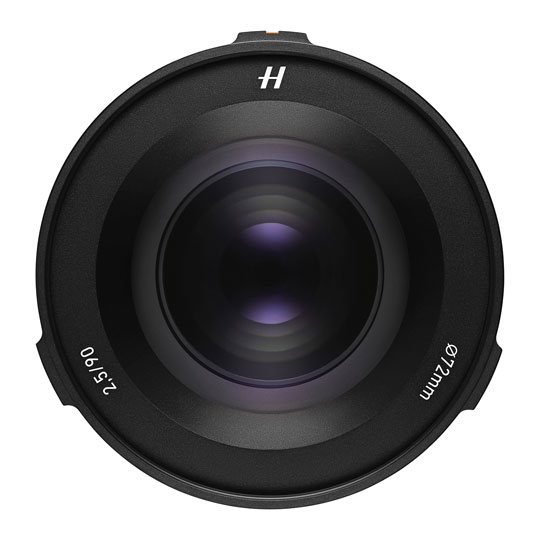

Hasselblad XCD 2.5/90V Lens
Hasselblad 90mm 2.5/90V Lens, XCD Mount, f/2.5, Medium Format, Lens Shutter, 1 Aspherical Element, X System
Email me when the availability or price changes
Hasselblad - 'XCD 2.5/90V Lens'
Inspiration in Every DetailEquivalent to a full-frame 71mm focal length, the XCD 2,5/90V moderate telephoto lens is perfect for close-up portraits or still lifes. Its focal length coupled with a large f/2.5 aperture creates a beautiful soft bokeh effect that highlights the subject. When using the XCD 2,5/90V lens, the narrow aperture and leaf shutter blades can create Hasselblad's hallmark eight-point starburst effect on bright light sources. With its compact optical design, small and lightweight focusing module, and optimised leaf shutter, XCD 2,5/90V weighs only 551g, 11 percent lighter than XCD 3,2/90.
Close-Up Portrait
SOFT BOKEH
FASTEST MEDIUM FORMAT
LEAF SHUTTER
Precision Optics
OUTSTANDING IMAGERYCapturing the most subtle nuances of light and shadow begins with the lens. Only with excellent resolution and colour reproduction can it provide a solid foundation for imaging. A medium format sensor has a large area and a high pixel density, posing stringent requirements for the precision of the lens. Starting with the selection of high-quality glass, Hasselblad engineers carefully grind each lens to perfect its optical quality and meet the resolution requirements of 100 million pixels.
The XCD 2,5/90V lens features nine elements in six groups, including one ED element and one specially made large-diameter aspherical element. With a thoughtfully crafted arrangement, the lens has not only a compact size but is also able to deliver an apochromatic effect for accurate colour correction. Combining XCD 2,5/90V with a Hasselblad mirrorless medium format camera yields stunning results.
New Focusing Module
FAST, LIGHT, ACCURATEThe upgraded focusing module adopts a linear stepping motor and a lighter, smaller focusing lens group. These changes effectively eliminate any backlash from the lens group moving and, coupled with the PDAF technology of the X2D 100C, mean the focusing lens group can quickly reach the focusing position and achieve a precise stop. Resulting in fast, flexible, and accurate focusing.
Upgraded Leaf Shutter
SMALLER LEAF SHUTTER, POWERFUL AND PROFESSIONAL ASSISTANCEThe leaf shutter is a powerful component in Hasselblad's medium format system. The XCD 2,5/90V lens is equipped with an upgraded large aperture leaf shutter that, while smaller, maintains the same precision performance as its predecessors and is fast and quiet to avoid disturbance when shooting. In addition, it captures at up to 1/4000s, the fastest among medium format lenses,1 and delivers flash synchronisation at all speeds.
1. Among interchangeable-lens mirrorless digital cameras with a 55mm-diameter CMOS sensor (according to a Hasselblad market survey on 1 March 2022) .
Precision Crafted Metal Design
A FAMILIAR YET NEW INDUSTRIAL AESTHETICXCD 2,5/90V is a precision-crafted metal lens with a focus ring and a newly added control ring.
Both rings are delicately engraved with a Hasselblad "H" logo print. The design is created using a precise 0.3mm drill bit and is a nod to the memorable look of the HC/HCD lenses. Whether paired with X-system or 907X cameras, this new lens is both a homage to the past while standing on its own as a unique, elegant statement.
Intuitive Control
CONVENIENT AND INTUITIVE CONTROLThe lens is designed to feel comfortable and intuitive in hand to fully support and not distract from the creative process. The tactile mechanics of the focus and control rings are fine-tuned for a smooth and satisfying experience. A simple push and pull of the focus ring changes from AF to MF mode, where intuitive scale marks keep focus distance and DOF clear at a glance. The control ring can be customised for quick access to preferred functions, making shooting more convenient and efficient.
XCD 2,5/90V Sample Images
X2D 100C + XCD 2,5/90V | 1/500S ISO64 F/2.5
© MADS SELVIG
X2D 100C + XCD 2,5/90V | 1/25S ISO64 F/2.5
© LINUS ENGLUND
X2D 100C + XCD 2,5/90V | 64S ISO64 F/11
© HAITONG YU
X2D 100C + XCD 2,5/90V | 1/220S ISO800 F/6.8
© ZIFENG QIU
The Tech Spec
| Features | Specification | Focal Length | 90 mm |
|---|---|
| Equivalent Focal Length (24x36) | 71 mm |
| Aperture Range | 2.5 - 32 |
| Angle of View (diag/hor/vert) |
34°/28°/21° |
| Length/Diameter | 95/75 mm |
| Length (from camera lens mount flange) |
90 mm |
| Weight (excl. covers) |
551 g |
| Filter Diameter | 72 mm |
| Minimum Distance Object to Image Plane | 0.67 m |
| Maximum Image Scale | 1:5.8 |
| Corresponding Area of Coverage | 28 x 19 cm |
| Corresponding Exposure Reduction | 0 f-stops |
| Lens Design | 9 elements in 6 groups 1 Aspherical elements |
| Focus Type | Internal Focusing |
| Entrace Pupil Position | 68 mm in front of image plane The entrance pupil position is the correct position of the axis of rotation when making a panorama image by combining individual images of a scene. |
