Gigabyte Intel Z890 AORUS MASTER PCIe 5.0 ATX Motherboard
Gigabyte Intel Z890 AORUS MASTER PCIe 5.0 ATX Motherboard
Scan code: LN152546 Manufacturer code: Z890 AORUS MASTER
£539.99
Get it Tomorrow, 15 DecIn stock
  • Thumbnail 1 : Gigabyte Intel Z890 AORUS MASTER PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : Gigabyte Intel Z890 AORUS MASTER PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : Gigabyte Intel Z890 AORUS MASTER PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : Gigabyte Intel Z890 AORUS MASTER PCIe 5.0 ATX Motherboard

Gigabyte Intel Z890 AORUS MASTER PCIe 5.0 ATX Motherboard

Gigabyte Z890 AORUS MASTER, Intel Z890, S 1851, DDR5, PCIe 5.0, 5x M.2, 10G LAN, WiFi 7/BT5.4, ATX

Scan code: LN152546 Manufacturer code: Z890 AORUS MASTER
£539.99
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 15 DecIn stock
  • By DPD On 16th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £15.00 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £45.00
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £539.99
    Total inc. interest: £539.99
    Monthly Payment: £22.50
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £539.99
    Total inc. interest: £539.99
    Monthly Payment: £15.00
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £539.99
    Total inc. interest: £539.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £14.35 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Gigabyte Z890 AORUS MASTER Intel LGA 1851 ATX Motherboard

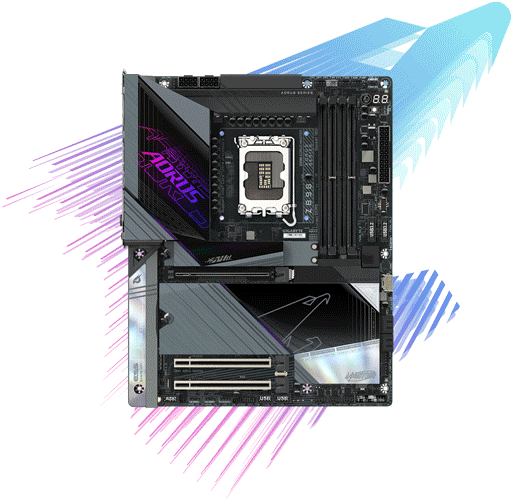

Z890 AORUS MASTER

The Pinnacle of PerformanceThe Gigabyte Z890 AORUS MASTER sits at the pinnacle of Gigabyte's motherboard lineup - engineered to deliver performance that goes above and beyond the competition - with built-in Wi-Fi 7 functionality for super-fast networking, straight out of the box. Powered by Intel's Z890 chipset, it supports Intel Core Ultra Series 2 processors, providing the platform for cutting-edge computing and gaming power. Featuring support for DDR5 overclocking with speeds up to 9500 MT/s, PCIe 5.0 and an advanced VRM design for reliable CPU overclocking; this board is fully featured and ready for anything. Gigabyte’s AORUS AI Snatch allows one-click optimisation of your PC components for even more of a boost to performance. Gigabyte’s Ultra Durable technology showcases their commitment to excellence by ensuring durability and reliability across all components of their motherboards. With a suite of helpful design elements and software enhancements, such as EZ Latch and Smart Fan 6, the AORUS MASTER is a fantastic choice for users seeking a top-of-the-line motherboard that provides performance, connectivity and quality of life features in perfect balance.

LGA 1851Intel Socket

Z890Chipset

Intel Core Ultra Series 2Processors

ATXForm Factor

Fully-Featured Motherboard

AORUS MASTER SPECIFICATIONS AND FEATURES

118+1+2 Twin Digital VRM•110A Smart Power Stage
•8-Layer PCB
•Low-Loss PCB
•2X Copper PCB
•Premium Chokes and Capacitors

2Intel LGA 1851 Socket•Supports Intel Core Ultra
Series 2 Processors

3Ultra Durable Power Connectors•24-pin ATX Power with Solid Pin
•8+8-pin CPU Power with Solid pin

4DDR5 Memory•Overclocking support up to 9500 MT/s
•4 x Dual Channel DIMMs

5PCIe 5.0/4.0 M.2 Slots•2 x Ultra Durable PCIe 5.0 M.2 Slots
•3 x PCIE 4.0 M.2 Slot

6Full-length PCIe Slots•1 x Ultra Durable PCIe 5.0 x16
•1 x Ultra Durable PCIe 4.0 x4
•1 x Ultra Durable PCIe 4.0 x1

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Unleash the Power of AI

AORUS AI Snatch Optimisation

True AI. Infinite PerformancePowered by an AI engine, memory and overall system performance can be boosted with improved multi-tasking and system responsiveness. Users can overclock like an expert in an instant, through a simple interface that brings you smart, safe overclocking that won't put your components at risk. Your PC's AI processing is also accelerated for increased performance with better power efficiency.

A Boost to Your System

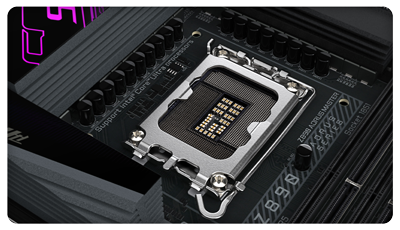

18+1+2 Phases Digital Twin Power VRM Design

Digital Twin VRM DesignThe Z890 MASTER uses a 18+1+2 Digital Twin Power Design which delivers consistent power to maintain system stability when overclocking your CPU. With 110A SPS modules, these fully digital controllers offer precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from Intel Core Ultra processors.

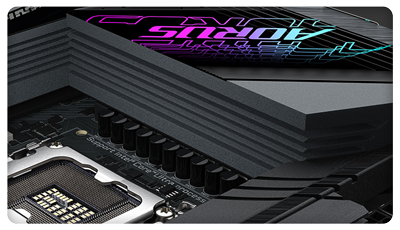

GIGABYTE THERMAL ARMOR COOLING FIN ARRAY

Thermal Armor Fin ArrayGigabyte have designed their VRM cooling solution to provide up to four times more surface area than traditional coolers, with a one-piece moulded heatsink design. Featuring more grooves and fins, it has an increased number of channels for air to flow over the heatsink, drawing heat away from capacitors and chokes. A dedicated heatpipe assists with efficient heat transfer and a 7W/mK themal pad increases thermal conductivity. The AORUS MASTER also features active memory cooling with Gigabyte's DDR Wind Blade fan.

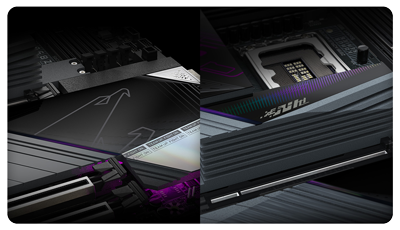

M.2 AND PCIE THERMAL GUARD HEATSINKS

M.2 Thermal GuardsA dedicated heatsink with a small array of fins is provided for the main, PCIe 5.0 M.2 slot, whilst the other M.2 slots are covered by a wider, one-piece heatsink. These help to prevent bottlenecking during intense workloads and large transfers, where your NVMe storage can throttle due to high temperatures from sustained, full-load usage.

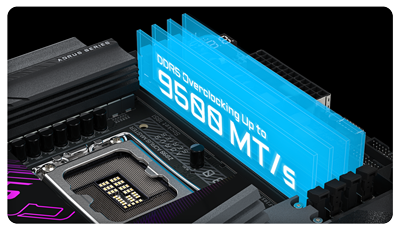

DDR5 OPTIMISATION

The Zenith of MemoryAORUS gaming motherboards can boost DDR5 memory performance up to 9500MT/s, whilst offering top-notch compatibility. Advanced BIOS functionality provides optimisation with Intel XMP, custom SPD profiles and other management features, making it easier to get the most out of your memory. AORUS motherboards bring unmatched hardware excellence using shielded, daisy-chain memory routing in an eight-layer PCB made with server-grade materials.

All-Round Connectivity

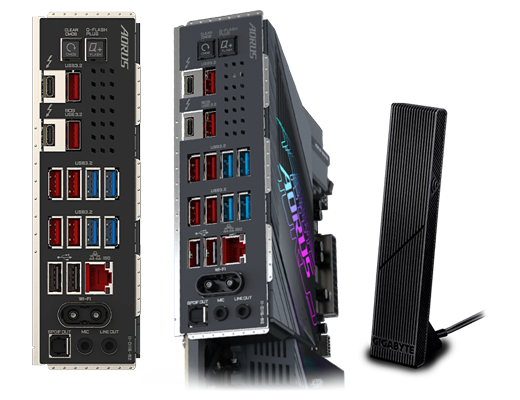

AORUS MASTER CONNECTIVITY AND NETWORKING OPTIONS

Experience ultimate connectivity with the AORUS MASTER and the included Directional Ultra-high Gain Antenna. Designed to provide unparalleled versatility and future-proofing for both gaming and professional setups, this motherboard has it all - from next-generation networking and wireless solutions, to rapid storage and ultra-fast data output options.

Extensive USB ConnectionsThe Z890 AORUS MASTER offers a versatile range of USB connections, including two USB4 Type-C back panel ports with DisplayPort and fast-charging support, with a huge mix of 3.2 Gen2 Type-A ports and 3.2 Gen1 ports and headers that each facilitate fast transfers between drives, as well as connecting gaming accessories and office peripherals. Eight USB 2.0 ports ensure compatibility with older hardware and low-power gadgets.

10 GbE LANThe 10G LAN port provides up to 10 Gigabit Ethernet, opening the door to a whole new world of ultra-fast, lag-free gaming. This port is for gamers seeking the ultimate online gaming experience, who need the very best network support backed by premium components.

Wi-Fi 7The AORUS MASTER offers faster speeds, lower latency, and improved efficiency over Wi-Fi 6 with its built-in networking. It supports Multi-Link Operation (MLO) and 4K-QAM, which combine multiple frequency bands into a single connection, and pack more data into each transmission. When combined, these features reduce congestion and boost bandwidth, for smoother gaming, faster downloads, and more stable streaming, all whilst maintaining strong connection in dense, crowded environments.

Take Control of your Motherboard

GIGABYTE BIOS & Control CENTERGood software goes hand in hand with perfect hardware. The Z890 AORUS MASTER has several useful and intuitive functions to help users to control every feature of the motherboard.

GIGABYTE BIOS USER INTERFACE

Friendly User InterfaceGigabyte's EASY MODE shows important hardware information all on one page.

FavoritesAdd regularly used features into the favorite menu for quick access.

Quick Access FunctionShows nine key options from Advanced Mode whilst using Easy Mode, enabling swift adjustments without extensive navigation.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

AIO Fan ControlEnable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

app

Control CENTERGIGABYTE Control Centre (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential functions.

Illuminate your PC with RGB Fusion

RGB FUSION 2.0

RGB FUSIONWith more customisation than ever before, RGB Fusion allows you to adapt interior lighting to match the theme of your PC. With full RGB support and a redesigned application, you can have complete control over the overall look of your PC by controlling each LED surrounding your motherboard.

RGB FUSION SOFTWARE

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.

RGB FUSION 2.0 USER INTERFACE

GIGABYTE RGB Fusion APPDon't just make your PC shine - make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colours and change speeds for different modes on the fly.

Specifications
Core Specifications
Edition Z890 AORUS MASTER
Form Factor ATX
CPU Socket 1851
Chipset Intel Z890
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6400+(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6600+(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7000+(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800(OC)
  • DDR5 - 7800+(OC)
  • DDR5 - 7900(OC)
  • DDR5 - 7950(OC)
  • DDR5 - 8000(OC)
  • DDR5 - 8200(OC)
  • DDR5 - 8266(OC)
  • DDR5 - 8400(OC)
  • DDR5 - 8600(OC)
  • DDR5 - 8800(OC)
  • DDR5 - 9000+(OC)
  • DDR5 - 9200+(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI
  • Thunderbolt 4
  • USB Type-C (VirtualLink)
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 2 x M.2, 22-80/110, PCIe Gen5x4
  • 1 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 4 x Addressable Gen 2 Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Clear CMOS Switch
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2
  • 1 x Noise Detection Header
  • 1 x Power button
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 1 x ReTry jumper
  • 1 x RGB Header
  • 4 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 4 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen2 Type-C Header
  • 1 x Voltage Measurement Points
External Connectivity
Network Interface Type Wired 10G LAN
Network Chip/Modules 1 x 802.11be WiFi 7 + BT5.4

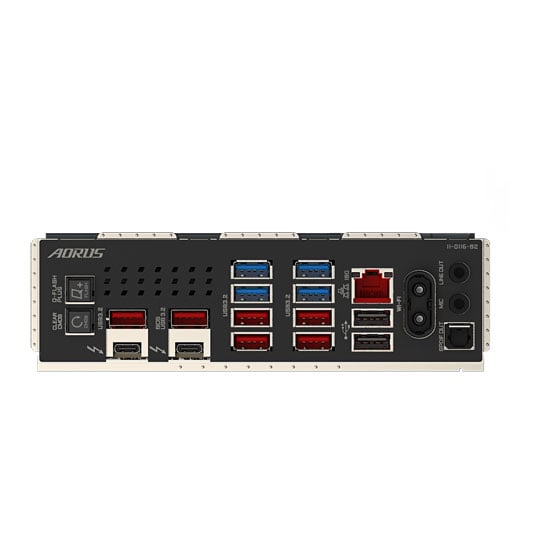

Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 6 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN152546
Model Number Z890 AORUS MASTER
GTIN 4719331864903
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
GIGABYTE
Telephone:
08442449999
Loading Please Wait

Please wait . . .

Buying Guide
Need help choosing the right board? Read our Intel Motherboard Buying Guide
