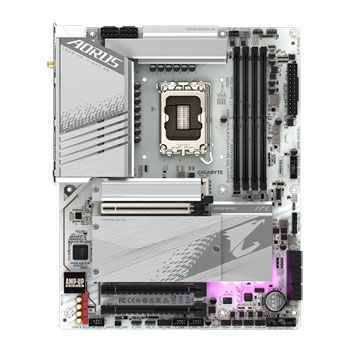

Gigabyte Intel Z790 AORUS ELITE AX ICE PCIe 5.0 ATX Motherboard

Gigabyte Z790 AORUS ELITE AX ICE, Intel Z790, S 1700, DDR5, PCIe 5.0, 4x M.2, 2.5GbE, WiFi 6E/BT5.3, ATX

Thumbnail 1 : Gigabyte Intel Z790 AORUS ELITE AX ICE PCIe 5.0 ATX Motherboard Thumbnail 2 : Gigabyte Intel Z790 AORUS ELITE AX ICE PCIe 5.0 ATX Motherboard Thumbnail 3 : Gigabyte Intel Z790 AORUS ELITE AX ICE PCIe 5.0 ATX Motherboard Thumbnail 4 : Gigabyte Intel Z790 AORUS ELITE AX ICE PCIe 5.0 ATX Motherboard
Scan code: LN141252 Manufacturer code: Z790 AORUS ELITE AX ICE
Order now and receive it by Monday, 24th June
£309.98
Get it Monday, 24 JunIn stock
From £15.14 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £28.09
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £336.99
Monthly Payment: £15.14
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £363.25
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.24 / month (APR 19.9%)
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

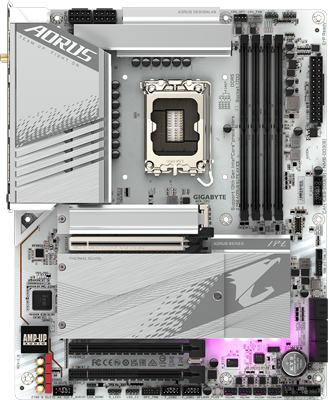

Z790 AORUS ELITE AX ICE Intel 13th Gen ATX Motherboard from Gigabyte

Gigabyte Z790 Motherboard

The Singularity of PowerAORUS Z790 series gaming motherboards fully optimise the performance within the latest Intel® 13th generation processors with Gigabytes most capable digital power design ever. The Aorus Elite AX ICE boasts a powerful, twin 16+1+2 phases digital VRM solution with 70A power stage, which ensures stable and efficient power delivery for overclocking. It also supports dual channel DDR5 memory with XMP 3.0, which enables faster and more reliable performance. The Aorus Elite AX ICE has four PCIe 4.0 x4 M.2 connectors, which provide fast and large storage capacity for games and applications. The motherboard also has an advanced thermal design with fully covered MOSFET heatsinks, a 6mm heatpipe, and a 7.5 W/mK thermal conductivity pad. The motherboard offers fast and reliable network connectivity with 2.5GbE LAN and Wi-Fi 6E 802.11ax. It also boasts multiple display outputs, such as DP and HDMI, and various USB ports, including front USB-C 10Gb/s and rear USB-C 20Gb/s. Push performance to it's limits with Gigabyte Aorus motherboards.

Intel Z790Chipset

LGA 1700CPU Socket

12th & 13th Gen IntelCompatible CPU

ATXForm Factor

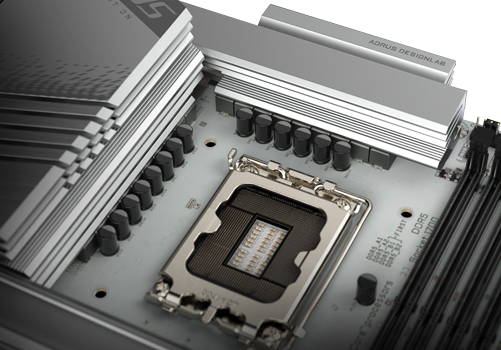

Robust Power Delivery

Power in NumbersAll AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

Robust Power Solution

16 VCORE PhasesTo unleash full potential of multi-cores CPU performance

1 VCCGT Phasefor CPU integrated GPU performance

2 VCCAUX Phasesprovide stable power for CPU integrated PCIe & Memory controller

The Future of Memory

Best-in-class Compatibility All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility with DDR5 overclocking available via a mixture of BIOS optimisations and exquisite hardware craftsmanship including XMP boosters. shielded memory routing and low-signal loss PCB.

Best in class DDR5 memory

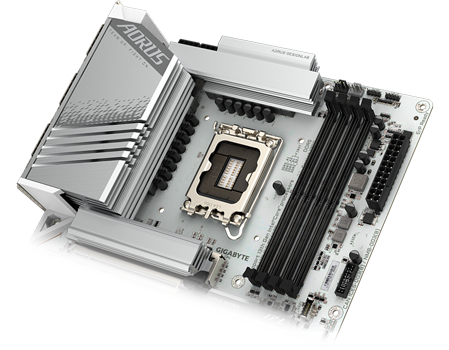

Efficient Thermal Solution

ALL OUT ThermalsEvery AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Impeccable Heatsink Cooling

VRM Advanced Thermal ArmourHigh coverage MOSFETs and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.

4X Larger SurfaceThe surface area has been increased up to 4X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.

One-piece ConstructionThe TRUE single-piece heatsink offers superior cooling performance; compared to competitors' multi-piece designs, thanks to its one-piece construction and larger surface area.

Multi-Cut DesignWith its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.

6mm Heatpipe6mm heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs.

7.5 W/mK Thermal PadOptimise hardware performance with Gigabytes' advanced 7.5 W/mK thermal pad for efficient heat dissipation.

2X Copper EnhancementEnhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

Ultra-Durable Design

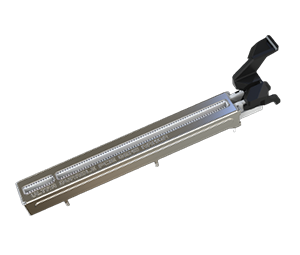

Ultra-Durable PCIe Slot

PCIe UD Slot PG5GIGABYTE widens stainless-steel shielding by 20% to reinforce PCIe slots, addressing Gen 5 SMD technology's lower weight-bearing capacity and supporting heavy-duty graphics cards.

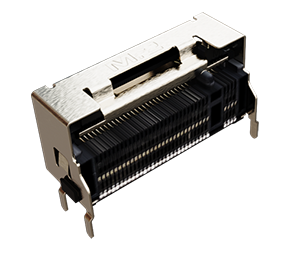

Ultra-Durable M2 Slot

M.2 UD Slot PG4The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximises signal integrity.

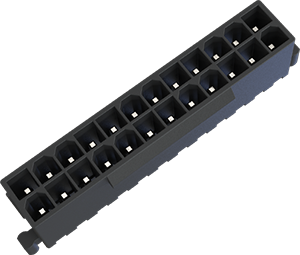

Ultra-Durable Power connector

UD Power ConnectorThe unique design provides better conductivity for power and better dissipation for the heat generated from it.

Embrace Impeccable Versatility

Maximum ConnectivityEnable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, latest USB connections and Wi-Fi 6E connectivity.

I/O Ports
Specifications
Core Specifications
Edition AORUS ELITE AX ICE
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 2 x 8-pin PCIe (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS Button
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

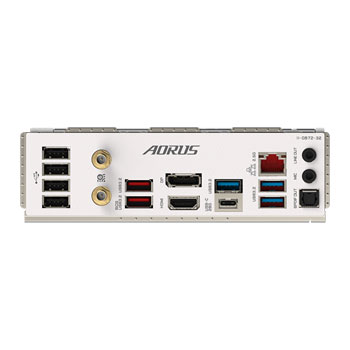

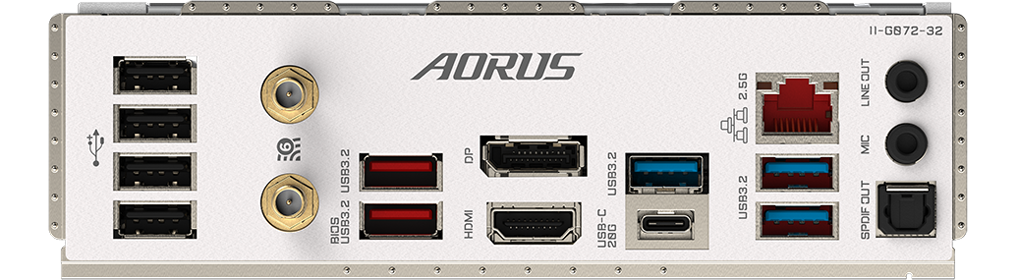

Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI 2.0
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
