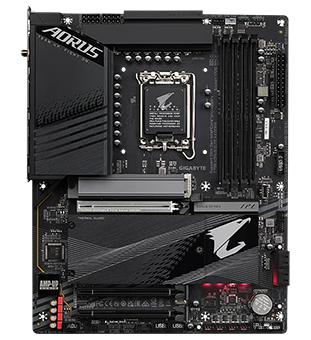

Gigabyte Intel Z790 AORUS ELITE AX DDR4 PCIe 5.0 ATX Motherboard

Gigabyte Z790 AORUS ELITE AX DDR4, Intel Z790, S 1700, DDR4, PCIe 5.0, SATA3, 4x M.2, 2.5GbE,WiFi 6E/BT, USB 3.2 Gen,ATX

Thumbnail 1 : Gigabyte Intel Z790 AORUS ELITE AX DDR4 PCIe 5.0 ATX Motherboard Thumbnail 2 : Gigabyte Intel Z790 AORUS ELITE AX DDR4 PCIe 5.0 ATX Motherboard Thumbnail 3 : Gigabyte Intel Z790 AORUS ELITE AX DDR4 PCIe 5.0 ATX Motherboard Thumbnail 4 : Gigabyte Intel Z790 AORUS ELITE AX DDR4 PCIe 5.0 ATX Motherboard
Scan code: LN130584 Manufacturer code: Z790 AORUS ELITE AX DDR4
Order now and get it tomorrow, Mon 17th Jun
£319.99
Get it Tomorrow, 17 JunIn stock
From £15.63 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £28.99
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £319.99
Total inc. interest: £347.88
Monthly Payment: £15.63
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £319.99
Total inc. interest: £374.97
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.50 / month (APR 19.9%)
Delivery Options
  • By DPD On 17th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

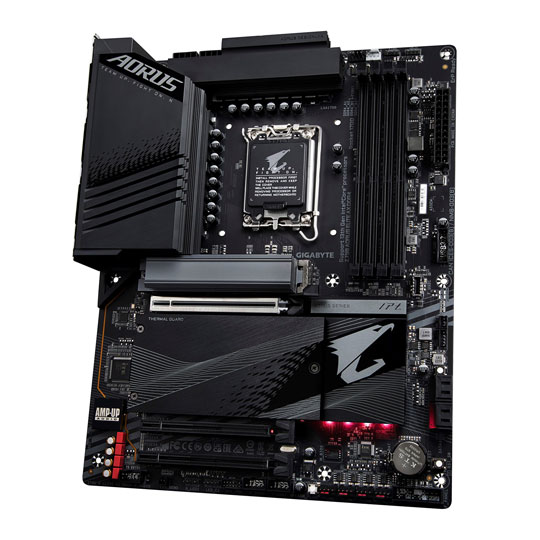

Z790 AORUS ELITE AX DDR4 Intel ATX Motherboard from Gigabyte

AORUS ELITE AX DDR4

UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follow the latest trends to provide customers with advanced features and the latest technologies. The Z790 AORUS ELITE AX DDR4 motherboard is equipped with an upgraded power solution, 1x PCIe 5.0 x16 slot, 4x M.2 slots, DDR4 support and outstanding connectivity to enable optimised performance for gaming.

Intel® Z790 Express Chipset

LGA 1700 Socket

13th and 12th GenerationIntel® Processors

ATXForm Factor

Premium Features

Performance

1Twin 16+1+2 Hybrid
Digital VRM Design

2 Advanced
Thermal Design

3 4*PCIe 4.0 x4
M.2 Connectors

4M.2
EZ-Latch Plus

5Support 13th and 12th Gen
Intel® Core™ Processors

6Solid Pin
Power Connectors

7Dual
Channel DDR4

8Full
PCIe 5.0 Design

9 4*SATA 6Gb/s

10Multi-Key

11Smart Fan 6

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Boost Your System

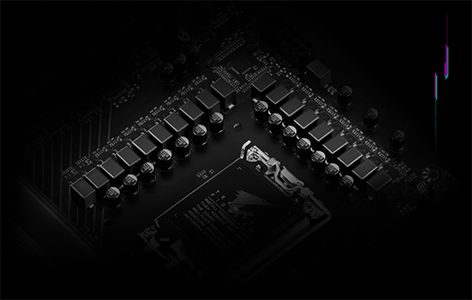

Twin VRM

Twin Digital VRM Design To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.

16* VCORE Twin Phases

1 VCCGT Phase

2 VCCAUX Phase

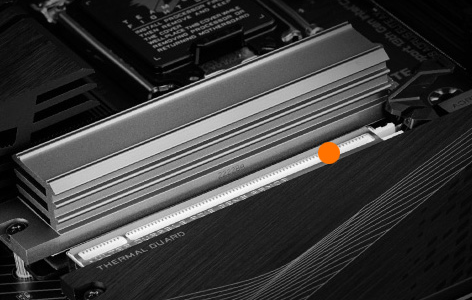

PCIe 5.0

PCIe 5.0 DesignPCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge GPUs released in the next few years to their full capability.

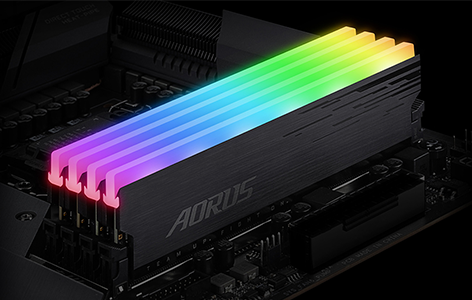

XMP

DDR4 XMPAORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS otherboard.

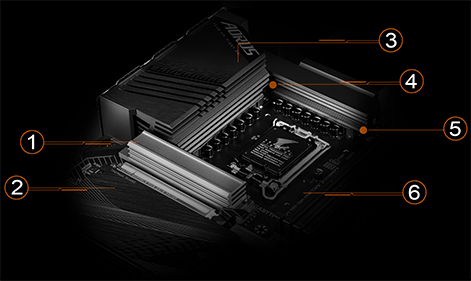

Outstanding Thermal Design

Thermal

1. M.2 Thermal Guard III

2. Enlarged Thermal Guard

3. Fully Covered Thermal Design

4. 6mm Heatpipe

5. 7.5 W/mK Thermal Pad

6. 6-Layer & 2X Copper PCB

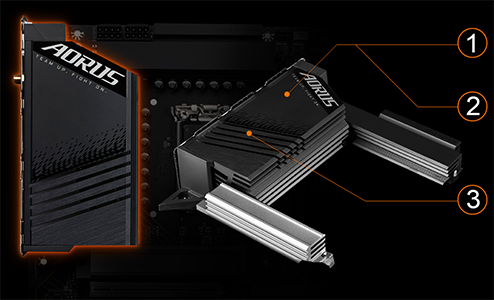

MOSFET

1. 4X Large SurfaceIncreased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

2. Real One-piece BuildTMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

3. Multi-Cut DesignTMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

throttle

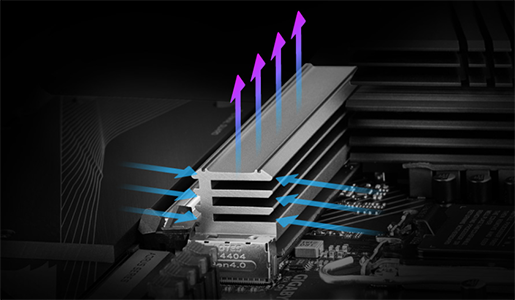

M.2 Thermal Guard IIIM.2 Thermal Guard III constructed with 6X optimised heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under heavy workload.The special design of heatsink grooves in the direction of CPU further enhances the in-chassis air flow and optimises the heat convection efficiency.

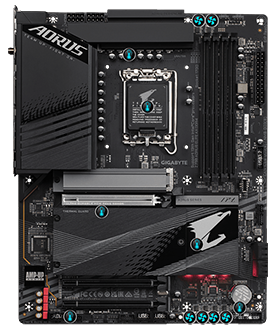

SMART FAN 6

SMART FAN 6Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Future-Proof Connectivity

WiFi6e

802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Durability for Years to Come

pins

Solid Pin Power ConnectorsZ790 AORUS ELITE AX DDR4 motherboards feature an 8+8 Solid Pin CPU Power Connector to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & Control CENTERGood software goes hand in hand with perfect hardware. The Z790 AORUS ELITE AX DDR4 has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

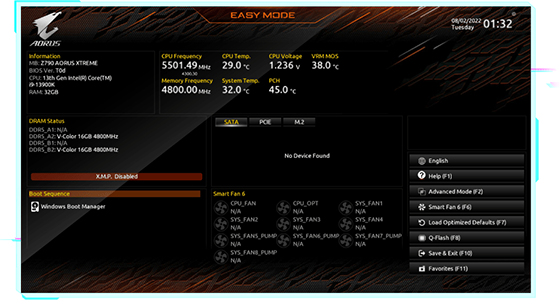

Friendly User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

Control CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential functions.

Specifications
Core Specifications
Edition Z790 AORUS ELITE AX DDR4
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400
  • DDR4 - 4500
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 4933(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS Button
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2 Connector
  • 1 x Noise Detection Header
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.2

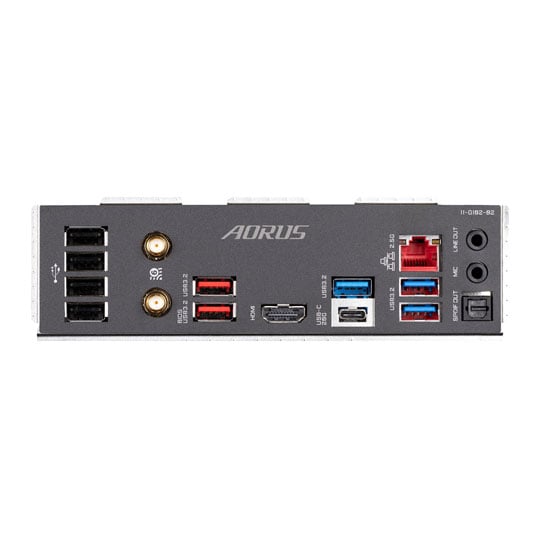

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Clear CMOS Button
  • 1 x HDMI 2.0
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
