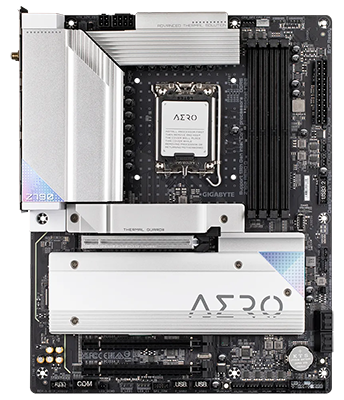

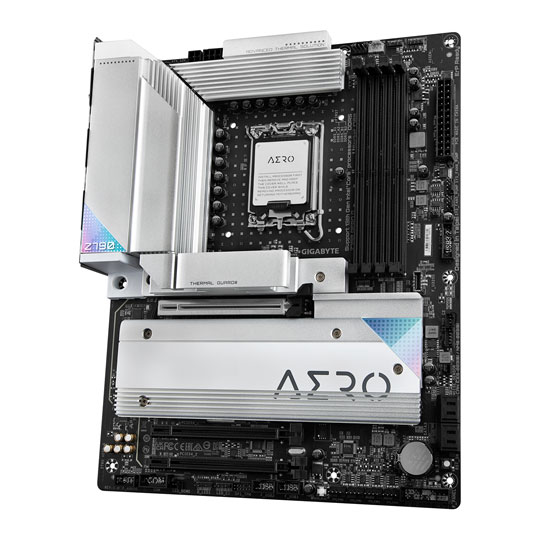

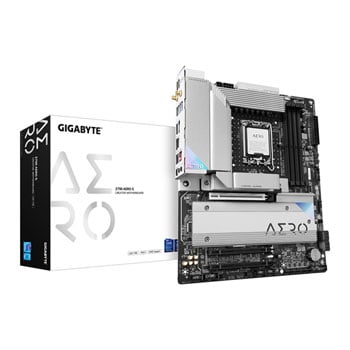

Gigabyte Intel Z790 AERO G DDR5 PCIe 5.0 ATX Motherboard

Gigabyte Z790 AERO G, Intel Z790, S 1700, DDR5, PCIe 5.0, SATA3, 5x M.2, 2.5GbE, WiFi 6E/BT, USB 3.2 Gen 2x2, ATX
MORE INFO
MORE INFO

Scan code: LN129768 Manufacturer code: Z790 AERO G
£359.99
Order now and get it tomorrow, Tue 10th Sep
Add To Basket
Get it Tomorrow, 10 SepIn stock
  • By DPD On 10th Sep Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £17.58 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £32.62
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £359.99
    Total inc. interest: £391.35
    Monthly Payment: £17.58
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £359.99
    Total inc. interest: £421.86
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £9.57 / month (APR 19.9%)
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

Product Overview

Aero Series

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.


Simplify Your Connections

Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C® cable.


DisplayPort™ Alternate Mode with USB Power Delivery

VisionLINK comes with data transfer capabilities, DisplayPort Alternate Mode for video, and 60W of power for device charging.


Bring Graphics Performance to your Pen Display

Through the DisplayPort™ and VisionLINK connections, the performance of the discrete graphics card is delivered to the pen display.


Wait No More

Intel® 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing and fast data transfers.


Do More. Stream More. Enjoy More

Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag.


SuperSpeed USB 20Gbps

USB 3.2 Gen 2x2 lets you to enjoy the flexibility of connectivity, fast access and large data transfers.


DDR5

Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed.

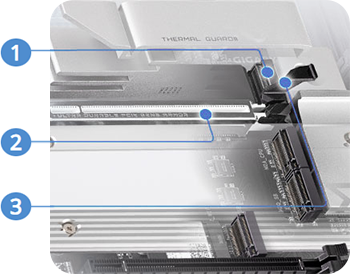

PCIe 5.0 Design

Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.

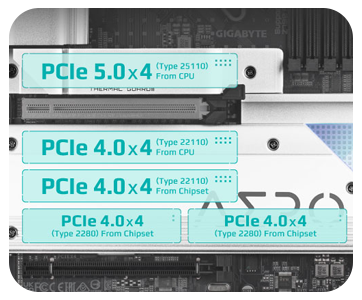

PCIe 5.0 M.2 Storage

A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.


PCIe x4 M.2

All PCIe x4 M.2 slots provide NVMe® SSD RAID support for optimal enhancement, with one PCIe 5.0 M.2 slot offering up to Type 25110 support.

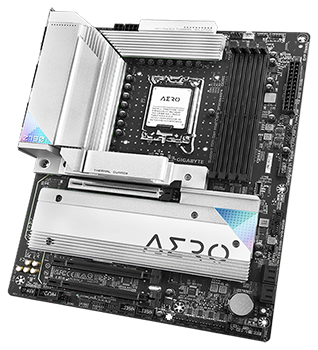

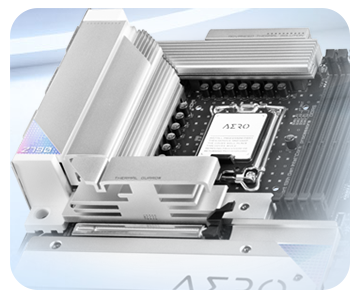

Aesthetic Cooling Design

GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.

Features


Intel® Socket LGA 1700: Supports 13th and 12th Gen Intel® Core™ Series Processors.
VisionLINK: One USB-C® Port for Video, Data Transfer and Charging.
Dual Channel DDR5 : 4x SMD DIMMs with XMP Memory Module Support.
Next Generation Storage: 1x PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance.
EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design.
Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: DP IN, HDMI, Front USB-C® 20Gb/s Support.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Specifications
Core Specifications
Edition Z790 AERO G
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4400(OC)
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5600(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 2 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 5 x M.2
  • 1 x Noise Detection Header
  • 1 x Q-Flash Plus Button
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Intel® I225V (2.5GbE LAN)

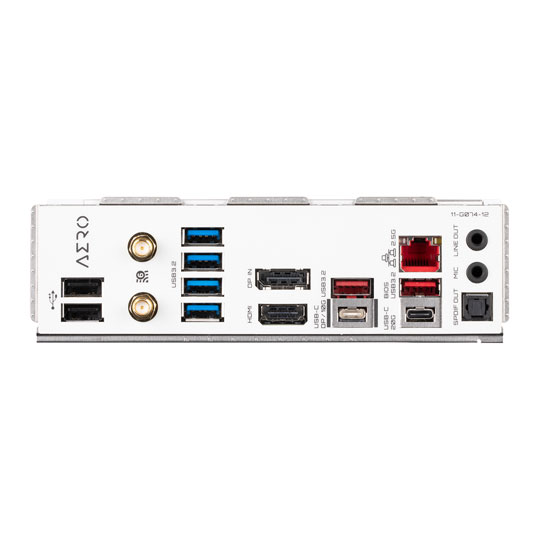

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 1 x Clear CMOS Button
  • 1 x DisplayPort In
  • 1 x HDMI 2.0
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN129768
Model Number Z790 AERO G
GTIN 4719331849610
