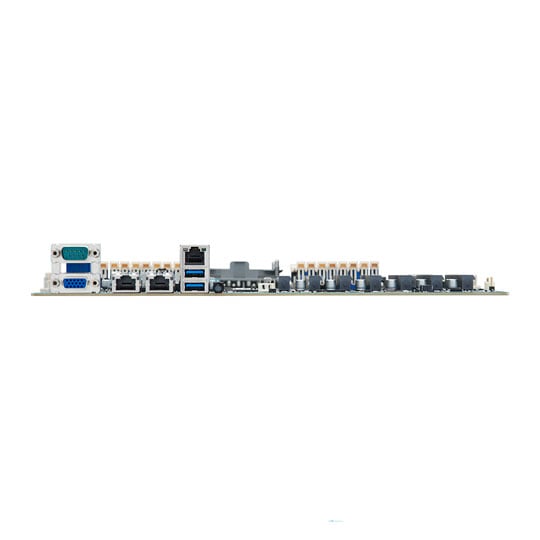

Gigabyte MU92-TU1 Intel Xeon W-3300 Server/Workstation Motherboard

3rd Gen Intel® Xeon® Scalable Processors – “Ice Lake”

GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

Enhanced I/0

Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.

CPU Performance Boost

Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.

Next Gen Memory

Support for DDR4-3200MHz (1DPC or 2DPC) DIMM. 8 channel memory has been added with up to 16 DIMMs per socket delivering up to 4TB of system memory via usage of 256GB DDR4 DIMM. Additionally, 2/4/6/8-way interleaves for optimal configuration.

Arrival of Intel Optane PMem 200 Series

Optimized for improvements in latency while increasing system memory up to 6TB per socket as a mix of PMem and DDR. The 200 Series also has support for memory mode to expand capacity and app direct mode to act as fast flash storage.

Next Level Security

New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.

AI Acceleration

AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.

Intel® Xeon® W-3300 Processors

The Intel® Xeon® W-3300 processors are optimized for advanced workstation professionals in a single socket solution. These processors are designed for heavily threaded, I/O intensive workloads across Architecture, Engineering, and Construction (AEC), Media and Entertainment (M&E), and Artificial Intelligence/ Machine Learning (AI & ML).

Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization. GIGABYTE servers have a compatibility across various ecosystems.

• 3rd Gen. Intel® Xeon® Scalable Processors.
• Intel® Xeon® W-3300 Processor Family.
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs.
• Supports Intel® Optane™ Persistent Memory 200 series.
• Intel® C621A Express Chipset.
• 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2).
• 1 x Dedicated management port.
• 2 x 7-pin SATA 6Gb/s ports.
• 2 x SlimSAS with 8 x SATA 6Gb/s ports.
• 1 x Ultra-Fast M.2 with PCIe Gen3 x4 interface.
• 7 x PCIe Gen4 x16 expansion slots.
