Gigabyte H810M K Intel Core Ultra Series 2 MicroATX Motherboard

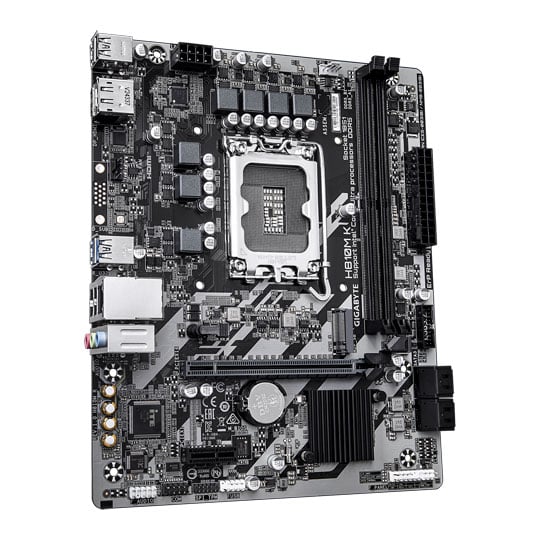

The Gigabyte H810M K is a Micro-ATX motherboard built on the Intel® H810 Express chipset with an LGA1851 socket, supporting Intel® Core™ Ultra Series 2 processors and DDR5 6400/5600 MT/s memory up to 128GB via dual DIMM slots. Featuring PCIe 4.0 x16 for graphics or NVMe, a PCIe 4.0 M.2 slot, four SATA 6Gb/s ports, and Realtek® GbE LAN, it delivers essential next-generation connectivity in a compact format. Integrated DisplayPort 2.1 and HDMI 2.1 outputs enable up to 4K 60Hz display support, while Smart Fan 6, UC BIOS, Q-Flash Auto Scan, and the GIGABYTE Ultra Durable™ design reinforce dependable day-to-day performance.
Ultra Durable Engineering
As part of the GIGABYTE Ultra Durable™ family, the board is constructed with high-quality components throughout. The refined VRM design supports consistent power delivery, system stability, and long-term reliability.
High-Speed DDR5 Capacity
Two DDR5 DIMM sockets support up to 128 GB of system memory, including 64 GB single-DIMM capacity. Support for DDR5 6400/5600 MT/s modules, dual-channel architecture, XMP profiles, and ECC or non-ECC unbuffered DIMMs (operating in non-ECC mode) provides flexibility based on CPU and memory configuration.
PCIe 4.0 Graphics & Expansion
A PCI Express x16 slot runs at PCIe 4.0 x16 from the CPU and supports either a graphics card or NVMe SSD. An additional PCIe 3.0 x1 slot from the chipset expands connectivity for add-in cards, while PCIe EZ-Latch allows quick release of the graphics card.
Fast NVMe & SATA Storage
Storage includes one M.2 Socket 3 connector (M-key, type 2280) supporting PCIe 4.0 x4/x2 SSDs, alongside four SATA 6 Gb/s connectors. This combination supports high-speed NVMe drives and conventional SATA storage within a compact Micro-ATX form factor.
4K Display Connectivity
Integrated Intel® HD Graphics support includes one DisplayPort with up to 3840×2160 at 60 Hz (DisplayPort 2.1) and one HDMI port with up to 4096×2160 at 60 Hz (HDMI 2.1 and HDCP 2.3). Graphics capabilities vary depending on the installed CPU.
Gigabit LAN & HD Audio
Networking is powered by a Realtek® GbE LAN controller supporting 10/100/1000 Mbps, paired with bandwidth management software to help maintain low latency in crowded environments. Audio is delivered through a Realtek® High Definition Audio codec supporting 2/4/5.1/7.1-channel output with configurable audio jacks.
Smart Cooling & BIOS Control
Smart Fan 6 provides enhanced cooling control and quiet operation. UC BIOS introduces a user-focused interface for performance adjustments, while Q-Flash Auto Scan automatically detects BIOS files on a USB flash drive during updates.
Features
• Micro-ATX motherboard based on the Intel® H810 Express chipset with an LGA1851 socket supporting Intel® Core™ Ultra Series 2 processors.
• Supports DDR5 6400/5600 MT/s memory with dual-channel architecture and up to 128GB capacity across two DIMM slots (64GB single-DIMM support).
• Features one PCIe 4.0 x16 slot running at x16 for a graphics card or NVMe SSD, plus one PCIe 3.0 x1 expansion slot.
• Includes one M.2 Socket 3 (M-key, 2280) connector supporting PCIe 4.0 x4/x2 SSDs and four SATA 6Gb/s ports for additional storage.
• Provides integrated graphics output via one DisplayPort (up to 3840x2160@60Hz, DisplayPort 2.1) and one HDMI port (up to 4096x2160@60Hz, HDMI 2.1 with HDCP 2.3), dependent on CPU support.
• Equipped with a Realtek® GbE LAN controller supporting 10/100/1000 Mbps with bandwidth management for improved network responsiveness.
• Delivers 2/4/5.1/7.1-channel High Definition Audio through a Realtek® audio codec with configurable audio jacks.
• Offers rear connectivity including 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, and 3 x audio jacks.
• Supports internal expansion with USB 3.2 Gen 1 and USB 2.0 headers, 4 x SATA connectors, 1 x M.2 slot, CPU and system fan headers, TPM header, serial port header, and Clear CMOS jumper.
• Built under the GIGABYTE Ultra Durable™ design with high-quality components, Smart Fan 6 cooling control, UC BIOS interface, PCIe EZ-Latch, and Q-Flash Auto Scan for simplified BIOS updates.
