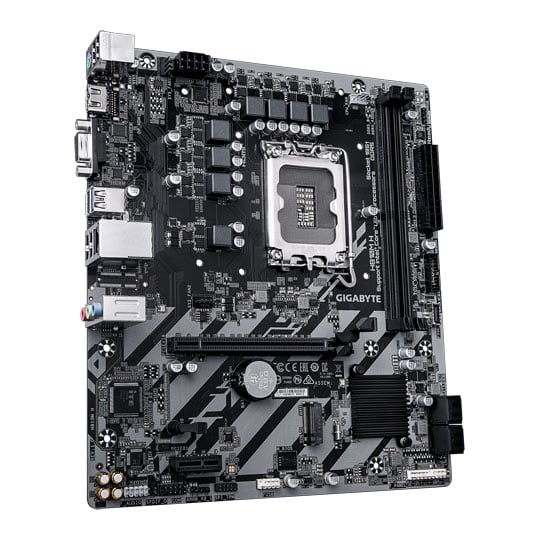

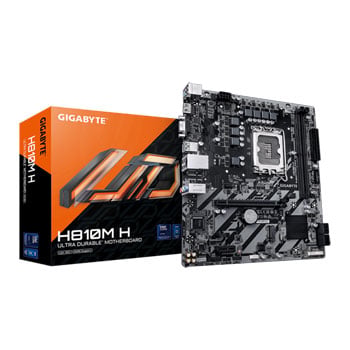

Gigabyte H810M H DDR5 PCIe 4.0 MicroATX Motherboard
Gigabyte H810M H, Intel B860, LGA 1851, DDR5, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen1, PS/2, Intel XMP, mATX
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Gigabyte H810M K, Intel B860, LGA 1851, DDR5, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen1, Intel XMP, mATXGigabyte H810M K DDR5 PCIe 4.0 MicroATX Motherboard
LN168394
No customer review£77.48Pre order
Gigabyte H810M H Intel Core Ultra Series 2 MicroATX Motherboard
The Gigabyte H810M H is a Micro-ATX motherboard built on the Intel® H810 Express chipset with an LGA1851 socket, supporting Intel® Core™ Ultra processors and DDR5 6400/5600 MT/s memory up to 128GB via dual DIMM slots. Featuring PCIe 4.0 x16 for graphics or NVMe, a PCIe 4.0 M.2 slot, four SATA 6Gb/s ports, and Realtek® GbE LAN, it delivers essential next-generation connectivity in a compact format. Integrated HDMI 2.1 and D-Sub outputs enable up to 4K 60Hz digital display support alongside legacy monitor compatibility, while the GIGABYTE Ultra Durable™ design reinforces dependable day-to-day performance.
Ultra Durable Engineering
As part of the GIGABYTE Ultra Durable™ family, the board is constructed with high-quality components throughout. The refined power design supports consistent delivery to Intel® Core™ Ultra processors, ensuring system stability and long-term reliability.
High-Speed DDR5 Capacity
Two DDR5 DIMM sockets support up to 128 GB of system memory, including 64 GB single-DIMM capacity. Support for DDR5 6400/5600 MT/s modules, dual-channel architecture, XMP profiles, and ECC or non-ECC unbuffered DIMMs (operating in non-ECC mode) provides flexibility based on CPU and memory configuration.
PCIe 4.0 Graphics & Expansion
A PCI Express x16 slot runs at PCIe 4.0 x16 from the CPU and supports either a graphics card or an NVMe SSD. An additional PCIe 3.0 x1 slot from the chipset expands connectivity for add-in cards, offering practical expansion for networking, capture, or specialist PCIe devices.
Fast NVMe & SATA Storage
Storage includes one M.2 Socket 3 connector (M-key, type 2280) supporting PCIe 4.0 x4/x2 SSDs, alongside four SATA 6 Gb/s connectors. This combination supports high-speed NVMe drives and conventional SATA storage within a compact Micro-ATX form factor.
4K Display Connectivity
Integrated Intel® HD Graphics support includes one HDMI port with up to 4096×2160 at 60 Hz (HDMI 2.1 and HDCP 2.3) and one D-Sub port with up to 1920×1200 at 60 Hz. Graphics capabilities vary depending on the installed CPU.
Gigabit LAN & HD Audio
Networking is powered by a Realtek® GbE LAN controller supporting 10/100/1000 Mbps. Audio is delivered through a Realtek® High Definition Audio codec supporting 2/4/5.1/7.1-channel output with configurable audio jacks, alongside S/PDIF Out header support for digital audio connectivity.
Smart Cooling & BIOS Control
Comprehensive hardware monitoring includes voltage, temperature, and fan speed detection, plus fan fail warning and fan speed control (fan dependent). The board features a 256 Mbit licensed AMI UEFI BIOS, delivering accessible firmware management and broad system compatibility.
Features
• Micro-ATX motherboard based on the Intel® H810 Express chipset with an LGA1851 socket supporting Intel® Core™ Ultra processors.
• Supports DDR5 6400/5600 MT/s memory with dual-channel architecture and up to 128GB capacity across two DIMM slots, including 64GB single-DIMM support.
• Features one PCIe 4.0 x16 slot running at x16 for a graphics card or NVMe SSD, plus one PCIe 3.0 x1 expansion slot.
• Includes one M.2 Socket 3 (M-key, 2280) connector supporting PCIe 4.0 x4/x2 SSDs and four SATA 6Gb/s ports for additional storage.
• Provides integrated graphics output via one HDMI port supporting up to 4096x2160@60Hz (HDMI 2.1 with HDCP 2.3) and one D-Sub port supporting up to 1920x1200@60Hz, dependent on CPU support.
• Equipped with a Realtek GbE LAN controller supporting 10/100/1000 Mbps wired networking.
• Delivers 2/4/5.1/7.1-channel High Definition Audio through a Realtek audio codec with configurable audio jacks and S/PDIF Out header support.
• Offers rear connectivity including 1 x USB 3.2 Gen 1 port, 5 x USB 2.0/1.1 ports, 1 x RJ-45 LAN port, and 3 x audio jacks.
• Supports internal expansion with USB Type-C® (USB 3.2 Gen 1) header, USB 3.2 Gen 1 and USB 2.0 headers, 4 x SATA connectors, CPU and system fan headers, TPM header, serial port header, and Clear CMOS jumper.
• Built under the GIGABYTE Ultra Durable™ design with high-quality components, Smart Fan 6 cooling control, UC BIOS interface, PCIe EZ-Latch, and Q-Flash Auto Scan for simplified BIOS updates.
