Scan code: LN120696 Manufacturer code: 6NG292Z45MR-00

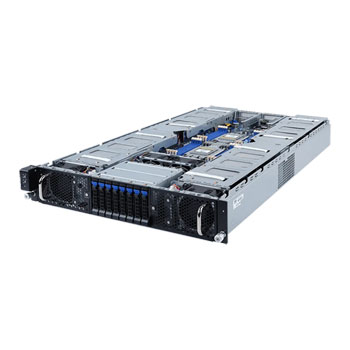

Gigabyte G292-Z45 AMD EPYC 7003 Series 2U 8 PCIe Gen4 Barebone Server w/ Rail Kit

Gigabyte G292-Z45 AMD EPYC 7003 Dual Processor Barebones Server, 2U, 8x PCIe Gen4 x16, 8x 2.5" Hot-Swap Bays, GbE RJ45

Thumbnail 1 : Gigabyte G292-Z45 AMD EPYC 7003 Series 2U 8 PCIe Gen4 Barebone Server w/ Rail Kit Thumbnail 2 : Gigabyte G292-Z45 AMD EPYC 7003 Series 2U 8 PCIe Gen4 Barebone Server w/ Rail Kit Thumbnail 3 : Gigabyte G292-Z45 AMD EPYC 7003 Series 2U 8 PCIe Gen4 Barebone Server w/ Rail Kit Thumbnail 4 : Gigabyte G292-Z45 AMD EPYC 7003 Series 2U 8 PCIe Gen4 Barebone Server w/ Rail Kit
Scan code: LN120696 Manufacturer code: 6NG292Z45MR-00
£3,839.99Item due on 15 December 2021
Due 15th Dec
From £80.00 / month (APR 0%) or 0% for 4 months
Monthly Payment: £320.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,839.99
Total inc. interest: £3,839.99
Monthly Payment: £160.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,839.99
Total inc. interest: £3,839.99
Monthly Payment: £106.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,839.99
Total inc. interest: £3,839.99
Monthly Payment: £80.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,839.99
Total inc. interest: £3,839.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £95.91 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

AMD EPYC™ 7003 Series Processors – “Milan”

GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.


Support Various Computing Accelerators

GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for 3D rendering, deep learning and high-performance computing, which enables content creators, data scientists, researchers, and engineers to tackle challenges that were once impossible.


Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.


Smart Ride Through (SmaRT)

To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.


Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.


Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to together rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization. GIGABYTE servers have a compatibility across various ecosystems.


Tool-Less Drive Bays Design

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.


GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface.
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions.
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.


GIGABYTE Server Management (GSM)

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
• GSM CLI: A command-line interface for monitoring and managing remotely.
• GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
• GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
• GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Features

• Supports up to 8 x double slot GPU cards.
• Dual AMD EPYC™ 7003 series processor family.
• 8-Channel RDIMM/LRDIMM DDR4 per processor, total 16 x DIMMs.
• 2 x 1Gb/s LAN ports (Intel® I350-AM2 controller).
• 1 x Dedicated management port.
• 8 x 2.5" hot-swappable HDD/SSD bays.
• 8 x PCIe Gen4 x16 expansion slots for GPUs.
• 2 x PCIe Gen4 half-length low-profile slots for add-on cards.
• 2+0 2200W (240V) 80 PLUS Platinum power supply.

Specifications
Edition G292-Z45
Form Factor 2U
CPU Included No
CPU Type 2x AMD EPYC™ 7003 Series
CPU Model
Architecture Milan
Manufacturing Process 7 nm
Unlocked CPU No
Core 64 Core
No. of Threads 128
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP 240 W
CPU Socket SP3
Chipset N/A
Motherboard Form Factor
Motherboard Model MZ42-G21
Memory Type DDR4
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Octa (8)
Memory Type (ECC)
Memory Type (R/U) RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip Aspeed AST2500 Integrated
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 4.0 (x16)
Expansion Slots
  • 8 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16, LP, HL
SATA SATA
HDD Storage Included No
HDD Storage Type Storage Drive Not Included - Please Buy Separately
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type Storage Drive Not Included - Please Buy Separately
SSD Storage Capacity
Optical Drive None
Drive Bays 8 x 2.5" SATA/SAS Hot-Swap
Backplane I/O
RAID Support
Internal I/O 1 x TPM Header
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 2 x Intel® I350-AM2 (GbE)
Front Panel
  • 1 x HDD Activity LED
  • 1 x ID button with LED
  • 2 x LAN Activity LEDs
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 1 x System Status LED

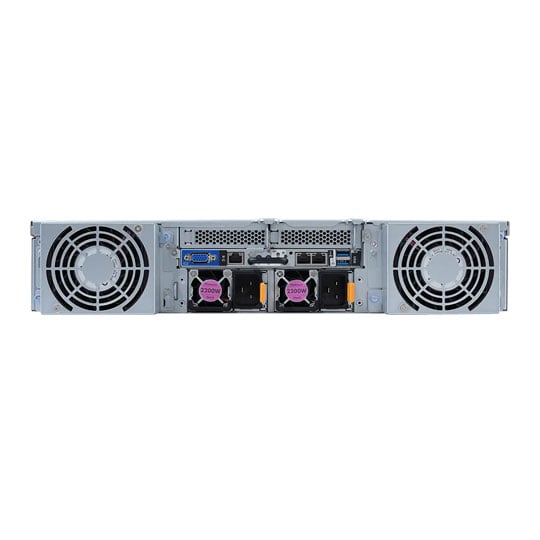

Back Panel
  • 1 x ID Button with LED
  • 1 x Mgmt LAN
  • 1 x NMI button
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 2 x RJ-45
  • 1 x System Status LED
  • 2 x USB 3.0
  • 1 x VGA
Cooling Fans 8 x 80mm
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 2200 W
PSU Efficiency Rating 80 PLUS Platinum
PSU Redundancy 2+0
Operating System Included No
Operating System N/A
Colour Black/ Silver
Dimensions 448 x 87.5 x 800 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN120696
Model Number 6NG292Z45MR-00
GTIN 4719331600822
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
