Asus RS520A-E11-RS24U EPYC 7003 2U PCIe Gen4 Server

Asus RS520A-E11-RS24U AMD EPYC Server, EPYC 7003/2, 2U, 3x PCIe Gen4, 24x U.2/U.3 NVMe Hot-Swap Bays, 2x M.2, 2x GbE
MORE INFO
MORE INFO

Scan code: LN128356 Manufacturer code: 90SF01Q2-M003H0
£2,246.48
Item currently awaiting an ETA
Pre Order
Pre order
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £46.81 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £187.21
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,246.48
    Total inc. interest: £2,246.48
    Monthly Payment: £93.61
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,246.48
    Total inc. interest: £2,246.48
    Monthly Payment: £62.41
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,246.48
    Total inc. interest: £2,246.48
    Monthly Payment: £46.81
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,246.48
    Total inc. interest: £2,246.48
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £59.70 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

AMD EPYC 7003 Series Processors

The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.


PCIe 4.0 Ready

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS520A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.


Two Dual-Slot GPUs Support

ASUS RS520A-E11 servers feature a powerful GPU architecture that supports two dual-slot GPU such as NVIDIA A100 in one 2U system to enable easy scale-up in order to meet the demands of AI and high-performance computing (HPC), and to securely run workloads in virtualized environments.

RS520A-E11 servers also provide optimized acceleration for workloads across cloud, data center and for hybrid cloud environment by being qualified from FPGA Xilinx with support of Alveo accelerator cards.


Scalable Storage Solution

ASUS RS520A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security. Up to 24 all-flash NVMe drives on front panel and flexible storage options for different configurations.


Redundant Fans Support

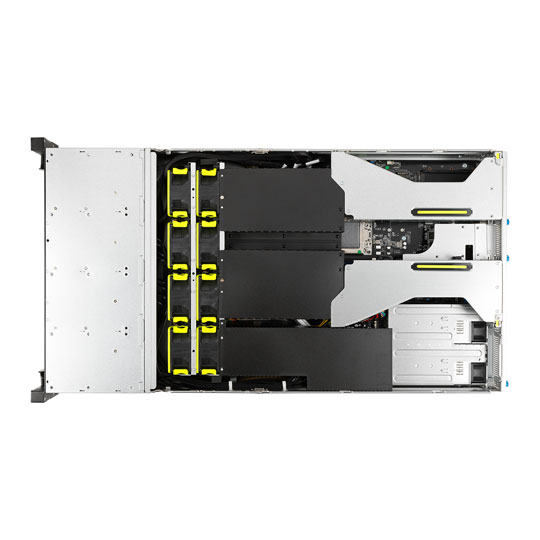

RS520A-E11 servers offer optional hot-swappable, redundant fans and dedicated air tunnels for the CPUs, GPUs and DIMMs for an extra thermal back-up solution. Eight fans for the system — four primary and four back-up fans to ensure nonstop cooling performance for nonstop server operation.


Enhanced Security

In addition, all RS520A-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.


OCP 3.0

ASUS RS520A-E11 servers feature the latest OCP NIC 3.0 mezzanine card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a too-less, hot-swappable design to simplify installation and serviceability.


Server-Management Solution

ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Features GPU-optimized design allows two dual-slot or four single-slot GPUs for AI workloads
Up to 24 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
Up to five PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Air cooling with heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
High power efficiency with redundant 80 Plus Titanium and Platinum power supplies
Specifications
Edition RS520A-E11-RS24U
Form Factor 2U
CPU Included Yes
CPU Type AMD EPYC™ 7003 Series
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
TDP
CPU Socket SP3
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Octa (8)
Memory Type (ECC)
Memory Type (R/U) RDIMM / LRDIMM / LRDIMM 3DS
Memory Speed (Mhz)
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe 4.0 (x16)
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 3 x PCIe 4.0 x16
SATA SATA3 / M.2
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays 24 x 2.5" SATA Hot-Swap
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® i350-AM2 Dual Port (GbE)
  • 1 x Mgmt LAN
Front Panel
  • 1 x HDD Activity LED
  • 1 x LAN Activity LEDs
  • 1 x Location Switch with LED
  • 1 x Message LED
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 2 x USB 3.2 Gen1 Type-A

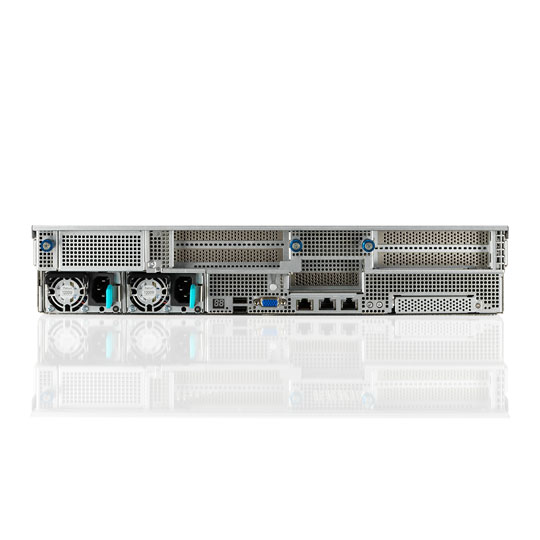

Back Panel
  • 1 x D-Sub (VGA)
  • 1 x HDD Activity LED
  • 1 x LAN Activity LED
  • 1 x Message LED
  • 1 x Power Switch with LED
  • 1 x Reset Button
  • 2 x RJ-45
  • 1 x RJ-45 Mgmt LAN
  • 2 x USB 3.2 Gen1 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 1600 W
PSU Efficiency Rating 80 PLUS Titanium
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 449 x 88.1 x 840 (mm WxHxD)
Weight 18.83 kg
Includes
Notes
Additional Information
Scan Code LN128356
Model Number 90SF01Q2-M003H0
GTIN 4711081684503
