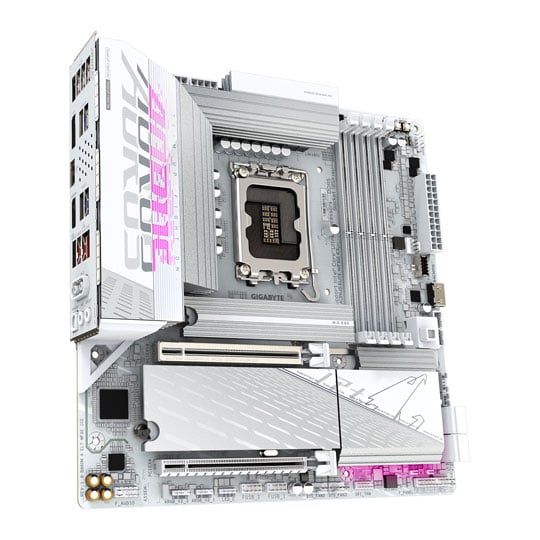

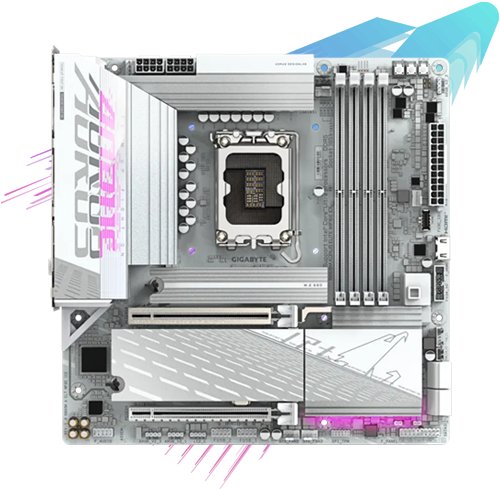

Gigabyte B860M AORUS ELITE WIFI6E ICE DDR5 PCIe 5.0 Micro-ATX Motherboard
Gigabyte B860M AORUS ELITE WIFI6E ICE, Intel B860, LGA1851, DDR5, PCIe 5.0, 3x M.2, 2.5GbE, Wi-Fi 6E, USB 4.0, mATX
Email me when the availability or price changes
Finance this product
- From £16.40 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Gigabyte B860M AORUS ELITE WIFI6E ICE DDR5 PCIe 5.0 Intel MicroATX Motherboard
Ascension Unbound Gliding across its frozen metal heatsinks, the Gigabyte B860M AORUS ELITE Wi-Fi 6E ICE carves through the competition like a chisel through ice, providing crisp cooling and solid structure. Its B860 chipset supports Intel Core Ultra Series 2 Processors - precision-made for unrelenting speed and smooth multitasking. Beneath its glacier-carved thermal armor, cutting-edge connectivity surges through its circuitry, keeping your system primed for everything from marathon gaming to high-stakes projects. Every inch of this motherboard is forged in AORUS excellence, crafted for those who demand a build that runs frosty and looks just as sharp.
B860Intel Chipset
LGA 1851CPU Socket
DDR5 RAMMax. 256GB (Dual Channel)
MicroATXForm Factor

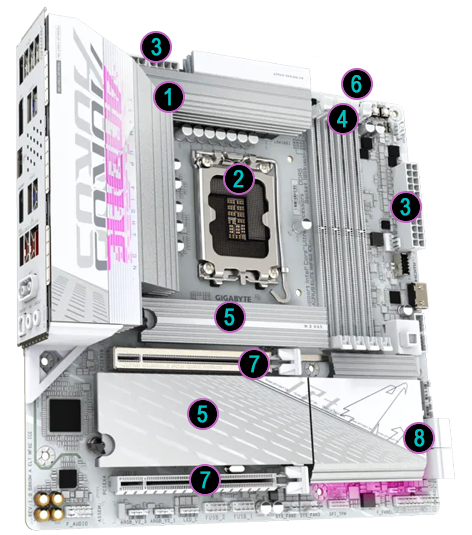

Fully-Featured Motherboard
1
Twin Digital VRM
• Premium Chokes and Capacitors
• 6-Layer 2X Copper PCB
• Mid-Loss PCB
2 Intel LGA 1851 Socket • Supports Intel Core Ultra Series 2 Processors
3
Power Connectors
• 8+8-pin CPU Power with Solid pin
• 24-pin ATX Power Connector
4
DDR5 Memory
• Overclocking support up to 9200 MT/s
• 4 x Dual Channel DIMMs
5
Ultra Durable M.2 Heatsinks
• 1 x PCIe 5.0 M.2 Slots
• 2 x PCIe 4.0 M.2 Slots
6
Fan Headers & Cooling
• 1 x CPU Fan Header
• 1 x CPU Fan/Pump Header
• 3 x System Fan Headers
• 1 x System Fan/Pump Headers
7
Full-length PCIe Slots
• 1 x Ultra Durable PCIe 5.0 x16
• 2 x PCIe 4.0 x1 (Full Length)
8
SATA Support
• 4 x SATA III (6Gb/s)
Snap Into Action with D5 Bionic Corsa

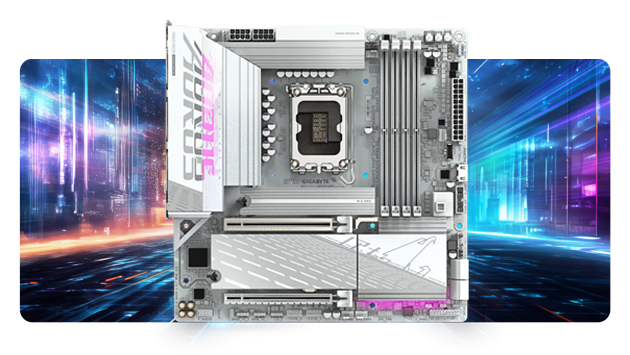

Smart and Safe Overclocking AI SNATCH simplifies overclocking with a user-friendly interface that automatically calibrates performance settings. Built-in safeguards, such as over-temperature and over-current protections, keep your components secure while you gain extra speed. This approach lets you push your system confidently, enjoying enhanced performance without worry.
Enhanced AI Processing – Up to 11% Improvement At the heart of AI SNATCH is improved AI performance, offering up to an 11% increase. This acceleration sharpens decision-making and speeds up data tasks, from language processing to reinforcement learning. The result is a system that responds more quickly and runs smoother throughout your daily computing tasks.
One-Click AccelerationWith a single click, your CPU and DDR5 memory performance can be boosted by up to 7%. The smart interface quickly adjusts key settings, allowing for faster app launches, improved multitasking, and overall snappier performance that enhances both gaming and work experiences.
Up to 5% Better Performance Per WattImproved power management under AI SNATCH leads to up to a 5% boost in CP/Per Watt performance. This refined control reduces energy consumption while maintaining high processing speeds, resulting in a cooler, more sustainable setup. Experience a system that delivers extra performance alongside reduced power usage for round-the-clock reliability.
A Boost to Your System

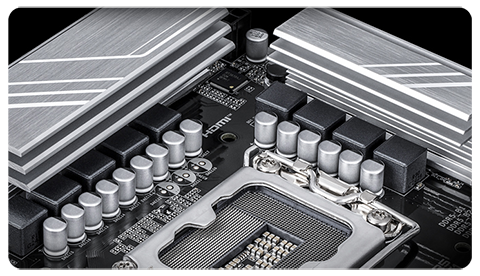

Digital Twin VRM DesignThis board uses a Digital Twin Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With 60A DrMOS modules, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from Intel Core Ultra Series 2 Processors.
14VCORE Phases
1VCCGT Phases
2VCCSA Phases
Quick-Release Click Gigabyte has designed EZ-Latch Plus for the PCIe 5.0 x16 slot, making hardware installation smoother and more convenient. This innovative feature allows you to quickly and easily secure or release your GPU, without needing to shake and struggle with traditional latches.
Note: Image for Reference Only

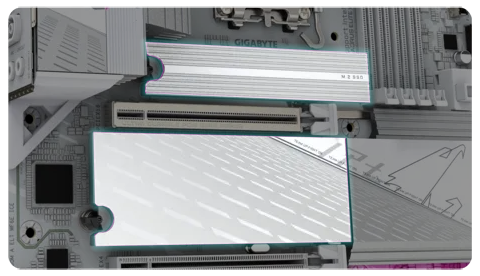

Cool Under FireGigabyte shields M.2 slots with durable, easy-to-remove heatsinks that keep high-speed storage running cool under pressure. Designed to combat the intense heat of rapid data transfers, these thermal guards prevent throttling and maintain peak performance, ensuring your SSDs stay fast and reliable—even when the system is pushing its limits.
x1Gen5 M.2 Slots
x2Gen4 M.2 Slots
Zenith of DDR5Gigabyte B860 boards deliver DDR5 overclocking speeds while offering excellent compatibility. Their advanced BIOS features make memory tuning straightforward. Additionally, shielded daisy-chain memory routing on an intricately layered PCB built with server-grade materials delivers reliable quality.
9,200 MT/sMemory Transfer Rate
Intel XMPOverclocking Support

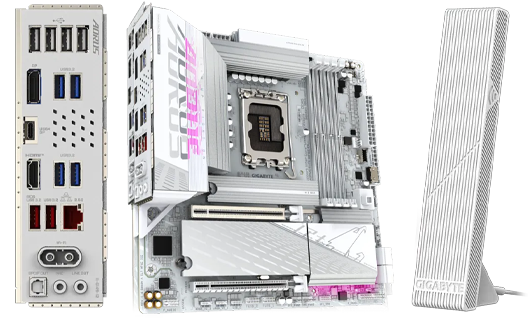

All-Round Connectivity
The B860M AORUS ELITE WIFI 6E has all the connectivity you need. In terms of audio, the board features a S/PDIF-Out (Optical) Port for premium digital audio in addition to Dual Audio Jacks for clear, reliable sound. For visuals, DisplayPort 1.4 is included, ensuring a crisp high-resolution output.

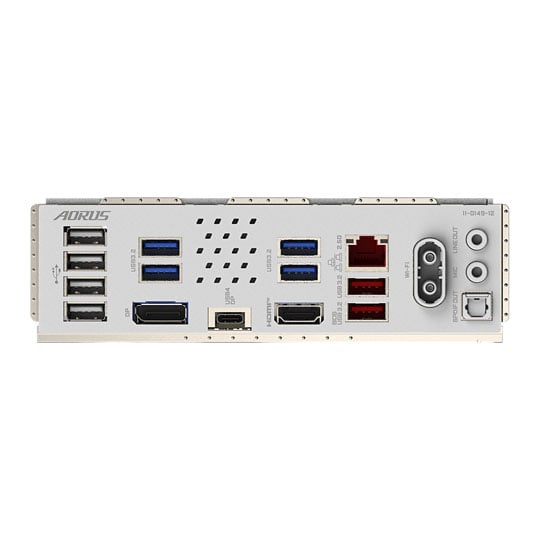

Extensive USB ConnectionsThis board features four legacy USB 2.0 ports for essential peripherals, four USB 3.2 Gen1 Type-A ports for high-speed data transfers, two USB 3.2 Gen2 Type-A ports and a USB4 Type-C with displayport for ultra-fast devices and displays.
2.5 GbE LANSupercharge your gaming with 2.5GbE LAN, achieving lightning-fast speeds, ultra-low latency, and rock-solid performance to enhance your setup and stay ahead. Smooth online gameplay, faster downloads, and uninterrupted streams keep you in control at all times.
Wi-Fi 6E Antenna802.11ax is expanded further with a dedicated 6GHz band, reducing congestion and interference from older devices. This additional spectrum allows for wider channels, lower latency, and more consistent speeds in high-traffic environments.
Comprehensive Cooling
Massive VRM Heatsink ExpansionMore surface area means better heat dissipation, keeping power delivery cool and stable under extreme loads.
5W/mK Thermal Pads for Rapid Heat TransferHigh-performance thermal pads pull heat away from key components, preventing throttling and maintaining efficiency.
I/O Shield Venting for Passive CoolingStrategic cutouts in the rear panel help dissipate heat, reducing overall system temperatures without extra fans.
Onboard Temperature SensorsAccess real-time monitoring of system thermals in the BIOS, with external sensor support for fine-tuned cooling control.
Hypertune BIOS
Simple & Fast SetupEASY MODE delivers a user-friendly interface that presents essential hardware data all on one page. No more digging through menus—just everything you need for fast setup and smooth navigation, right where you want it.
Rapid CustomisationThe Quick Access function puts nine essential settings at your fingertips, including Q-Flash for BIOS updates, SPD Info for memory details, and Favourites for faster adjustments, making navigation faster and more efficient.
AI POWERED PERFORMANCEHyperTune BIOS leverages AI-driven technology to improve system signals, offering a 95%+ boost in efficiency. This next-gen optimisation elevates memory clock speeds and system performance, pushing your rig beyond expectations.
Smart Fan 6Adjust Fan Curves with 7 Control Points, fine-tuning speeds through dual-mode graphs or manual input. Save Presets to BIOS ROM and keep them locked in, even after updates. A refreshingly simple solution for keeping your fans in check.
Illuminate Your PC With ARGB Fusion
RGB FUSION 2.0RGB Fusion 2.0 offers more personalisation options than ever, letting you customise your system’s lighting to match your vibe. With a refreshed app and complete RGB support, you can control every LED, adapting your rig's glow to suit any theme. It covers not just your main board but also works with Gigabyte graphics cards, monitors, keyboards, and cooling systems, allowing you to craft a synchronised light show across your devices. The vibrant hues and varied effects make your setup sparkle and shine, adding a burst of colour and flair to your gaming space.
RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.
Gigabyte RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the Gigabyte RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colors and change speeds for different modes on the fly.
