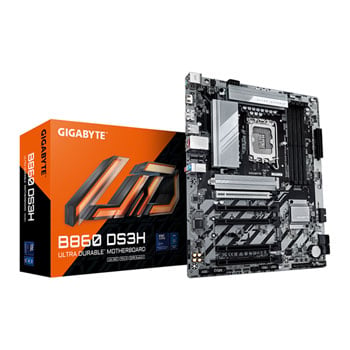

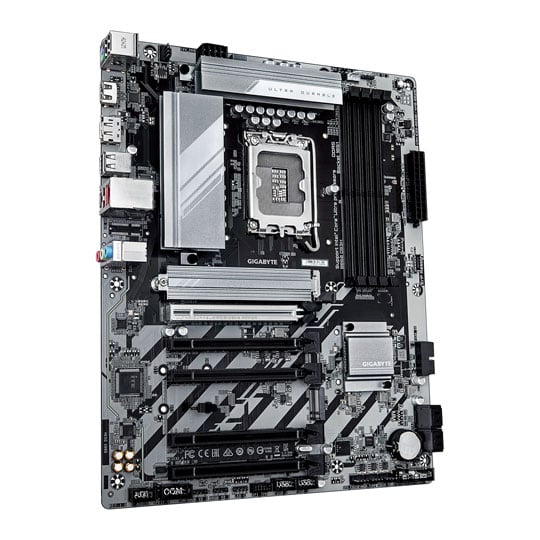

Gigabyte B860 DS3H DDR5 PCIe 5.0 ATX Motherboard
Gigabyte B860 DS3H, Intel B860, LGA1851, DDR5, PCIe 5.0, 2x M.2, 2.5GbE, USB 3.2 Gen 2, ATX
Email me when the availability or price changes
Finance this product
- From £11.78 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Gigabyte B860 DS3H DDR5 PCIe 5.0 Intel ATX Motherboard

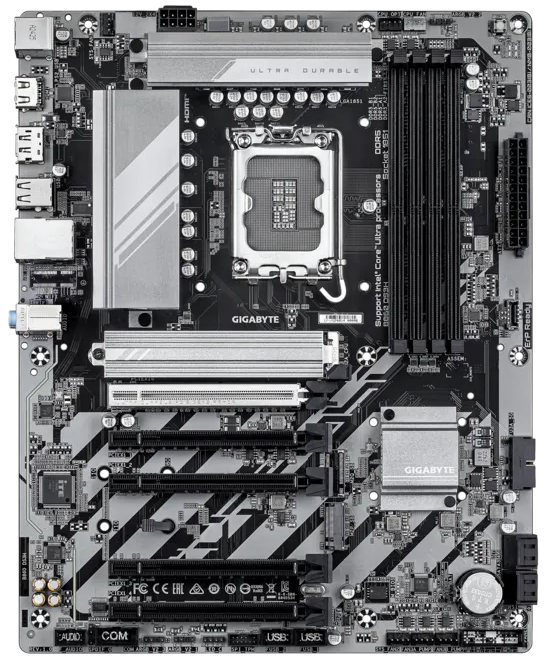

A Bulletproof Foundation The Gigabyte B860 DSH3 is a jam-packed value ATX motherboard, built to harness the power of Intel Core Ultra Series 2 processors. With the Intel B860 chipset at the heart of operations, this versatile ATX motherboard is ideal for budget-conscious builds that require rock-solid performance and wide compatibility with the very best components. This motherboard provides excellent wired connectivity and robust thermal solutions, ensuring this board delivers the flexibility and reliability you need, with no compromises for choosing to build compact.
B860Intel Chipset
LGA 1851CPU Socket
DDR5 RAMMax. 256GB (Dual Channel)
ATXForm Factor

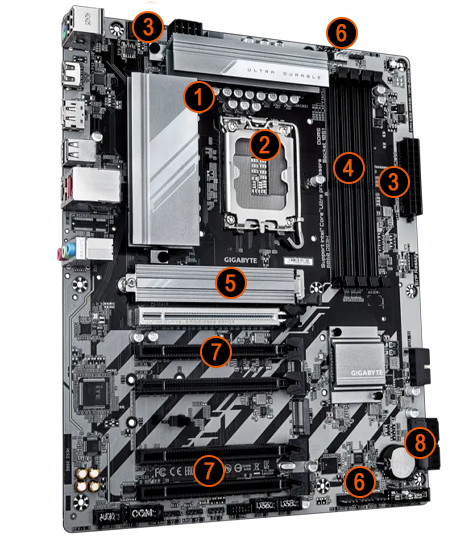

Fully-Featured Motherboard
1
Hybrid VRM
• Premium Chokes and Capacitors
• 6-Layer Copper PCB
• Mid-Loss PCB
2 Intel LGA 1851 Socket • Supports Core Ultra Series 2 Processors
3
Power Connectors
• 8-pin CPU Power with Solid pin
• 24-pin ATX Power Connector
4
DDR5 Memory
• Overclocking support up to 9066 MT/s
• 4 x Dual Channel DIMMs
5
PCIe 5.0/4.0 M.2 Slots
• 1 x Ultra Durable PCIe 5.0 M.2 Slot
• 1 x PCIe 4.0 M.2 Slot
6
Fan Headers & Cooling
• 1 x CPU Fan Header
• 1 x CPU Fan/Pump Header
• 2 x System Fan Headers
• 2 x System Fan/Pump Headers
7
Full-length PCIe Slots
• 1 x Ultra Durable PCIe 5.0 x16
• 4 x Full Length PCIe 4.0 x1
8
SATA Support
• 4 x SATA III (6Gb/s)

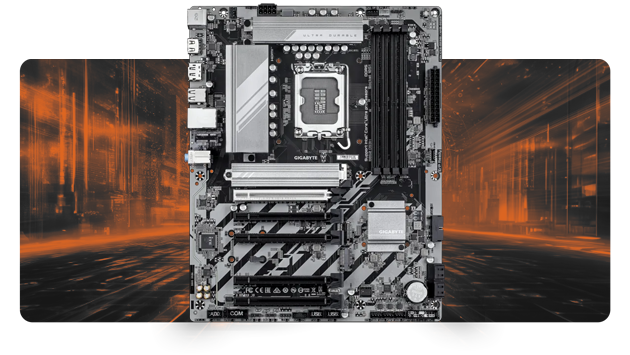

Snap Into Action with D5 Bionic Corsa
Smart and Safe Overclocking AI SNATCH simplifies overclocking with a user-friendly interface that automatically calibrates performance settings. Built-in safeguards, such as over-temperature and over-current protections, keep your components secure while you gain extra speed. This approach lets you push your system confidently, enjoying enhanced performance without worry.
Enhanced AI Processing – Up to 11% Improvement At the heart of AI SNATCH is improved AI performance, offering up to an 8% increase. This acceleration sharpens decision-making and speeds up data tasks, from language processing to reinforcement learning. The result is a system that responds more quickly and runs smoother throughout your daily computing tasks.
One-Click AccelerationWith a single click, your CPU and DDR5 memory performance can be boosted by up to 7%. The smart interface quickly adjusts key settings, allowing for faster app launches, improved multitasking, and overall snappier performance that enhances both gaming and work experiences.
Up to 5% Better Performance Per WattImproved power management under AI SNATCH leads to up to a 5% boost in CP/Per Watt performance. This refined control reduces energy consumption while maintaining high processing speeds, resulting in a cooler, more sustainable setup. Experience a system that delivers extra performance alongside reduced power usage for round-the-clock reliability.
A Boost to Your System

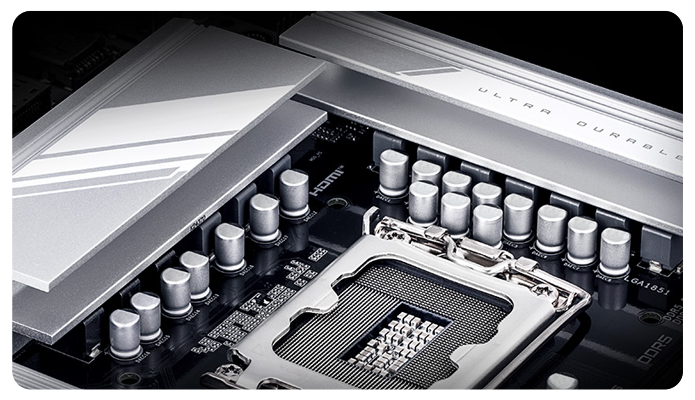

Digital Hybrid VRM DesignThis board uses a Hybrid Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With quality components, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from their processors.
8VCORE Phases
1VCCGT Phases
2VCCSA Phases
Thermal Armor Fin ArrayGigabyte have redesigned their VRM cooling solution, to provide up to four times more surface area than traditional coolers, with a full-metal, one-piece moulded heatsink design. With more grooves and fins, there are an increased number of channels for air to flow over the heatsink and draw heat away from capacitors and chokes. A dedicated heatpipe assists with efficient heat transfer and a 7W/mK themal pad is also included for extra thermal conductivity.

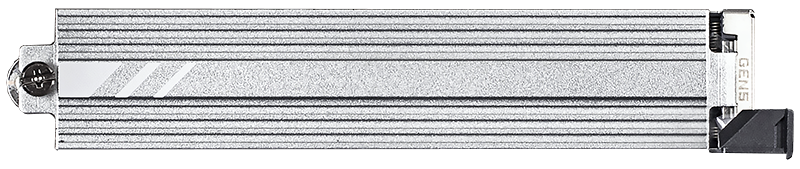

Cool Under FireGigabyte shields M.2 slots with durable, easy-to-remove heatsinks that keep high-speed storage running cool under pressure. Designed to combat the intense heat of rapid data transfers, these thermal guards prevent throttling and maintain peak performance, ensuring your SSDs stay fast and reliable—even when the system is pushing its limits.
x1Gen5 M.2 25110/22110/2580/2280 Slots (Heatsink)
x1Gen4 M.2 25110/22110/2580/2280 Slots (No Heatsink)
Zenith of DDR5Gigabyte B860 boards deliver DDR5 overclocking speeds while offering excellent compatibility. Their advanced BIOS features make memory tuning straightforward. Additionally, shielded daisy-chain memory routing on an intricately layered PCB built with server-grade materials delivers reliable quality.
9,066 MT/sMemory Transfer Rate
Intel XMPOverclocking Support

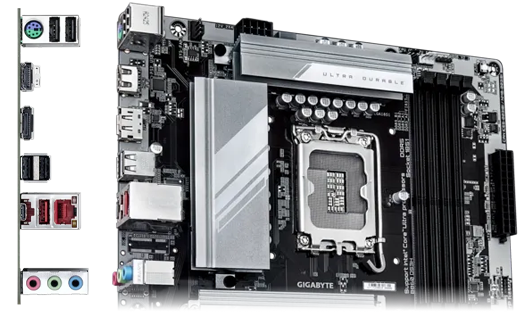

All-Round Connectivity
The Gigabyte B860 DS3H has all the connectivity you need, featuring a PS/2 Combo Port for legacy peripherals, and Triple Audio Jacks for clear, reliable sound. DisplayPort 2.1 and HDMI 2.1 outputs provide smooth, high-resolution visuals for modern multi-display setups.
Extensive USB ConnectionsFeaturing a mix of legacy and high-speed connectivity, this setup includes four USB 2.0 ports for peripherals, a USB 3.2 Gen2 Type-A for better transfers and a USB 3.2 Gen2x2 Type-C port for high-speed devices and modern accessories.
2.5 GbE LANSupercharge your gaming with 2.5GbE LAN, achieving lightning-fast speeds, ultra-low latency, and rock-solid performance to enhance your setup and stay ahead. Smooth online gameplay, faster downloads, and uninterrupted streams keep you in control at all times.
UC BIOS
Refined InterfaceGigabyte’s User-Centred (UC) BIOS keeps things simple with a clear, easy-to-use layout, making setup smooth and adjustments quick. Key settings are right where you need them, so tweaking performance feels effortless.
Quick AccessWith Quick Access, UC BIOS brings nine essential options from Advanced Mode into Easy Mode, cutting down on menu diving. Adjust key settings instantly without losing time, keeping your system running just the way you want it.
SMART FAN 6 PWM/DC FAN CONTROL
7 Adjustable Control Points with dual-mode graph and manual input for exact adjustments.
Quick Setup using 4 temperature and fan speed points alongside automatic fan curve twaks.
Save Personalised Settings to BIOS ROM and keep them intact through BIOS updates.
Illuminate your PC with RGB Fusion
RGB FUSION 2.0RGB Fusion 2.0 offers more personalisation options than ever, letting you customise your system’s lighting to match your vibe. With a refreshed app and complete RGB support, you can control every LED, adapting your rig's glow to suit any theme. It covers not just your main board but also works with Gigabyte graphics cards, monitors, keyboards, and cooling systems, allowing you to craft a synchronised light show across your devices. The vibrant hues and varied effects make your setup sparkle and shine, adding a burst of colour and flair to your gaming space.
RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.
Gigabyte RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the Gigabyte RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colors and change speeds for different modes on the fly.
