Gigabyte AMD B850M D3HP mATX Motherboard

Gigabyte B850 D3HP, AMD B850, S AM5, DDR5, PCIe 5.0, 2 x M.2, 1GbE, USB 10Gbps, AMD EXPO, mATX

Scan code: LN154821 Manufacturer code: B850M D3HP
£134.99
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.25 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £11.25
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £134.99
    Total inc. interest: £134.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Gigabyte B850M D3HP DDR5 PCIe 5.0 AMD Micro-ATX Motherboard

Gigabyte B850M D3HP mATX Motherboard for AMD Ryzen 7000, 8000 & 9000 Series Processors

A Rock-Solid Foundation The Gigabyte B850M D3HP is a small form factor motherboard, built to harness the power of the AMD Ryzen 9000 series processors. With the AMD B850 chipset at the heart of operations, this versatile Micro ATX motherboard is ideal for smaller builds in cases that still require rock-solid performance and wide compatibility with the very best components. This motherboard provides excellent connectivity (without the addition of a built-in Wi-Fi module) and robust thermal solutions, ensuring this board delivers the flexibility and reliability you need, with no compromises for choosing to build compact.

B850AMD Chipset

AM5CPU Socket

DDR5 DIMMMax. 256GB (Dual Channel)

MicroATXForm Factor

Fully-Featured Motherboard

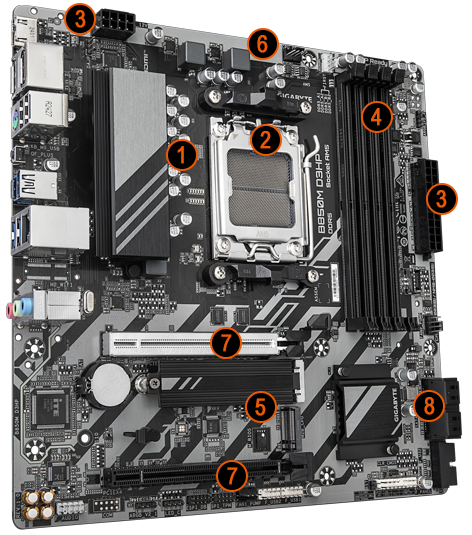

Annotated Diagram of Performance Features for the B850M D3HP

1 Twin Digital VRM • Premium Chokes and Capacitors
• 6-Layer Copper PCB
• Mid-Loss PCB

2 AMD AM5 Socket • Supports 7000 Series Processors
• Supports 8000G Series Processors
• Supports 9000 Series Processors

3 Power Connectors • 8-pin CPU Power with Solid pin
• 24-pin ATX Power Connector

4 DDR5 Memory • Overclocking support up to 8200 MT/s
• 4 x Dual Channel DIMMs

5 PCIe 5.0/4.0 M.2 Slots • 1 x Ultra Durable PCIe 5.0 M.2 Slots
• 1 x PCIe 4.0 M.2 Slot

6 Fan Headers & Cooling • Smart Fan 6 Support
• 4 x PWM/DC Headers

7 Full-length PCIe Slots • 1 x Ultra Durable PCIe 5.0 x16
• 1 x PCIe 3.0 x4 (Full Length)

8 SATA Support • 4 x SATA III (6Gb/s)

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Snap Into Action with AORUS AI SNATCH

AORUS AI Snatch Optimisation

Smart and Safe Overclocking AI SNATCH simplifies overclocking with a user-friendly interface that automatically calibrates performance settings. Built-in safeguards, such as over-temperature and over-current protections, keep your components secure while you gain extra speed. This approach lets you push your system confidently, enjoying enhanced performance without worry.

Enhanced AI Processing – Up to 8% Improvement At the heart of AI SNATCH is improved AI performance, offering up to an 8% increase. This acceleration sharpens decision-making and speeds up data tasks, from language processing to reinforcement learning. The result is a system that responds more quickly and runs smoother throughout your daily computing tasks.

One-Click AccelerationWith a single click, your CPU and DDR5 memory performance can be boosted by up to 9%. The smart interface quickly adjusts key settings, allowing for faster app launches, improved multitasking, and overall snappier performance that enhances both gaming and work experiences.

Up to 9% Better Performance Per WattImproved power management under AI SNATCH leads to up to a 9% boost in CP/Per Watt performance. This refined control reduces energy consumption while maintaining high processing speeds, resulting in a cooler, more sustainable setup. Experience a system that delivers extra performance alongside reduced power usage for round-the-clock reliability.

A Boost to Your System

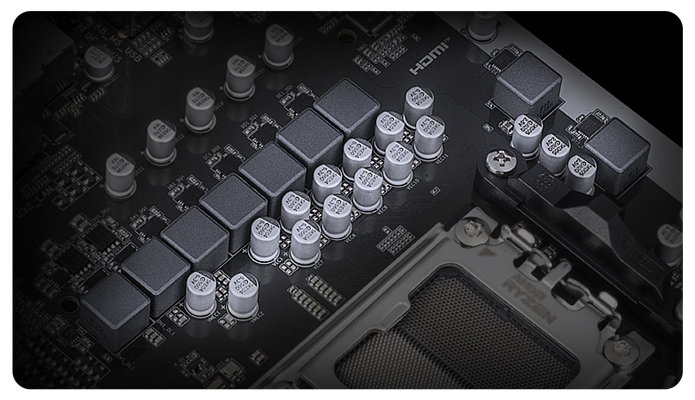

AMD Phases Digital Twin Power VRM Design

Digital Twin VRM DesignThis board uses a Digital Twin Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With 60A DrMOS modules, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from AMD Ryzen™ processors.


5VCORE Phases

2SOC Phases

2VDD_MISC Phases

Gigabyte THERMAL ARMOR COOLING FIN ARRAY

Thermal Armor Fin ArrayGigabyte have redesigned their VRM cooling solution, to provide up to four times more surface area than traditional coolers, with a full-metal, one-piece moulded heatsink design. With more grooves and fins, there are an increased number of channels for air to flow over the heatsink and draw heat away from capacitors and chokes. A dedicated heatpipe assists with efficient heat transfer and a 7W/mK themal pad is also included for extra thermal conductivity.

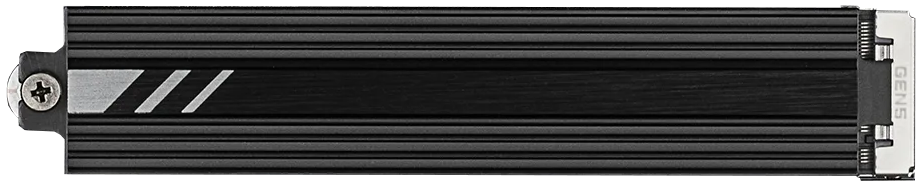

PCIe Gen5 M.2 22-80/110 Slot with Heatsink

Cool Under FireGigabyte shields M.2 slots with durable, easy-to-remove heatsinks that keep high-speed storage running cool under pressure. Designed to combat the intense heat of rapid data transfers, these thermal guards prevent throttling and maintain peak performance, ensuring your SSDs stay fast and reliable—even when the system is pushing its limits.

x1Gen5 M.2 22-80/110 Slots (Heatsink)



x1Gen4 M.2 22-80/110 Slots (No Heatsink)

DDR5 Optimisation

Zenith of DDR5Gigabyte B850 boards deliver DDR5 overclocking speeds while offering excellent compatibility. Their advanced BIOS features AMD EXPO and custom SPD profiles, making memory tuning straightforward. Additionally, shielded daisy-chain memory routing on an intricately layered PCB built with server-grade materials delivers reliable quality.


8,200 MT/sMemory Transfer Rate

AMD EXPOOverclocking Support

All-Round Connectivity

B850M DS3H Connectivity & Networking Options

The Gigabyte B850M DS3H has all the connectivity you need, featuring a Q-Flash Button for effortless BIOS updates, a PS/2 Combo Port for legacy peripherals, and Triple Audio Jacks for clear, reliable sound. Dual DisplayPort 1.4 and HDMI 2.1 outputs provide smooth, high-resolution visuals for modern multi-display setups.

USB Port for Illustration

Extensive USB ConnectionsFeaturing a blend of legacy and high-speed connections, this setup includes two USB 2.0 ports for essential peripherals, three USB 3.2 Gen1 Type-A ports for faster data transfers, and a USB 3.2 Gen1 Type-C port for modern accessories and versatile connectivity.

RJ45 Port for Illustration

1GbE LANSupercharge your gaming with Gigabit LAN, achieving bullet speeds, lowered latency, and excellent performance to enhance your setup and stay ahead. Smooth online gameplay, fast downloads, and uninterrupted streams keep you in control at all times.

UC BIOS

User Centred BIOS

Refined InterfaceGigabyte’s User-Centred (UC) BIOS keeps things simple with a clear, easy-to-use layout, making setup smooth and adjustments quick. Key settings are right where you need them, so tweaking performance feels effortless.

UC BIOS Quick Access

Quick AccessWith Quick Access, UC BIOS brings nine essential options from Advanced Mode into Easy Mode, cutting down on menu diving. Adjust key settings instantly without losing time, keeping your system running just the way you want it.

Smart Fan 6 BIOS Controls

SMART FAN 6 PWM/DC FAN CONTROL

7 Adjustable Control Points with dual-mode graph and manual input for exact adjustments.

Quick Setup using 4 temperature and fan speed points alongside automatic fan curve twaks.

Save Personalised Settings to BIOS ROM and keep them intact through BIOS updates.

Illuminate your PC with RGB Fusion

RGB FUSION 2.0

RGB FUSION 2.0RGB Fusion 2.0 offers more personalisation options than ever, letting you customise your system’s lighting to match your vibe. With a refreshed app and complete RGB support, you can control every LED, adapting your rig's glow to suit any theme. It covers not just your main board but also works with Gigabyte graphics cards, monitors, keyboards, and cooling systems, allowing you to craft a synchronised light show across your devices. The vibrant hues and varied effects make your setup sparkle and shine, adding a burst of colour and flair to your gaming space.

RGB FUSION SOFTWARE

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.

RGB FUSION 2.0 USER INTERFACE

Gigabyte RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the Gigabyte RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colors and change speeds for different modes on the fly.


Specifications
Core Specifications
Edition GIGABYTE B850M D3HP
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz) DDR5 - 8200(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via Yes
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Reset Button
  • 1 x RGB (RGBW) LED Strip Header
  • 1 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 3 x Audio I/O
  • 2 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN154821
Model Number B850M D3HP
GTIN 4719331867058
