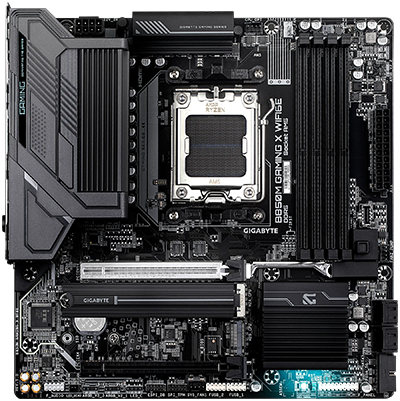

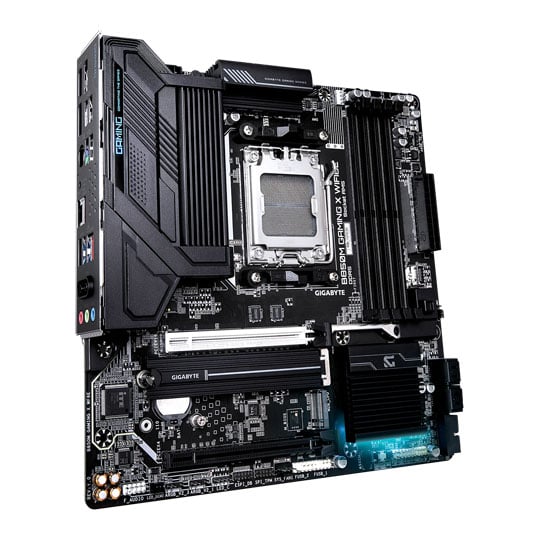

Gigabyte AMD B850M GAMING X Wi-Fi 6E mATX Motherboard
Gigabyte B850 GAMING X Wi-Fi 6E, AMD B850, S AM5, DDR5, PCIe 5.0, 2 x M.2, 2.5GbE, Wi-Fi 6E, USB 10Gbps, AMD EXPO, mATX
Email me when the availability or price changes
Gigabyte B850M GAMING X WIFI DDR5 PCIe 5.0 AMD Micro-ATX Motherboard

Level Up Your Setup The Gigabyte B850M GAMING X Wi-Fi 6E is here to supercharge your gaming rig, packing insane power into a compact Micro ATX design. Assembled on the B850 chipset, this board is ready to take on AMD Ryzen 9000 Series Processors, able to deliver lightning-fast speeds and ultra-smooth multitasking, giving you the edge in every match. With Wi-Fi 6E, say goodbye to lag and hello to epic online play, while cutting-edge thermal tech keeps things ice-cold, even during your most intense gaming sessions. RGB Fusion 2.0 lets you light up your setup in style, while AI-driven performance boosts your system like a cheat code, bringing more power and reliability than ever.
B850AMD Chipset
AM5CPU Socket
DDR5 DIMMMax. 256GB (Dual Channel)
MicroATXForm Factor

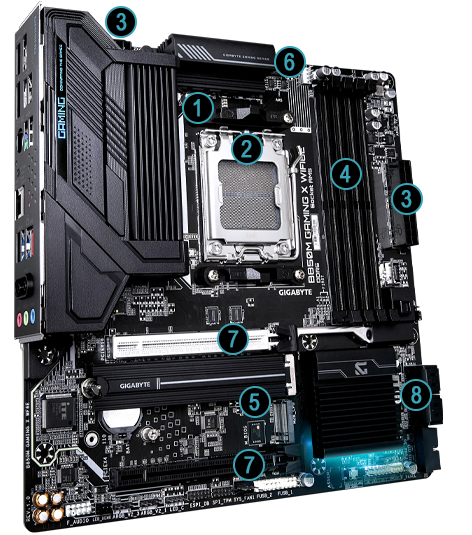

Fully-Featured Motherboard

1
Twin Digital VRM
• Premium Chokes and Capacitors
• 6-Layer Copper PCB
• Mid-Loss PCB
2
AMD AM5 Socket
• Supports 7000 Series Processors
• Supports 8000G Series Processors
• Supports 9000 Series Processors
3
Power Connectors
• 8-pin CPU Power with Solid pin
• 24-pin ATX Power Connector
4
DDR5 Memory
• Overclocking support up to 8200 MT/s
• 4 x Dual Channel DIMMs
5
PCIe 5.0/4.0 M.2 Slots
• 1 x Ultra Durable PCIe 5.0 M.2 Slots
• 1 x PCIe 4.0 M.2 Slot
6
Fan Headers & Cooling
• Smart Fan 6 Support
• 4 x PWM/DC Headers
7
Full-length PCIe Slots
• 1 x Ultra Durable PCIe 5.0 x16
• 1 x PCIe 4.0 x16
8
SATA Support
• 4 x SATA III (6Gb/s)

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

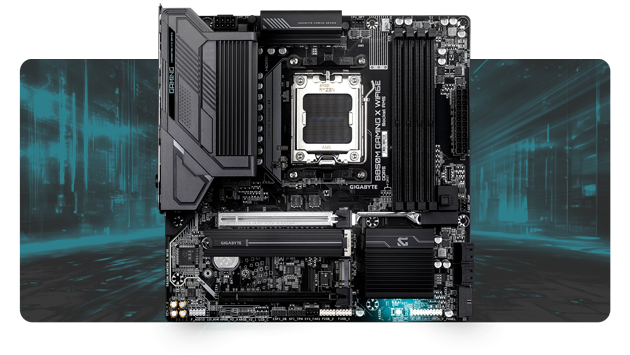

CLICK HERE TO FIND OUT MORE >Snap Into Action with AORUS AI SNATCH

Smart and Safe Overclocking AI SNATCH simplifies overclocking with a user-friendly interface that automatically calibrates performance settings. Built-in safeguards, such as over-temperature and over-current protections, keep your components secure while you gain extra speed. This approach lets you push your system confidently, enjoying enhanced performance without worry.
Enhanced AI Processing – Up to 8% Improvement At the heart of AI SNATCH is improved AI performance, offering up to an 8% increase. This acceleration sharpens decision-making and speeds up data tasks, from language processing to reinforcement learning. The result is a system that responds more quickly and runs smoother throughout your daily computing tasks.
One-Click AccelerationWith a single click, your CPU and DDR5 memory performance can be boosted by up to 9%. The smart interface quickly adjusts key settings, allowing for faster app launches, improved multitasking, and overall snappier performance that enhances both gaming and work experiences.
Up to 9% Better Performance Per WattImproved power management under AI SNATCH leads to up to a 9% boost in CP/Per Watt performance. This refined control reduces energy consumption while maintaining high processing speeds, resulting in a cooler, more sustainable setup. Experience a system that delivers extra performance alongside reduced power usage for round-the-clock reliability.
A Boost to Your System

Digital Twin VRM DesignThis board uses a Digital Twin Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With 60A DrMOS modules, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from AMD Ryzen™ processors.
10VCORE Phases
2SOC Phases
2VDD_MISC Phases

Thermal Armor Fin ArrayGigabyte have redesigned their VRM cooling solution, to provide up to four times more surface area than traditional coolers, with a full-metal, one-piece moulded heatsink design. With more grooves and fins, there are an increased number of channels for air to flow over the heatsink and draw heat away from capacitors and chokes. A dedicated heatpipe assists with efficient heat transfer and a 7W/mK themal pad is also included for extra thermal conductivity.

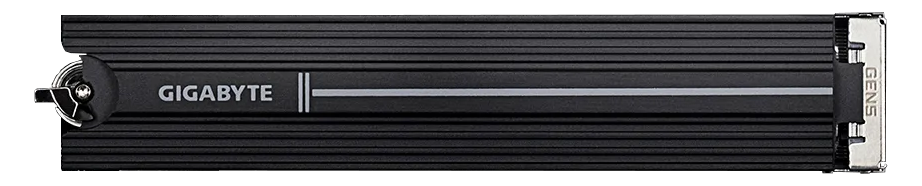

Cool Under FireGigabyte shields M.2 slots with durable, easy-to-remove heatsinks that keep high-speed storage running cool under pressure. Designed to combat the intense heat of rapid data transfers, these thermal guards prevent throttling and maintain peak performance, ensuring your SSDs stay fast and reliable—even when the system is pushing its limits.
x1Gen5 M.2 22-80/110 Slots (Heatsink)
x1Gen4 M.2 22-80/110 Slots (No Heatsink)

Zenith of DDR5Gigabyte B850 boards deliver DDR5 overclocking speeds while offering excellent compatibility. Their advanced BIOS features AMD EXPO and custom SPD profiles, making memory tuning straightforward. Additionally, shielded daisy-chain memory routing on an intricately layered PCB built with server-grade materials delivers reliable quality.
8,200 MT/sMemory Transfer Rate
AMD EXPOOverclocking Support

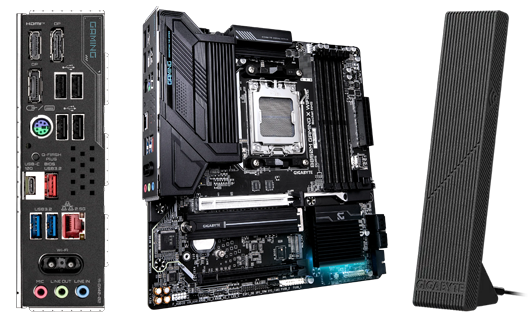

All-Round Connectivity

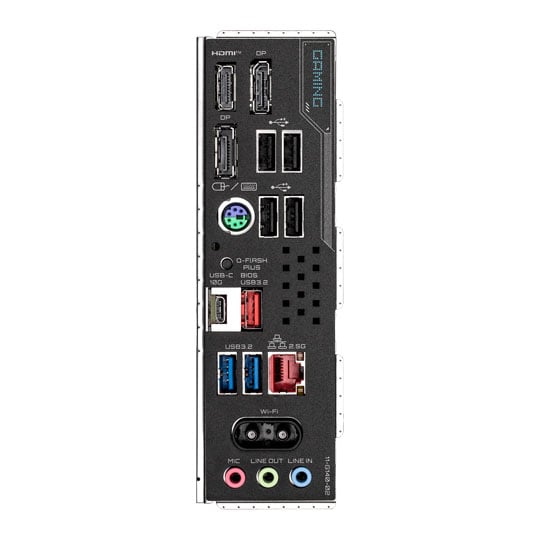

The B850M GAMING X WIFI has all the connectivity you need, featuring a Q-Flash Button for effortless BIOS updates, a PS/2 Combo Port for legacy peripherals, and Triple Audio Jacks for clear, reliable sound. Dual DisplayPort 1.4 and HDMI 2.1 outputs ensure high-resolution visuals for multi-display setups, while Dual Antenna Ports and Bluetooth 5.3 support provide reliable wireless support.

Extensive USB ConnectionsFeaturing a mix of standard and high-speed connections, this setup includes four USB 2.0 ports for basic peripherals, two USB 3.2 Gen1 Type-A ports for quicker transfers, and both a USB 3.2 Gen2 Type-A and Type-C port for modern devices and versatile connectivity.

2.5 GbE LANSupercharge your gaming with 2.5GbE LAN, achieving lightning-fast speeds, ultra-low latency, and rock-solid performance to enhance your setup and stay ahead. Smooth online gameplay, faster downloads, and uninterrupted streams keep you in control at all times.

Wi-Fi 6E Antenna802.11ax is expanded further with a dedicated 6GHz band, reducing congestion and interference from older devices. This additional spectrum allows for wider channels, lower latency, and more consistent speeds in high-traffic environments.
UC BIOS

Refined InterfaceGigabyte’s User-Centred (UC) BIOS keeps things simple with a clear, easy-to-use layout, making setup smooth and adjustments quick. Key settings are right where you need them, so tweaking performance feels effortless.

Quick AccessWith Quick Access, UC BIOS brings nine essential options from Advanced Mode into Easy Mode, cutting down on menu diving. Adjust key settings instantly without losing time, keeping your system running just the way you want it.

SMART FAN 6 PWM/DC FAN CONTROL
7 Adjustable Control Points with dual-mode graph and manual input for exact adjustments.
Quick Setup using 4 temperature and fan speed points alongside automatic fan curve twaks.
Save Personalised Settings to BIOS ROM and keep them intact through BIOS updates.
Illuminate your PC with RGB Fusion

RGB FUSION 2.0RGB Fusion 2.0 offers more personalisation options than ever, letting you customise your system’s lighting to match your vibe. With a refreshed app and complete RGB support, you can control every LED, adapting your rig's glow to suit any theme. It covers not just your main board but also works with Gigabyte graphics cards, monitors, keyboards, and cooling systems, allowing you to craft a synchronised light show across your devices. The vibrant hues and varied effects make your setup sparkle and shine, adding a burst of colour and flair to your gaming space.

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.

Gigabyte RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the Gigabyte RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colors and change speeds for different modes on the fly.
