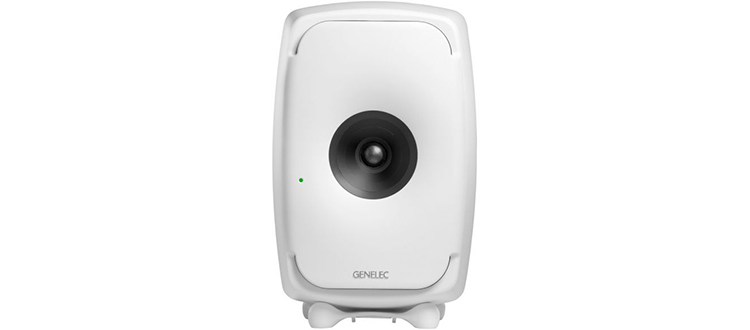

Genelec - 8351B
SAM™ Studio Monitor
(White)
co-axial three-way monitorA revolution in three-way monitor design, the 8351B boasts a unique look, compact size and a performance that has to be heard to be believed.
Uncoloured precisionThe upgraded 8351B now offers increased SPL, additional room compensation EQs, equalised delay and enhanced HF response. Offering the same extraordinary imaging and uncoloured precision of its smaller 8331A and 8341A siblings, the 8351B provides even greater LF extension, while its higher maximum SPL enables longer listening distances.
Work faster, for longerThe 8351B promotes faster and more consistent decision making, but also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And in conjunction with our GLM software, it will adapt to your space and compensate for detrimental room influences. From mono to immersive, you can be confident of producing mixes that will translate beautifully to other rooms and systems.
113 dBMax SPL
32Hz - 43kHz ("-6 dB")Frequency Response
550WTotal Power
at a glance
• Spectacularly flat, broad frequency response: ±1.5dB, 38 Hz to 20 kHz
• Precision imaging, both on and off-axis, both vertically and horizontally
• Acoustically Concealed Woofers (ACW™) enable a three-way design in a highly compact enclosure
• 2 x XLR AES/EBU input / output
• 2 x RJ45 control network
what's included?
• 1 x 8351B monitor
• 1 x RJ45 cable 5 ms
• 1 x operating manual
• 1 x The Ones brochure
Key Technologies
Smart Active Monitor (SAM™) Systems
Minimum Diffraction Coaxial (MDC™)
Acoustically Concealed Woofers (ACW™)
Active
Crossovers
Directivity Control Waveguide
Intelligent Signal Sensing (ISS™) Technology
Iso-Pod™
Stand
Minimum Diffraction Enclosure (MDE™)
'The Ones'
Designing The New Genelec 8361A and 8351B Point Source Monitors
The Tech Spec
| Features | Specification | Powered | Yes |
|---|---|
| Power Configuration | Tri-amped |
| Quantity | Single |
| LF Driver Size | 2 x 8" woofer |
| MF Driver Size | 1 x 5" |
| HF Driver Size | 1" Tweeter |
| LF Driver Power Amp | 250W |
| MF Driver Power Amp | 150W |
| HF Driver Power Amp | 150W |
| Total Power | 550W |
| Frequency Response | 38Hz-20kHz (±1.5dB) |
| Maximum Peak SPL | 113 dB SPL |
| Input Types | 1 x XLR, 1 x XLR (AES/EBU) |
| Output Types | 1 x XLR (AES/EBU) |
| Other I/O | 2 x RJ45 (control network) |
| Features | DIP switches |
| Enclosure Type | Rear Ported |
| Enclosure Material | Die-cast Aluminum |
| Height | 17.75 |
| Width | 11.33" |
| Depth | 11" |
| Weight | 14kg |
