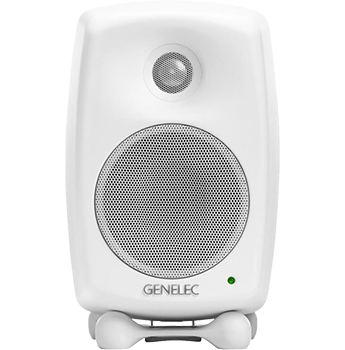

Genelec 8020D White Powered Monitor (Single)
Genelec 8020D Compact 2-way Active Monitor, 56Hz - 25kHz, 4" Woofer, Directivity Control Waveguide - White (Single)
- SCANPROTECT Protect against installation damage for 28 days. More info
2-Way Active Studio Monitor (Single)
Genelec - 8020D (White)
small in dimensions, but big in ambition With Genelec’s renowned accuracy and reliability the 8020D will fit your project and your space, it delivers 4 dB higher SPL and has a lower energy consumption than earlier models of 8020. Designed to suit the broadest possible range of listening environments, 8020D thrives when space is at a premium, and draws on the innovation of the 8000 Series for an unrivalled near-field experience.
3000 HzCrossover
56Hz - 25kHz (-6dB)Frequency Response
50WPower
The 8020D Sets the Benchmark in Nearfield Monitoring
Transparent and truthful Trust in the colour-free, accurate reproduction of the Minimum Diffraction Enclosure (MDE™), while relying on the precise on- and off-axis frequency reproduction of the Directivity Control Waveguide (DCW™). And when you’re finished, Genelec Intelligent Signal Sensing (ISS™) circuitry detects when your system is no longer in use, placing it into an environmentally friendly, power-saving standby mode. From post-production studios to OB vans and DAW-based rooms, the 8020D is your near-field solution of choice.
Key Technologies in the 8020D
Active CrossoverActive crossover operating at low signal levels
Directivity Control Waveguide (DCW™)Directivity Control Waveguide (DCW™) for flat on- and off-axis response
Intelligent Signal Sensing (ISS™)Intelligent Signal Sensing (ISS™) for power consumption reduction in stand-by mode
Iso-Pod™ StandVibration decoupling Iso-Pod™ stand improves sound image definition
Minimum Diffraction Enclosure (MDE™)Minimum Diffraction Enclosure (MDE™) for uncoloured sound reproduction
Optimized AmplifiersEach transducer is driven by its own optimized amplifier
Protection CircuitrySophisticated drive unit protection circuitry for safe operation
Reflex Port DesignAdvanced reflex port design for extended low frequency response
Room Response CompensationPrecise room response compensation for optimizing in-room performance
Versatile MountingsVersatile mounting options for all installation needs
Detailed Information
| Specification | Description |
|---|---|
| Inputs | 1 x XLR Analog Input |
| Frequency Response | 56 Hz - 25 kHz (-6dB) |
| Crossover | 3000 Hz |
| Amplifier Power | 50W |
| LF Driver | 105mm |
| HF Driver | 19mm |
| Peak SPL | 107 dB |
| Width | 148mm |
| Depth | 142mm |
| Height | 230mm |
| Weight | 3.2 kg |
