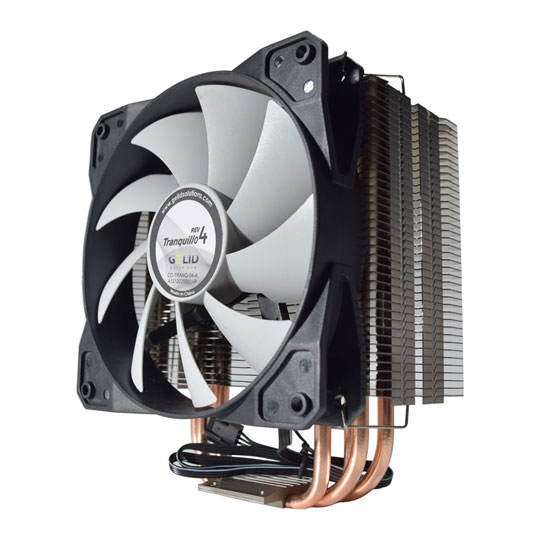

Gelid Solutions Tranquillo 4 CPU Cooler

Gelid Solutions Tranquillo Rev.4 Quiet CPU Cooler, 4 Heatpipes, 120mmPWM Fan Fan, Intel/AMD

Thumbnail 1 : Gelid Solutions Tranquillo 4 CPU Cooler Thumbnail 2 : Gelid Solutions Tranquillo 4 CPU Cooler Thumbnail 3 : Gelid Solutions Tranquillo 4 CPU Cooler Thumbnail 4 : Gelid Solutions Tranquillo 4 CPU Cooler
Scan code: LN83850 Manufacturer code: CC-TranQ-04-A
£32.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The tower CPU Cooler “Rev. 4 Tranquillo” uses 4 power heat pipes and a special heat pipe constellation to achieve best heat transfer from CPU core to the aluminum fins in its class.

Like the original design the Rev. 4 Tranquillo uses 4 power heat pipes and a unique heat pipe constellation but also comes with a number of new technologies implemented to achieve higher cooling performance. The Rev. 4 Tranquillo features the Heatpipe Direct Touch Technology, a direct thermal connection between CPU core and heat pipes. The new heatsink is also improved with the Unique Heatsink Shape Technology, the result of precise software simulations and calculations which makes the air flow resistance of the new heatsink much lower. The Stacked Soldered Heatpipe and Fin Technology provides the best quality of soldered joints between heatpipe to fins and ensures the most efficient heat transfer inside the new heatsink.

An improved 120mm fan with the intelligent GELID PWM (Pulse Width Module) control compliments the heatsink. The new Double Layer Blade technology is applied to distribute air flow efficiently at low speed. The redesigned PWM IC eliminates any clicking noise. The intelligent GELID PWM curve operates the fan in speed range from 750 RPM to 1600 RPM, it constantly keeps the fan silent but accelerates speed whenever additional cooling is needed. With the 2 sets of fan mounts, a second fan can be installed to improve the cooler performance even further.

1. Enhanced Heatpipe Direct Touch
With the Rev.4 Tranquillo, the CPU surface is directly touching the heatpipes, so heat is transferred much more quickly than of a typical heatsink with heatpipes attached to a copper base-plate. The gapless packing of the precisely machined heatpipes also assures the highest possible quality of thermal connection between CPU and heatpipes, no internal resistance between heatpipes and 100% efficiency of heat transfer.

2. Stack Fin Soldering
Unlike the other heatsinks, the Rev.4 Tranquillo features a greatly improved technology, Stack Fin Soldering, which assures the most efficient thermal contact between heatpipes and fins thanks to the special solder joints. The solder joints provide the highest thermal conductivity, so heat is transferred efficiently in those parts of the heatsink too. The solder joints also support a stronger mechanical integrity of the heatsink.

3. Nickel Plating
Poor quality of the fin surface often results in dirty or corroded fins which worsen heat conduction and limit the heatsink thermal performance considerably. The Rev.4 Tranquillo has an improved nickel plating which guaranties ultra-durable quality of the fin surface, and therefore, secures the most efficient heat transfer on the fins.

So, the Rev.4 Tranquillo is optimized all the way in the heat transfer from a CPU core to the heatsink fins, providing improved cooling, lower noise and higher product quality for your desktops.

The multi-award winning high performance GC Pro thermal compound is already included in the package. Mounting clips for multiple AMD™ CPU sockets AM2, AM2+, AM3, AM3+, AM4, FM1, FM2 and for Intel™ CPU LGA 775, 1366, 1155, 1156, 1150, 1151 sockets, as well as back plates for AMD and Intel mainboards are all included too. Features • 4 Power Heatpipes with Direct Touch Technology
• Unique Heatsink Shape Design
• Stacked Soldered Heatpipes & Fins
• PWM IC without Clicking Noise
• Double Layer Fan Blade Design
• 5 Years Warranty

Intel Socket 775, 1150, 1151, 1155, 1156, 1366 & 2011*
CPU: All Pentium D/ Pentium 4/ All Celeron D/ All Pentium Dual-Core/ Extreme/ All Core 2 Extreme/ Core 2 Quad/ Core 2 Duo, Core i5, Core i7

AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+:
CPU: All Athlon 64 X2, Athlon 64, All Athlon 64 FX, Opteron, Sempron, Phenom, Phenom II, Ryzen

*Mounting clip for socket 2011 needs to be purchased separately.
Specifications
Cooler Specifications
Edition Rev.4 Tranquillo
Cooler Form Factor
Heatpipes 4
Cooler Features
  • Aluminium Fins
  • Nickel-Plated Copper Base
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1366
  • 2011
  • 775
  • AM2
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
  • Integ. Intel Core i5-7300U (2 Core, 2.64 - 3.5GHz)
  • Integrated Intel Core i5-3427U (2.8GHz)
  • Integrated Intel Core i5-4250U (1.3GHz)
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 120mm
Fan Edition be quiet! PWM
PWM Fan Yes
Fan Bearing Type Hydro-Dynamic Bearing
Fan Colour
LED Lighting
Fan/Pump Connectors
Max. Fan Speed 1600 rpm
Max. Fan Airflow 65.5 CFM
Max. Air Pressure 2.18 mm H²O
Max. Sound Level 26.7 dBA
Materials
Cooler Materials
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 128 x 154 x 62 mm (WxHxD)
Total Dimensions
Weight 580 g
Additional Information
Scan Code LN83850
Model Number CC-TranQ-04-A
GTIN 4897025781320
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
