Fulltone OCD Ge Germanium Overdrive Pedal
Fulltone - OCD Ge, Germanium Overdrive Pedal, Hard-Clipping MOSFETs, High-Pass/Low-Pass Switch
Email me when the availability or price changes
Finance this product
- From £10.21 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Germanium Overdrive Pedal
Fulltone - OCD Ge
100% Built in the USAThe OCD pedal is the only pedal that uses 2 x Mosfets configured as hard-clipping to 'Voltage reference" instead of the usual way: to ground." The earliest OCDs used 2 x Mosfets plus 1 x Germanium diode, but very quickly these diodes became harder and harder to find, and they became expensive.
Recently I stumbled across a reasonably large stash of the right kind of Germanium diodes so I ponied-up and bought all of them. So I decided to do a run of the ultimate OCD: a Custom Shop offering with a few circuit tweaks using 2 x Mosfets plus 2 x Germanium diodes, and one hell of a beautiful paint job... Metallic Teal with a chrome undercoat! This beauty morphs between blues and greens depending on the light and angle. And what would the ultimate OCD be without a Blue LED? The sound? Great definition, more tube-like feel, a bit wider dynamic range, more sustain, and a more focused single-note tone.
At a glance
• Vintage-style germanium diodes
• Hard-clipping MOSFETs
• Class A–configured JFET input
• Selectable Buffered/True Bypass switching
• High-pass/Low-pass Switch
The Tech Spec
| Features | Specification | Pedal Type | Analogue Overdrive |
|---|---|

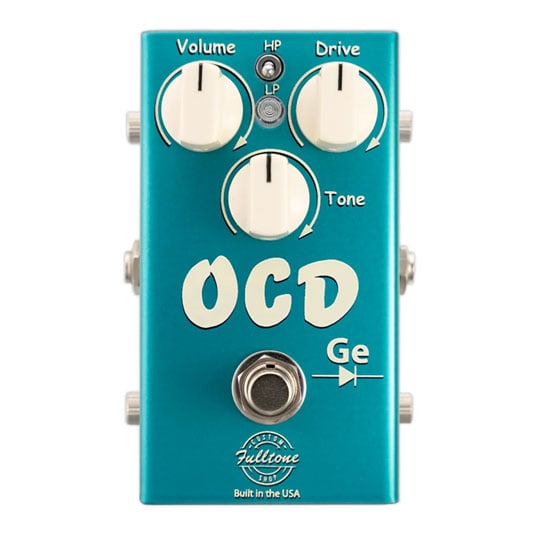

| Controls | Knobs: Volume, Drive, Tone; Switches:HP/LP |
| Number of Footswitch Buttons | 1 |
| EQ | High-pass/Low-pass Switch, Tone Control |

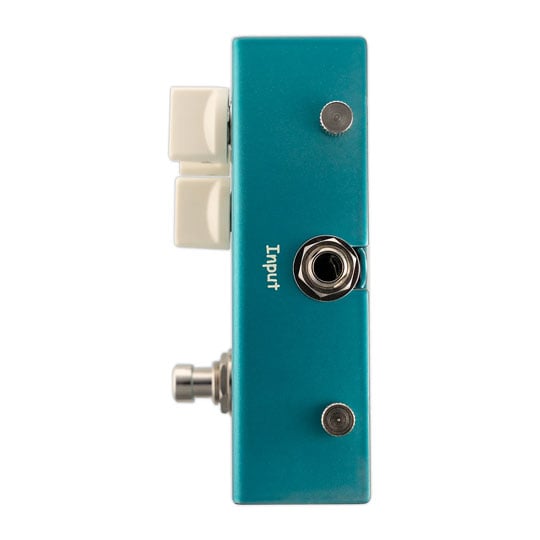

| Inputs | 1 x 1/4" (instrument) |
| Outputs | 1 x 1/4" |
| Bypass Switching | Switchable: Buffered, True Bypass |

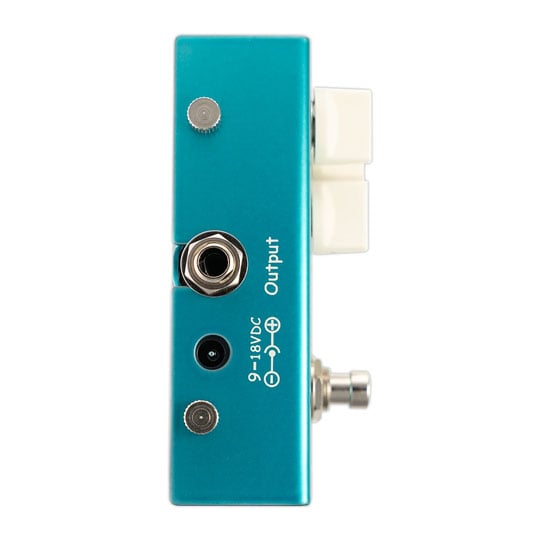

| Power Source | 9-18V DC power supply (sold separately) |
| Power Usage | 8mA |
| Batteries | 1 x 9V |
