Scan code: LN143167 Manufacturer code: FD-C-NOR1X-01

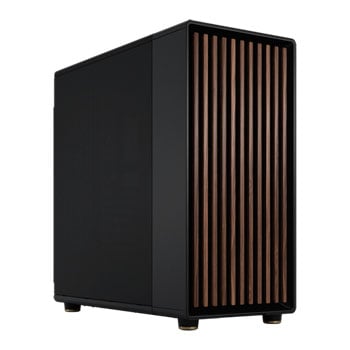

Fractal North XL Charcoal Mesh Side Panel Mid Tower PC Case

Fractal North XL Charcoal Mid Tower Chassis, Mesh Side Panel, 3x 140mm Fans, mITX/mATX/ATX/E-ATX (330mm)

Thumbnail 1 : Fractal North XL Charcoal Mesh Side Panel Mid Tower PC Case Thumbnail 2 : Fractal North XL Charcoal Mesh Side Panel Mid Tower PC Case Thumbnail 3 : Fractal North XL Charcoal Mesh Side Panel Mid Tower PC Case Thumbnail 4 : Fractal North XL Charcoal Mesh Side Panel Mid Tower PC Case
Scan code: LN143167 Manufacturer code: FD-C-NOR1X-01
Order now and get it tomorrow, Wed 24th Jul
£164.99
Get it Tomorrow, 24 JulIn stock
From £14.95 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £14.95
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £164.99
Total inc. interest: £179.35
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Fractal North XL Charcoal Mesh Side Panel Mid Tower PC Case

Fractal North XL

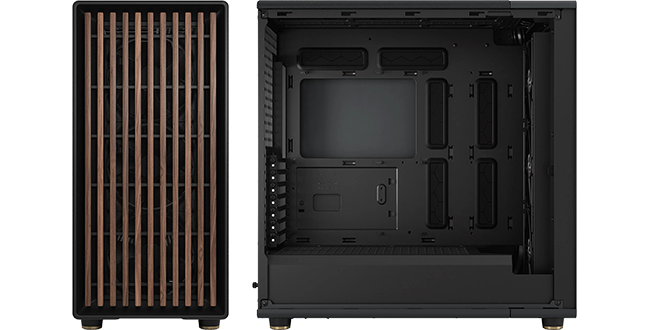

Transformative Design In A Generous Format The North XL offers a transformative take on the gaming PC case in a generous form factor. With fine-patterned mesh ventilation and an open front featuring FSC-certified wooden panel, the design of North XL makes it a stylish addition to any living space while helping components stay cool. The design is complemented by sleek brass or steel details and an integrated tab for easy access to the top of the case. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building aspirations and gaming experience.

3 x 140mmFans Included

7 x 120mm / 6x 140mmFan Bays

29mmCable Routing Space

Mid TowerForm Factor

Impressive Features of the Fractal North XL

DJI Air 3 Drone

Natural designEnjoy a sophisticated looking case which integrates effortlessly into your living space. Enhance your gaming station with an FSC-certified oak or walnut front, a faux leather tab and sleek steel or brass details.

DJI Air 3 Drone

Gaming readyChoose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator. Make the most of your build with a generous layout compatible with full E-ATX motherboards.

DJI Air 3 Drone

Extended coolingSupports front radiators up to 420mm and top radiators up to 360mm. Three Aspect 14 PWM fans preinstalled with room to expand up to a total of eight 140mm or nine 120mm fans.

DJI Air 3 Drone

Type-C interfaceThree front USB ports including one USB 3.1 Gen 2 Type-C with speeds up to 20Gbps.

DJI Air 3 Drone

Ventilated performanceNatural ventilation through an open front and a stylishly integrated mesh top panel. The mesh version of the case features a full mesh side panel in addition to the top.

DJI Air 3 Drone

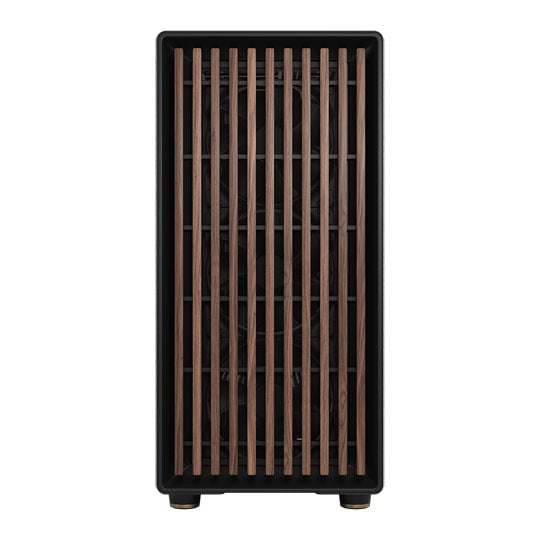

Naturally uniqueEnjoy a unique finish, with front panel bars cut from FSC-certified oak or walnut.

DJI Air 3 Drone

Easy accessRemove the side panels, unclip the front and pop off the top panel using an integrated tab.

DJI Air 3 Drone

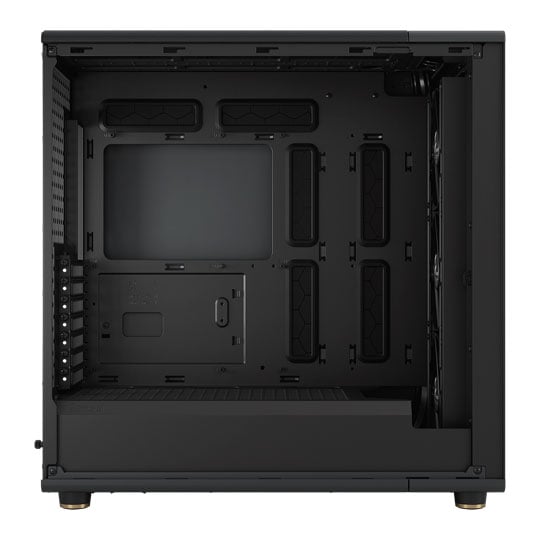

Build versatilityMake the most of your building experience with an intuitive interior layout. Designed for E-ATX / ATX / mATX / mITX motherboards.

Specifications
Core Chassis Specifications
Case Edition Fractal North XL Mesh - Charcoal
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX (330 mm)
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5" / 1x 2.5"
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 9 x 120mm / 8x 140mm
Fans Included 3 x 140mm
Fan Controller/Hub
Dust Filters
  • Front
  • PSU
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
  • 1 x 280/360mm
  • 1 x 360/420mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 155 with Fan Bracket / 185 w.o mm
Max GPU Card Length 413 with front fan mounted / 380 with 420/360 front mounted Rad mm
Cable Routing Space 29 mm
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 1 HDD Tray: 290 mm max / 2 HDD Tray: 175 mm max mm
Chassis Physical Specifications
Colour Charcoal
Chassis Construction Materials Steel
Dimensions 240 X 509 X 503 (WxHxD mm)
Weight 9.7 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN143167
Model Number FD-C-NOR1X-01
GTIN 7340172706533
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Fractal Design
