Fortin Mini ZUUL Noise Gate Pedal
Fortin - Mini ZUUL Noise Gate Pedal, Key In/Out, 2,3 or 4 Cable Method, True Bypass Switching
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

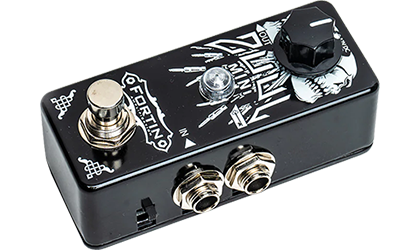

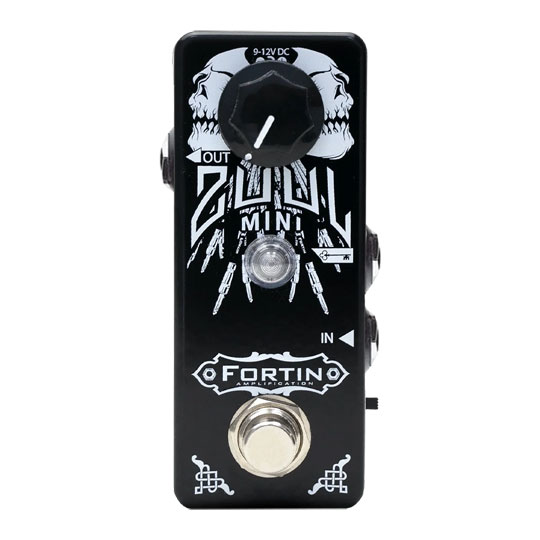

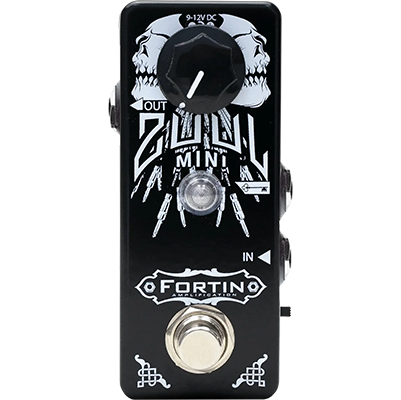

Fortin - Mini ZUUL Noise Gate Pedal
The same killer gate in a mini-form factor!The mini Zuul has all the same features as the original Zuul but in mini-form factor! The threshold knob also controls the dynamics of the gate circuit. Perfect for guitar, bass or any signal source because of the high quality studio specifications. Use in front of an amplifier or in a series effects loop. Dual colour LED for visual feedback gating action: Green = Open, Orange = Closed, Off = Bypass.
The KEY input signal can be directly from your guitar (r.e. split from Roach or Spliff) or other signal source which lets you go from clean to high gain without changing the Threshold knob. This powerful feature lets you control the gate with a different signal than what flows through the input/output jacks of the ZUUL. Side switch (internal jumper on early versions) to change the threshold range to compensate for different input signal levels. It also features industry standard true bypass switching.
Amazing Features
• Key In/Out for the ultimate control
• 2, 3 or 4 cable method
• True Bypass switching
• Highest grade materials selected for superior sound, response and reliability
• Industry Standard 3DPT true bypass mechanical stomp
• Proudly built in the U.S.A.
What Does the Key Input Do?
complete controlPlacing a gate after your gain stages can prove to be annoying as the gate is looking at the effected signal to try to work out when to open and/or close.
They Key In/Thru listens to what your instrument is doing only (as it is effectively first in the chain), and then opens and closes the gate according to your instrument and not any the floor noise, artifacts etc coming from your gain stages.
When the Key is used and triggered by your instrument, the gate itself is set after your gain stages and before any delay/reverb effects - this way you have complete control of your gate and it will not affect your other effects.
The Tech Spec
| Features | Specification | Power Supply | 9-12vDC, Center Pin Negative (fully regulated) |
|---|---|
| Power Draw | 40mA (9v) |
| Pedal Dimensions (W/D/H) | 3.6" x 1.5" x 1.2" (92.5mm x 38.5mm x 30.99mm) |
| Shipping Weight | 250g |
| Warranty | Includes Fortin’s limited 1-year warranty |
