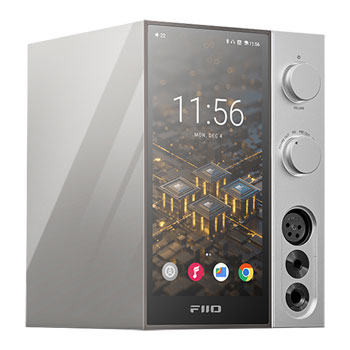

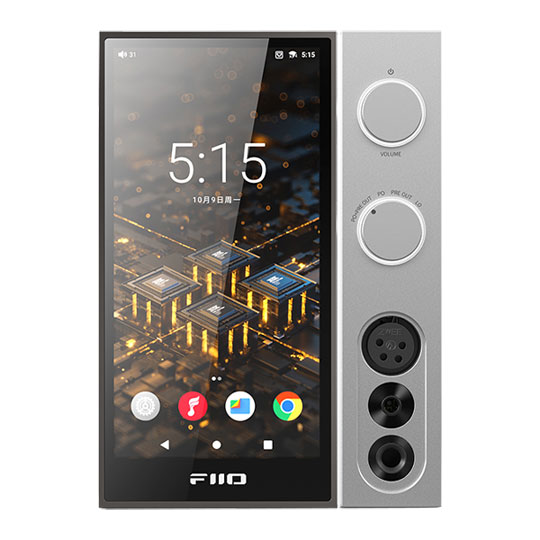

Flagship All-In-One Digital Media Streamer
FiiO - R9
upgraded hifi experienceThe FiiO R9 is an all-in-one digital media streamer that integrates flagship-level transmission/decoding/headphone amp/jukebox/preamp functionality into one device. Equipped with a wide variety of inputs and outputs and ten operating modes. The R9 features Android open OS, 6" FHD and a portrait screen, using a classic metal bicolour design found in luxury cars, the R9 is thoroughly upgraded inside and out, taking your desktop HiFi experience to the next level.

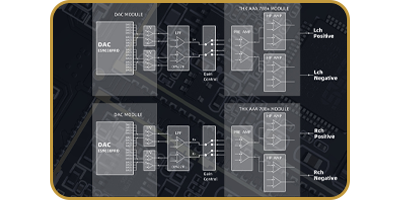

With the ES9038PRO having been used in the M17, Q7, K9 Pro SS and M15S, FiiO now have plenty of experience as the chip enables it to push audio quality to new heights. The R9 features two ES9038PRO DACs, one each for the left and right channels. Each DAC chip contains 8 independent D/A converters, and these 8 channels are connected in parallel for a completely differential output. Resulting in a precise, clear and full sound.
Amazing Features
• High-end 8-channel ES9038PRO*2 + 8-channel THX AAA 788+
• Separated analogue and digital power supplies
• Supports HDMI ARC/Roon Ready mode
• Fully-connected HiFi audio architecture
• DC/AC dual power supply design
• Finely-divided analogue portion
• 7300mW power output
• 6" FHD portrait display

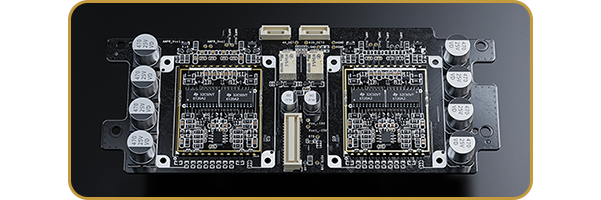

Next-Gen THX AAA 788+ Headphone Amplifier

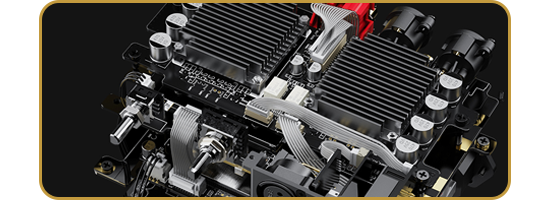

fully balanced designInside the R9 is an 8-channel THX AAA 788+ headphone amplifier design. These headphone amps are fed by a high-voltage power supply, and connected in parallel via 2x2 groups for a four-way fully balanced design, greatly enhancing transient performance. The comb-shaped heat sinks and optimized circuit layout dissipate heat efficiently, ensuring the R9 is capable of continuous and stable high-power output. The result means that the R9 is capable of outputting 7300mW per channel at 32Ω, 102% higher than that of R7.
Fully-Connected HiFi Audio Architecture
Pristine listeningThe R9's impressive audio performance is powered by its five-stage audio architecture with carefully-crafted IV, LPF, gain, pre-amplification, and current expansion stages. An important part of the audio circuit is the OPA2211 op-amps, made through the silicon-germanium (SiGe) CMOS manufacturing process that ensures the chip's excellent performance.
The variable gain and variable power supply voltage design provide 5 levels of gain, allowing you to accurately dial in your desired listening volume. If you're using IEMs or hard-to-drive headphones, you will get a truly stunning listening experience regardless.

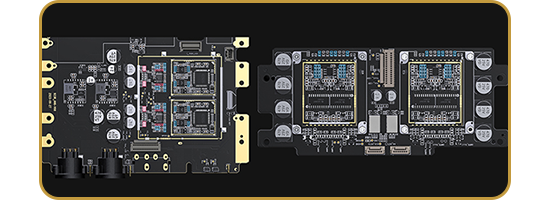

Carefully-Designed PCB

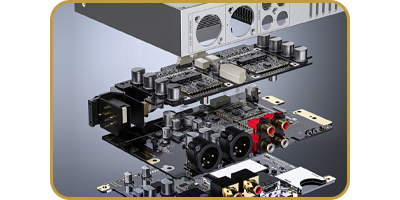

Every Inch ConsideredThe R9's internal power supply, digital portions, DAC, and headphone amplifier all reside on separate boards. There are also metal shields to fully isolate the DAC and THX headphone amp sections.
These four major parts of the audio circuit are separated into independent boards to avoid crosstalk, which further ensures that the audio signals being processed and their output are accurate, clean, and retain their dynamics.

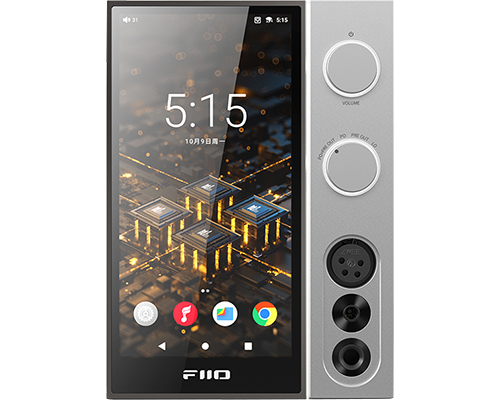

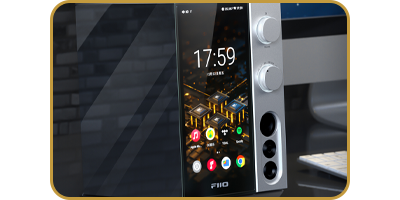

Large 6-inch HD screen
user-friendlyThe R9 features a tall 6-inch 2160*1080 vertical (portrait) screen combined with the open Android OS for a thoroughly intuitive experience.
The open Android OS not only allows the user to freely install and use third-party streaming music and other apps, it is also thoroughly refined so that the user does not have to worry about app compatibility problems.
Highly-Efficient

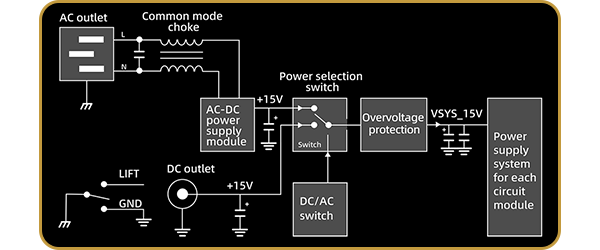

Finely tuned power supply circuitBuilt into the R9 is a new 40W low-noise, high-efficiency, long-lasting industrial-grade power supply, supporting an ultra-wide range of input voltages (85~305VAC) and capable of operating under a wide range of temperatures (-40℃~85℃) as well as rated for lasting 500,000 hours. The R9 can also be powered by an external DC power supply, allowing you to pair the R9 with a high-performance linear power supply that offers its own sound. When the R9 is paired with an external AC power supply, you can choose to enable the "Ground Lift" functionality to reduce crosstalk for purer sound.

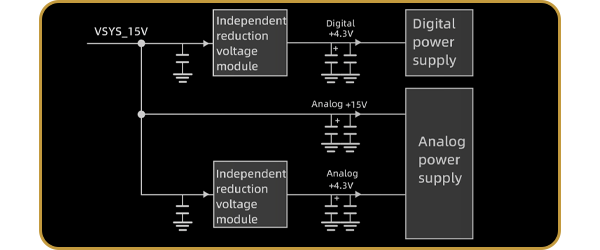

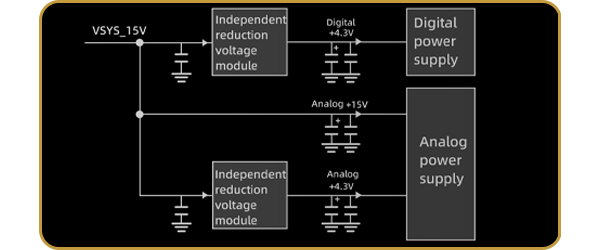

Separate analogue and digital power suppliesThe R9 features separate power supplies for the digital and analogue sections of the audio circuit, avoiding crosstalk between the digital/analogue parts and achieving better isolation and shielding between the two sections.
Finely-divided analogue portionThe analogue part of the audio circuit features a finely-divided multiple-stage power supply, including digital-to-analogue conversion, LPF, pre-stage processing, amplification drive and other power supply stages. Each power supply stage uses many precision LDOs for secondary voltage stabilization, further ensuring a clean and stable supply of power.
Industry-Leading Components

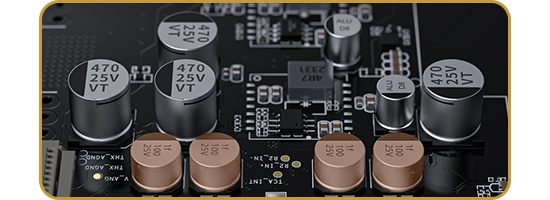

low-noise film capacitors and resistorsLow temperature drift and low noise regardless of temperature variations, ensure stable high-quality sound in both hot or cold environments.
ELNA electrolytic capacitorsThese capacitors allow for improved soundstage and better overall sound quality.
5 x connecting silver-plated oxygen-free copper wiresSilver-plated oxygen-free copper wires are used to connect the various boards, ensuring high-fidelity signal transmission with minimal loss.

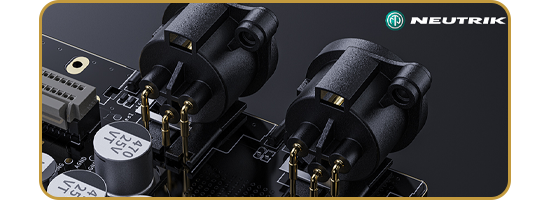

Neutrik gold-plated plugTulip-shaped design with anti-oxidation properties and is durable over many unplugs - allowing for reliable and stable connections.
Globally High Resolution

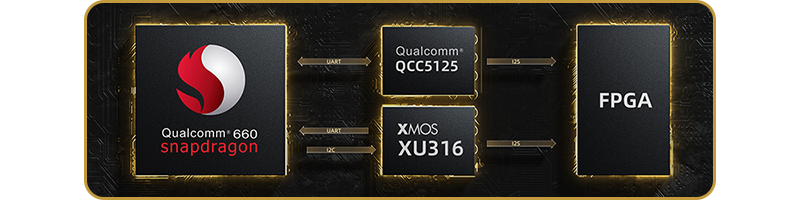

Qualcomm Snapdragon 660With several years worth of experience in fine-tuning this "core" combined with the open Android system, FIIO offers a silky-smooth experience on the R9.
XMOS 16 core XU316High performance, low latency, supports 768kHz/32bit and DSD512.
Qualcomm QCC5125Many codecs supported, Bluetooth reception supports LDAC/aptX Adaptive/aptX LL/aptX HD/aptX/AAC/SBC.

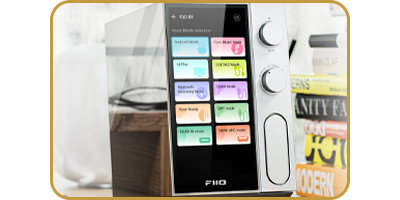

Ten Operating Modes
10/10 experienceAndroid mode: Freely use 3rd party apps, enjoy major music streaming apps. Pure tone mode: Exclusive FIIO Pure Music mode, for truly immersive music. USB DAC mode: Connect to a computer/smartphone, to greatly improve their sound. Bluetooth receiver mode: Supports aptX adaptive/LDAC and other codecs, for convenient high-quality sound. AirPlay mode: Wirelessly connect to iPhone/iPad and other iOS devices, for improved sound quality. Roon Ready mode: Roon Ready certified, a must for serious music players. Coaxial/optical input modes: By being able to accept coaxial/optical inputs, the R9 transforms into a high-end audio decoder. HDMI input mode: Supports audio input from devices like game consoles/Blu-ray players/set-top boxes. HDMI ARC Mode: Supports audio return from devices like TVs/projectors.
Four Output Modes
more convnienceLet the R9 become the heart of your HiFi desktop setup, connecting to both headphones and speakers simultaneously.

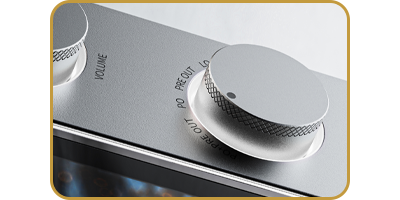

You can seamlessly switch between headphones for speaker outputs with just a twist of a knob, making it more convenient for you to listen to whichever is more comfortable.
Classic Metallic Bicolour Scheme
sleek aestheticsThe R9 uses a unique metallic dual colour scheme inspired by luxury cars, presenting an extraordinary flagship texture. The body-coloured 4H PET is attached to its body as a protective layer that also helps to prevent fingerprints and scratches from building up on it.
Additionally, the high-density metal body is more robust and stable, helping to effectively reduce deformation and minimize degradation in sound performance caused by vibrations, thus ensuring stable delivery of high-quality music.
The Tech Spec
| Features | Specification | Headphone Amplification | 8-channel THX AAA-788+ |
|---|---|
| DAC | Dual 8-channel ESS Sabre ES9038PRO |
| Connectivity (wireless) | 2.4GHz/5GHz Wi-Fi, Bluetooth 5.0 (aptX HD and LDAC), 768kHz/32-bit hi-res audio, Tidal Connect, DSD512, MQA, Roon-ready, Google Play Store OS |
| Connectivity (wired) | 6.35mm, 4.4mm and 4-pin XLR headphone ports, 3-pin balanced XLR line out, 2x RCA line outs, coaxial in/out, optical in/out, HDMI in, HDMI out (ARC), USB host, USB-C |
| Power | 7300mW |
| Storage | 64GB (expandable with micro SD card slot) |
| Other features | 6-inch Full HD touch-screen display, Android OS |
| Weight | 2.3kg |
